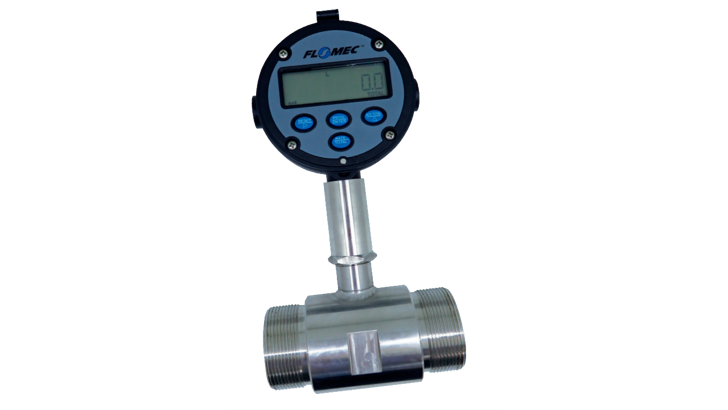

TP Series Turbine Flowmeters

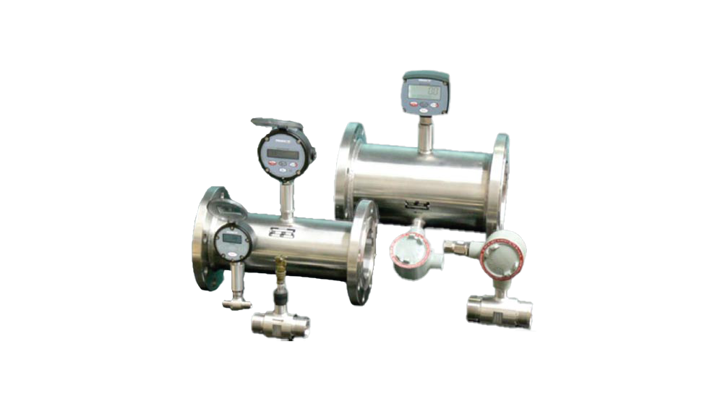

Turbine Flowmeters (TP Series)

The Flomec TP Series Flowmeters measures flows of low viscosity liquids (0.5 – 1200 gallons/min or 1.8 – 4500 litres/min) in a range of sizes. The TP Series Flowmeters are available with hazardous area ATEX and IECEx, and Intrinsically Safe (IS) certifications.

Features:

High accuracy and repeatability, direct reading flowmeter
Wide flow range
Rugged and compact design
IS hazardous area versions available
Integral 4-20mA option

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Highly Accurate and Repeatable

The Turbo Pulse Turbine Flowmeters from the TP series are designed to last and has following features that benefits you:

Direct reading on flowmeter gives high accuracy and repeatability
Wide flow range
Rugged and compact design
IS hazardous area versions available
Integral 4-20mA option available

Typical Applications

The TP series is applicable in various purposes including:

Fuel
Alcohols
Solvents
Insecticides
Water
Light Hydraulic Oils.

Does it match your need - contact us here

Do you need a meter that measure independent on viscosity changes?

With this type of flow meter a turbine rotates and with the help of a magnet in one of the turbine blades, a sensor can count the revolutions.

This meter is not, like a displacement meter, independent of viscosity changes - on the contrary. The pulse factor changes with viscosity (temperature dependent) as the properties of the turbine change with the changed characteristics of the liquid.

This measurement principle will also depend on a symmetrical flow profile, that is, requirements for straight piping before and after the meter.

However, under the right circumstances, turbine wheel gauges can be very accurate and are used as settling-approved gauges in the oil industry, partly because of the low pressure loss.

See all Turbine Meters Here

Choose the right Turbine Flowmeter

Selecting the correct size for your FLOMEC TP Series turbine flowmeter is essential for achieving optimal performance and accurate measurements. The right meter size depends on your application’s flow rate, pressure, and fluid properties.

Choosing a meter that matches the typical operating flow range ensures accuracy and longevity, while selecting an oversized meter can reduce sensitivity at low flows, and an undersized meter may cause excessive pressure drop.

FLOMEC® TP Series Flowmeters

Product Configuration

PRODUCT IDENTIFIER [1]
TP010 = ½ inch (15mm) 0.5-5 GPM (1.8-18 L/min)
TP012 = ¾ inch (20mm) 1-10 GPM (3.8-37.9 L/min)
TP015 = ¾ inch (20mm) 1.8-18 GPM (6.7-67 L/min)
TP020 = ¾ inch (20mm) 3.6-36 GPM (13-130 L/min)
TP025 = 1 inch (25mm) 7-70 GPM (27-270 L/min)
TP040 = 1 ½ inch (40mm) 15-150 GPM (57-570 L/min)
TP050 = 2 inch (50mm) 30-300 GPM (113-1130 L/min)
TP080 = 3 inch (80mm) 60-600 GPM (225-2250 L/min)
TP0100 = 4 inch (100mm) 120-1200 GPM (450-4500 L/min)
TP0150 = 6 inch (150mm) 242-2420 GPM (916-9160 L/min)

BODY MATERIAL [2]
S = 316 Stainless Steel - 3500 psi (250 bar) max.

PROCESS CONNECTIONS [3]
1T1 = BSPP male threaded / One
2T1 = NPT male threaded / One
4C1 = ANSI-150 RF flanges (Carbon Steel) / One
4S1 = ANSI-150 RF flanges (316SS) / One
5C1 = ANSI-300 RF flanges (Carbon Steel) / One
5S1 = ANSI-300 RF flanges (316SS) / One
7C1 = PN16 DIN flanges (Carbon Steel) / One
7S1 = PN16 DIN flanges (316SS) / One

ELECTRICAL CONNECTION [4]
-1 = Military Style Connector (required for no electrical option)
-2 = Flying Leads (required for electrical options)

PICK-OFF TYPE [5]
11 = Standard (250o F [120o C] max.)
21 = High Temp (450o F [232o C] max.)
31 = ATEX/IECEx approved intrinsically safe 250o F [120o C] max.) (only available with R6, F19 or No Electrical Option)
51 = Amplified (5-30V (dc) supply tracking pulse) 250o F [120o C] max.)

ELECTRICAL OPTIONS [6]
Blank = No Electrical Option
JB = Junction Box
R4 = RT40 Backlit Rate Totalizer (Alloy housing with facia protector) (Requires Pick-off Type 11)
R5 = RT14 Backlit Rate Totalizer with scaled pulse, alarms and 4-20mA (GRN housing) (Requires Pick-off Type 11)
R6 = RT14 IECEx/ATEX Intrinsically Safe Rate Totalizer with 4-20mA and Pulse Outputs (GRN housing) (Requires Pickoff Type 31)
R7 = RT40 Backlit Rate Totalizer (GRN housing with facia protector) (Requires Pick-off Type 11)
F18 = F018 Backlit Rate Totalizer with 4-20mA and Pulse Outputs, and HART (Requires Pick-off Type 11)
F19 = IECEx/ATEX Backlit Rate Totalizer with 4-20mA and Pulse Outputs, and HART (Requires Pick-off Type 31)

CALIBRATION [7]
Blank = Display in Liters (DEFAULT)
G = Display in U.S. Gallons

FAQ

What fluids can the TP Series measure?

The FLOMEC TP Series is designed for clean, low-viscosity fluids such as fuels, solvents, and water-based solutions. Ensure compatibility with wetted materials to avoid damage or measurement inaccuracies.

What is the accuracy of the TP Series flow meter?

The TP Series provides high accuracy, typically within ±0.5% of reading when installed and calibrated correctly. A repeatability of ±0.1% ensures consistent measurement performance.

Can I install the flow meter in any orientation?

For best results, install the meter in a horizontal pipeline with a stable flow profile. Ensure proper inlet and outlet piping lengths to minimize turbulence and improve accuracy.

Does the meter require regular maintenance?

Routine maintenance includes keeping the meter clean and checking for wear on moving parts. Regular calibration may be needed for critical applications to maintain accuracy over time.

Can the TP Series handle high-pressure applications?

Yes, the TP Series is available in different pressure ratings, with some models handling up to 414 bar (6000 psi). Always check the datasheet to confirm suitability for your system’s pressure conditions.

What output options are available for data monitoring?

The TP Series supports pulse outputs for integration with remote monitoring systems. Some models may include optional electronic displays or additional signal outputs for enhanced data collection.

How do I ensure long-term performance?

Proper installation, routine maintenance, and ensuring fluid compatibility will maximize the meter’s lifespan. Avoid excessive wear by operating within the recommended flow range.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Technical Specifications
Suits Pipe Sizes	1/2" (15mm) - 6" (150mm)
Pipe connections	NPT BSP ANSI #150 ANSI #300 PN16 DIN Threaded meters available for ½ – 2" only
Accuracy (@ cP)	± 0.5% of reading
Viscosity Range	0.5 - 10cP
Temperature Range	-40° F to +450° F (-40° C to +232° C) With high temperature pickup option
Wetted Materials	316SS Bearing support & body, 431SS rotor, Tungsten Carbide bearing
Pressure	Max 3625 psi (250 bar)
Protection Class	P66/67 (NEMA4X), optional I.S. (Intrinsically Safe) Integral options

Model/ Type
Product Identifier	TP010: ½ inch (15mm) 0.5-5 GPM (1.8-18 L/min) TP012: ¾ inch (20mm) 1-10 GPM (3.8-37.9 L/min) TP015: ¾ inch (20mm) 1.8-18 GPM (6.7-67 L/min) TP020: ¾ inch (20mm) 3.6-36 GPM (13-130 L/min) TP025: 1 inch (25mm) 7-70 GPM (27-270 L/min) TP040: 1 ½ inch (40mm) 15-150 GPM (57-570 L/min) TP050: 2 inch (50mm) 30-300 GPM (113-1130 L/min) TP080: 3 inch (80mm) 60-600 GPM (225-2250 L/min) TP0100: 4 inch (100mm) 120-1200 GPM (450-4500 L/min) TP0150: 6 inch (150mm) 242-2420 GPM (916-9160 L/min)
Body Material	S: 316 Stainless Steel - 3500 psi (250 bar) max.
Process connections	1T1: BSPP male threaded / One 2T1: NPT male threaded / One 4C1: ANSI-150 RF flanges (Carbon Steel) / One 4S1: ANSI-150 RF flanges (316SS) / One 5C1: ANSI-300 RF flanges (Carbon Steel) / One 5S1: ANSI-300 RF flanges (316SS) / One 7C1: PN16 DIN flanges (Carbon Steel) / One 7S1: PN16 DIN flanges (316SS) / One
Electrical connection	-1: Military Style Connector (required for no electrical option) -2: Flying Leads (required for electrical options)
Pick-off type	11: Standard (250o F [120o C] max.) 21: High Temp (450o F [232o C] max.) 31: ATEX/IECEx approved intrinsically safe 250o F [120o C] max.) (only available with R6, F19 or No Electrical Option) 51: Amplified (5-30V (dc) supply tracking pulse) 250o F [120o C] max.)
Electrical Options	Blank: No Electrical Option JB: Junction Box R4: RT40 Backlit Rate Totalizer (Alloy housing with facia protector) (Requires Pick-off Type 11) R5: RT14 Backlit Rate Totalizer with scaled pulse, alarms and 4-20mA (GRN housing) (Requires Pick-off Type 11) R6: RT14 IECEx/ATEX Intrinsically Safe Rate Totalizer with 4-20mA and Pulse Outputs (GRN housing) (Requires Pickoff Type 31) R7: RT40 Backlit Rate Totalizer (GRN housing with facia protector) (Requires Pick-off Type 11) F18: F018 Backlit Rate Totalizer with 4-20mA and Pulse Outputs, and HART (Requires Pick-off Type 11) F19: IECEx/ATEX Backlit Rate Totalizer with 4-20mA and Pulse Outputs, and HART (Requires Pick-off Type 31
Calibration	Blank: Display in Liters (DEFAULT) G: Display in U.S. Gallons

Specifications & Manuals

Data Sheet - TP Series Turbine Flow Meters - Flomec
English | pdf

Download
