A1 Series Flomec 1024 Square

Commercial Grade Meters (A1 Series)

The Commercial Grade Meters in the A1 Series from Flomec are designed as a self-contained and battery-powered unit. All the flowmeters now come with a Q9 Display and is the perfect flowmeter if you need an accurate and basic meter.

Benefits:

  • Unique package combines Turbine and LCD into a self-contained, compact, economical meter
  • Local Display Computer features: 2 Non-Volatile Totals and Rate of Flow
  • Output capabilities available to communicate with process control equipment

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Contact us now

Economical Meter that is Easy to Install

The Commercial Grade Meters from the A1 series has the following features that benefits you:

  • A self-contained, compact, and economical meter because of package combining Turbine and LCD
  • 2 Totals (1 Resettable, 1 Cumulative); Rate of Flow and User Configuration in local Display Computer
  • Output capabilities available to communicate with process control equipment
  • Lightweight and compact design allows for easy installation
  • Alkaline battery life: 2 years
  • Factory calibration in gallons and litres (possibility of calibration to other fluids).
A1 Series Flomec 1024X16x9

Typical Applications

The A1 series is applicable in various purposes including:

  • Fuel Transfer
  • Plant Process Water
  • Batching / Blending
  • Fuel Products (Aluminum model)
  • Water / Non-aggressive Chemicals (Nylon model)
  • Ag Chemicals
  • Solvents / Glycol
  • Chemical Feed Lines.

Does it match your need - contact us here

Material options

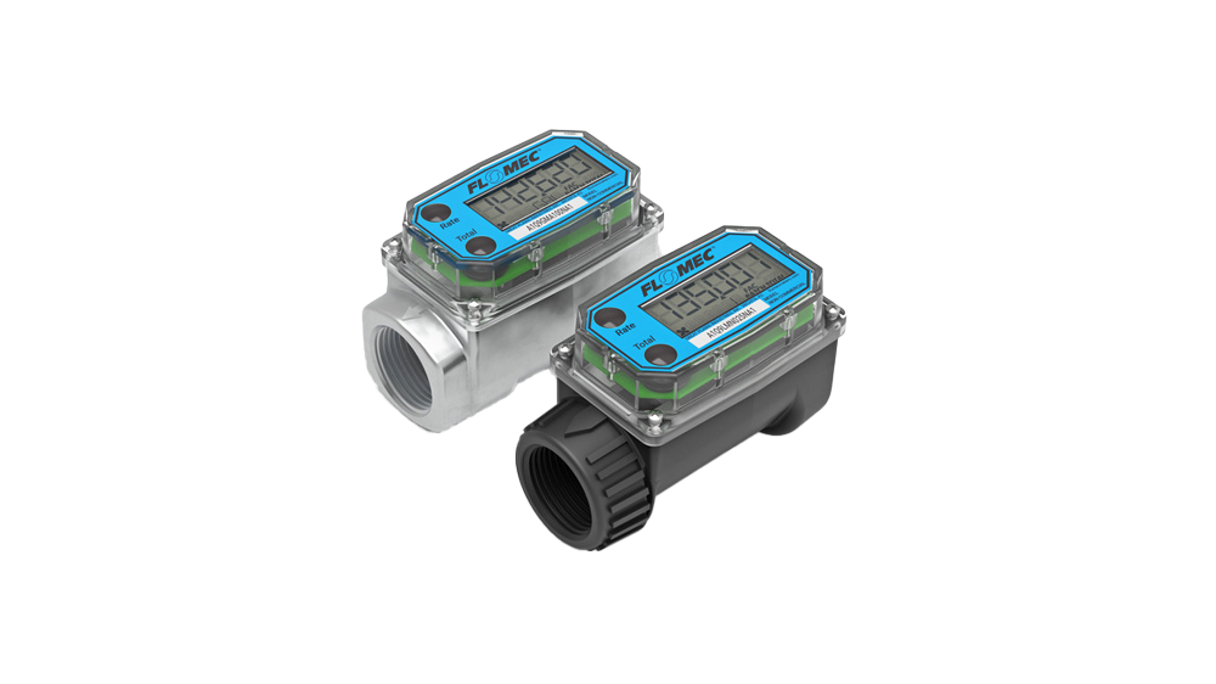

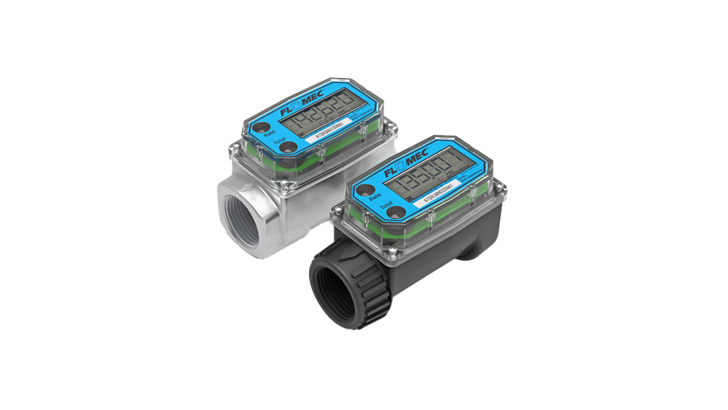

This series is available in Aluminum or Nylon:

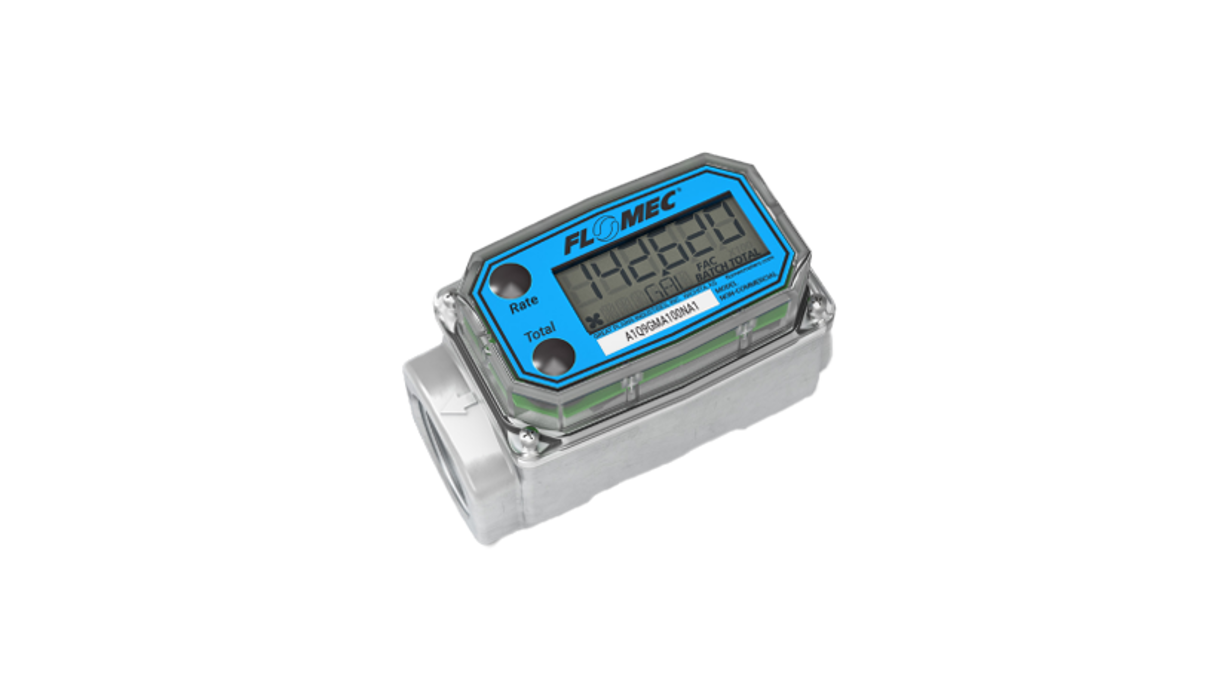

  • Aluminum model is available in three sizes and the model can be used for petroleum products

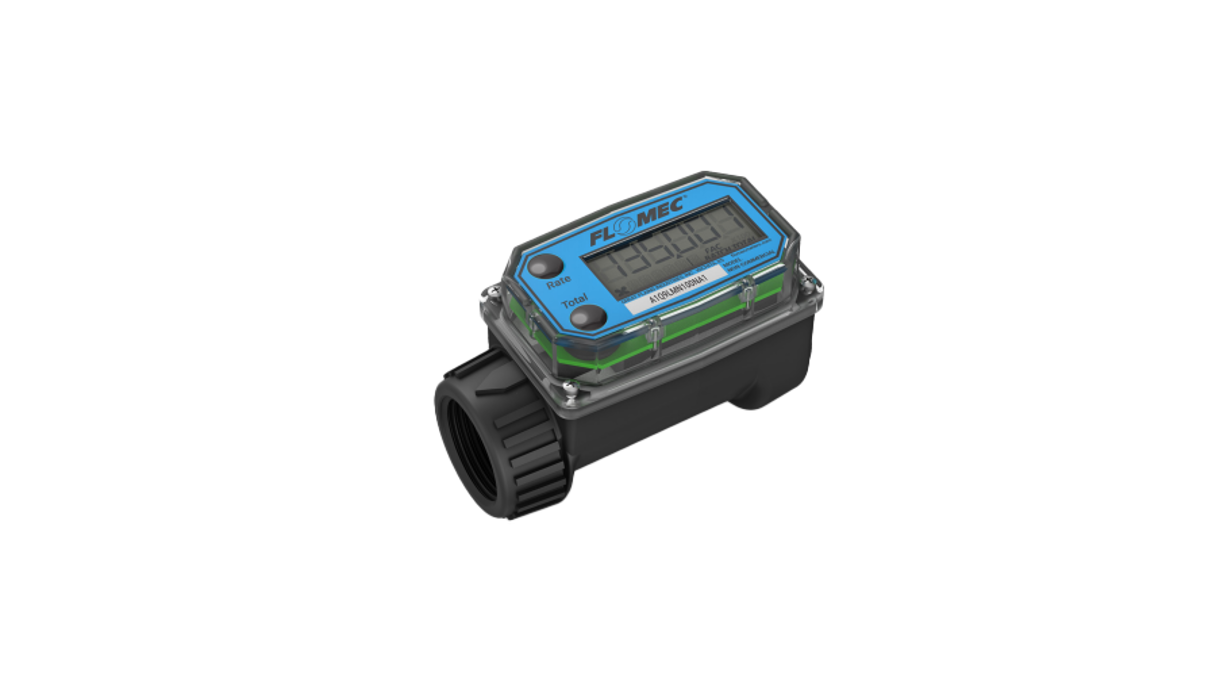

  • Nylon meter can be used in water or non-aggressive chemical applications.

Get more information here

A1 Series Nylon Flomec 1024X16x9
A1 Series Flomec 1024X16x9
A1 Series Alumminium Flomec 1024X16x9
A1 Series Nylon Flomec 1024X16x9
A1 Series Flomec 1024X16x9
A1 Series Alumminium Flomec 1024X16x9
A1 Series Nylon Flomec 1024X16x9

Choose the right turbine model

The internal roto in the turbine housing is spinning when liquid flows through. An electrical signal is created in the pickup oil when the rotor spins. This is the electrical signal that provides the necessary output to be able to operate the on-boad computer electronics. This display gives you a local indication directly on the turbine. Other accessory modules are also available so you can transmit the signal to external equipment.

The turbine is a precision measuring instrument, but for this work optimal you have to make sure that the turbine model meets your particular requirements. Look into the following three parameters, that;

  1. The flowrate is within the limits of your model
  2. The liquid is compatible with the turbine’s wetted components
  3. The system’s pressure does not exceed the turbine’s maximum pressure rating.

See all Turbine Meters here

A1 Series Alumminium Flomec 1024X16x9

FLOMEC® A1 Series Meters

Product Configuration

PRODUCT IDENTIFIER [1]
A1 = Electronic Digital Meter

ELECTRONIC CHOICE [2]
Computer Display, Meter Mounted
Q9 = Q9 2-Button Computer
Computer Display & Module, Meter Mounted*
P9 = Q9 2-Button Computer w/Pulse Out Module, includes External Power and 10 ft. of Cable
42 = Q9 2-Button Computer w/4-20mA Module and 10 ft. of Cable
Module, Meter Mounted (No Display)*
PO = Pulse Out (Unscaled) Conditioned Signal Module w/Cable
Retrofit Computer Kit (Display Only)
R9 = Q9 2-Button Computer Retrofit Kit (Replaces 09 Display)
No Electronics - Turbine Only
XX = No Electronics - Turbine Only
*All Electronics Approvals Void

CALIBRATION [3]
GM = Factory Default Calibration in Gallons
LM = Factory Default Calibration in Liters
XX = No Computer

TURBINE SIZE [4]
N025 = Nylon - Low Flow
N100 = Nylon - 1 inch
X### = No Turbine**

A025 = Aluminum - Low Flow
A100 = Aluminum - 1 inch
A200 = Aluminum - 2 inch
X### = No Turbine**
**When ordering Display Only, the ### should be the turbine size.

FITTING TYPE [5]
N = NPT (Female)
I = ISO (Female) BSPT
X = No Turbine

PACKAGING [6]
With FM, ATEX & IEC Approval for HAZARDOUS AREA
A1 = Standard or Low Flow, 1 inch (w/Q9 & R9 Electronics Choice)
A2 = Standard, 2 inch (w/Q9 & R9 Electronics Choice)
B1 = Standard or Low Flow, 1 inch Turbine Only
B3 = Display Only
Non-Approved Version - SAFE AREA ONLY
C2 = Low Flow and 1 inch Turbines (w/P9, 42, & PO Electronics Choice)
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications for Aluminum Option
Meter Size Available
  • A025: (Low Flow)
  • A100: (1 inch)
  • A200: (2 inch)
Design Type
  • A025: Paddlewheel
  • A100: Turbine
  • A200: Turbine
Fitting Size/ Fitting Type:
  • A025: 1 inch / NPT, ISO+ or BSPP (Female)
  • A100: 1 inch / NPT, ISO+ or BSPP (Female)
  • A200: 2 inch / NPT, ISO+
Flow range

0,3 GPM(1 L/min) - 300 GPM(1135 L/min)
Accuracy (% of Reading)
  • A025: Application Dependent (see Note 1)
  • A100, A200: ± 1.5%
Repeatability
  • A025: ± 1.0%
  • A100: ± 0.2%
  • A200: ± 0.2%
Pressure Rating (Aluminum)

300 psi (21 bar)
Operating Temperature Range
  • -40° F to 250° F (-40° C to 121° C)
  • with Safe Area Only Display: 0° F to 140° F (-18° C to 60° C)
  • with Intrinsically Safe Display: 0° F to 129° F (-18° C to 54° C)
Typical K-Factor
  • A025: 2200 PPG (581 Pulses/L)
  • A100: 730 PPG (193 Pulses/L)
  • A200: 72 PPG (19 Pulses/L)
Frequency Range
  • A025: 11-110 Hz @ 0.3-3 GPM (1-11 L/min)
  • A100: 36.5-608.3 Hz @ 3-50 GPM (11-190 L/min)
  • A200: 36-360 Hz @ 30-300 GPM (114-1135 L/min)
Recommended Strainer Size
  • A025: 55 mesh (275 μm)
  • A100: 28 mesh (700 μm)
  • A200: 28 mesh (700 μm)
Wetted Materials (Aluminum)
  • Housing: Aluminum
  • Bearings: Ceramic (96% Alumina)
  • Shaft: Tungsten Carbide
  • Rotor: Nylon
  • Rings: 316 Stainless Steel
Calibration Report
  • Comes standard with A1 Series meters
  • N.I.S.T. – Certification available.
Notes

Note 1: Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy
Technical Specifications for Nylon Option
Meter Size Available
  • N025: (Low Flow)
  • N100: (1 inch)
Design Type
  • N025: Paddlewheel
  • N100: Turbine
Fitting Size/ Fitting Type:
  • N025: 1 inch / NPT, ISO+ or BSPP (Female)
  • N100: 1 inch / NPT, ISO+ or BSPP (Female)
Flow range

0,3 GPM(1 L/min) - 50 GPM(190 L/min)
Accuracy (% of Reading)
  • N025: Application Dependent (see Note 1)
  • N100: ± 1.5%
Repeatability
  • N025: ± 1.0%
  • N100: ± 0.2%
Pressure Rating (Nylon)

150 psi (10.3 bar)
Operating Temperature Range
  • -40° F to 250° F (-40° C to 121° C)
  • with Safe Area Only Display: 0° F to 140° F (-18° C to 60° C)
  • with Intrinsically Safe Display: 0° F to 129° F (-18° C to 54° C)
Typical K-Factor
  • N025: 2200 PPG (581 Pulses/L)
  • N100: 730 PPG (193 Pulses/L)
Frequency Range
  • N025: 11-110 Hz @ 0.3-3 GPM (1-11 L/min)
  • N100: 36.5-608.3 Hz @ 3-50 GPM (11-190 L/min)
Recommended Strainer Size
  • N025: 55 mesh (275 μm)
  • N100: 28 mesh (700 μm)
Wetted Materials (Nylon)
  • Housing: Nylon
  • Bearings: Ceramic (96% Alumina)
  • Shaft: Tungsten Carbide
  • Rotor: Nylon
  • Rings: 316 Stainless Steel
Calibration Report
  • Comes standard with A1 Series meters
  • N.I.S.T. – Certification available.
Notes

Note 1: Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy
Model/ Type
Product Identifier

A1: A1 Series Turbine Meters
Electronic Choice

Local Computer w/Display, Meter Mounted

  • Q9: Q9 2-Button Computer

Local Computer w/Display & Module, Meter Mounted

  • P9: Q9 2-Button Computer w/Scaled Pulse Out Module, includes External Power and 10 ft. of Cable 934
  • 42: Q9 2-Button Computer w/4-20mA Module, includes Scaled Pulse Out and 10 ft. of Cable

Module, meter mounted (No Display)

  • PO: Pulse Out (unscaled) Conditioned Signal Module w/Cable

Retrofit Computer Kit (Display Only)

  • R9: Q9 2-Button Computer Retrofit Kit (Replaces 09 Display)

No Electronics-Turbine Only

  • XX: No Electronics-Turbine Only
Calibration of Computer/ Display
  • GM: Gallons Per Minute (For Use With Q9, Q1, R9 Electronics)
  • LM: Liters Per Minute (For Use With Q9, Q1, R9 Electronics)
  • XX: No Calibration (Use with XX Electronics Choice Only)
Turbine Material and Size
  • A025: Aluminum - Low Flow
  • A100: Aluminum - 1 inch
  • A200: Aluminum - 2 inch
  • N025: Nylon - Low Flow
  • N100: Nylon - 1 inch
  • X###: No Turbine (Specify Turbine Housing size in place of the # # #).
Fitting Type
  • N: NPT (Female)
  • I: ISO Taper (Female) ISO 7
  • B: BSPP (Female) (A025 & A100 models only) (ISO 228)
  • X: No Turbin
Packaging

With FM, ATEX & IEC Approval for HAZARDOUS AREA

  • A1: Standard or Low Flow, 1 inch (w/Q9 & R9 Electronics Choice)
  • A2: Standard, 2 inch (w/Q9 & R9 Electronics Choice) 38
  • B1: Standard or Low Flow, 1 inch Turbine Only 38
  • B2: Standard, 2 inch Turbine Only 38
  • B3: Display Only

Non-Approved Version - SAFE AREA ONLY

  • C2: All Sizes with P9, 42, PO Electronics

Specifications & Manuals

  • Data Sheet - A1 Series Aluminium Option - Flomec
    English | pdf
  • Data Sheet - A1 Series Nylon Option - Flomec
    English | pdf
  • Owners Manual - A1 Series - Flomec
    English | pdf
  • Owners Manual - Q9 Display Agency-Approved - Flomec
    English | pdf
  • Owners Manual - Q9 Display Non-Agency Approved - Flomec
    English | pdf
  • Owners Manual - 4-20mA Output Module - Flomec
    English | pdf
  • Owners Manual - Pulse Access/ External Power/ Scaled Pulse Output Module - Flomec
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
