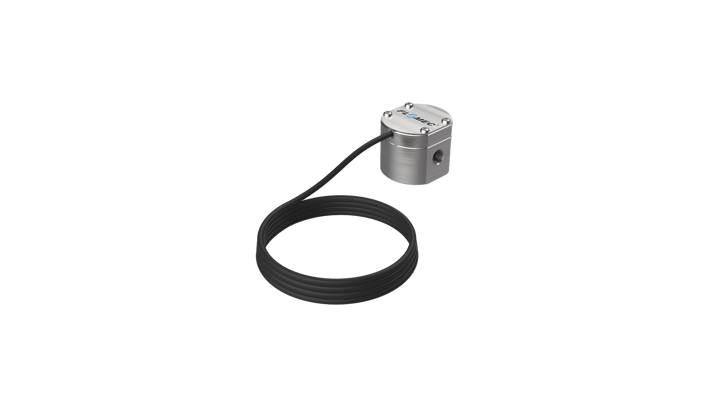

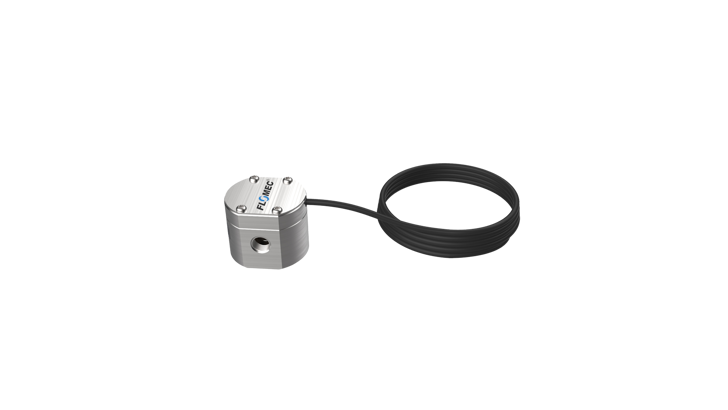

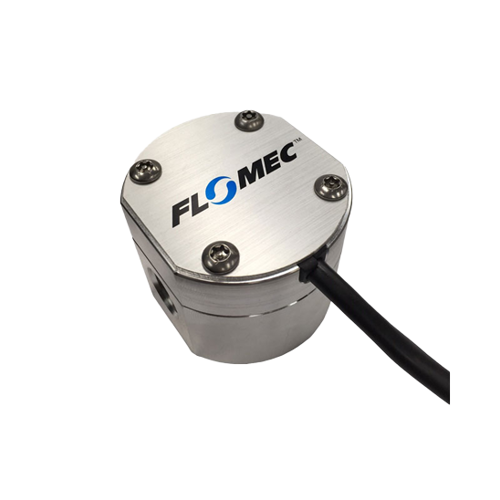

Electronic Flowmeter (EGM series)

EMG-Series pulse meters are designed for volumetric flow measurement of clean liquids across a broad range of applications from the maritime to the pharmaceutical industries.
Furthermore, these flowmeters are accurate, inexpensive in procurement, installation and maintenance.

More advantages:

Direct volumetric reading, which gives high accuracy and repeatability
Temperature and viscosity changes does not affect accuracy
Measures liquids both of high and low viscosity
No requirements for flow conditioning
Only two moving parts.

For sales or commercial inquiries please contact us at marine@insatech.com.

Typical Applications
Aluminum meter with PPS rotors	Oils Greases Fuels Fuel Oils.
Aluminum meter with SS rotors and Bronze bearings	Fuels with high Benzene content Automotive Brake Fluid Solvents such as Turpentine.
Stainless Steel meter	Alcohols Water-based Liquids Some Aggressive Liquids AdBlue (DEF Urea) Fuel and Oil applications in saline marine environments.

Usage in the maritime industry

Flomec EGM-series is especially suitable for flow measurement / dosing of more viscous liquids such as oils, fuels and bunker C Fuel Oil.

Measure your fuel consumption

For an application such as fuel supply to a surplus dosing engine, both flow and return flow must be measured to achieve net consumption.

In addition, the temperature must be measured for volume compensation. For this we also provide temperature sensors and flow computers with standard API / ASTM tables defining the different fuel types.

Setting up a system using the EGM-series flowmeter provide you with an accurate and reliable measurement of its fuel consumption.

Get more information here

High accuracy and repeatability

The EGM-series oval gear meters is a precise positive displacement flowmeters incorporating a pair of
oval geared rotors. The meters are, therefore, independent of viscosity and density, which means that the same high accuracy is obtained regardless of changes in the physical parameters.

Thus, the EGM-Series will generate accurate and reliable measurement of almost all clean liquids.

Additionally, you will get a flowmeter, that gives a high degree of repeatability because of the direct volumetric reading.

Monitoring for precision

The Oval Gear Flowmeters from the EGM-Series offer a pulse signal output capable of interfacing to most monitoring and control systems, such as a PLC or DCS.

Moreover, the “Fuel Consumption” option can tolerate flow pulsations and has an inbuilt temperature sensor to correct for the fuel density changes.

The cable output from the flowmeter can also be wired to instruments such as totalisers, rate totalisers or batch controllers.

Besides, the flowmeters can be acquired with monitoring and control output options including 4-20mA, scaled pulse, flow-rate alarms, and batch control logic (preset metering).

Choose the right Flowmeter

The Oval Gear Meters use a measuring principle, where a pair of oval-shaped gears in a measuring chamber rotate by the force of the liquid on these. The liquid flows into a chamber and is sealed off once the chamber is full and produces either an electronic pulse or drives a gear to register the volume as it exits the chamber.

As illustrated in the example on the right, the pulse is generated because the (green) liquid is sealed from both the inlet (red liquid) and exit (blue liquid). This set up would produce four pulses as the meter transmits four identical volumes for every cycle.

This matters because the simplest meters register each time a bucket is filled. Here the total volume would be the sum of the number of buckets filled. In the complex meters the discrete volumes passed each time can be summed together to see the overall volume passing through the meter.

See all Oval Gear Flow Meters here

Flomec OM Series Oval Gear Princip 1024X16x9

Accessories

When you buy the Oval Gear Meters, they each, by default, contain a traceable calibration certificate and 2 pulse outputs in the form of a Reed contact and Hall effect sensor.

This means, that it can be used to either have dual resolution of the heart rate signal or as a backup.

Additionally, there is a wide selection of different LCD display types associated with this series, so you can get a display of the values for instantaneous flow (eg l / h or m³ / h) and total flow (eg l or m³).

You also have the option to get a traditional mechanical display.

See all the accessories here

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Normal Size	1/8"(4 mm) - 3/4" (20 mm)
Flow range	*Norminal Flow Range @ 3cP: 0.26 GPH(1.0 L/hr) - 145 GPH(550 L/hr) .26 GPM(1 L/min) - 21 GPM (80 L/min) Flow Range @ 1cP: 0.25 GPH(2 L/hr) - 116.24 GPH(440 L/hr) 0.39 GPM(1 L/min) - 16.91 GPM (64 L/min) Flow Range @ 7cP: 0.13 GPH(0.5 L/hr) - 145.29 GPH(550 L/hr) 0.13 GPM(0.5 L/min) - 21.13 GPM (80 L/min) Flow Range @ 200cP: 0.10 GPH(0.4 L/hr) - 145.29 GPH(550 L/hr) 0.10 GPM(0.4 L/min) - 21.13 GPM (80 L/min) Flow Range @ 500cP: 0.06 GPH(0.25 L/hr) - 145.29 GPH(550 L/hr) 0.08 GPM(0.3 L/min) - 26.42 GPM (80 L/min) Flow Range @ 1000cP:** 0,03 GPH(0.12 L/hr) - 95.10 GPH(360 L/hr) 0.05 GPM(0.2 L/min) - 13.21 GPM (80 L/min)
Accuracy+	± 1% of reading (on the EGM004, EGM006 and EGM008) and ± 0.5 of reading (on the EGM015 and EGM020)
Repeatability	Typically ± 0.03% of reading
Ambient Temperature Range	5° F to +176° F (-15° C to +80° C)
Fluid Temperature Range	23˚F to +176˚F (-5˚C to +80˚C)
Max. Pressure (AI meters)	290 psi (20 bar) - 500 psi (34 bar)
Max. Pressure (SS meters)	290 psi(20 bar) - 800 psi (55 bar)
Protection Class	IP65
Recommended Filtration	200 mesh [75 μm] - 100 mesh [150 μm]
Pulse Output Type	NPN Open Collector (Hall Effect Sensor)
Voltage	5 - 24 V (dc)
Current Draw	20mA max.
Switching Current	10mA max.
Pulse Output Resolution - Standard Pulse/USG [Pulse/L]	398 [105] - 10600 [2800]
Pulse Output Resolution - Fuel Cons. Option Pulse/USG [Pulse/L]	99.5 [26.3] - 10600 [2800]
RTD Specification (Integral Option 2)	Platinum Resistance Thermometer 100 Ohms (PT100) Class F0.3
Notes	*Maximum flow reduces as viscosity increases, see flow de-rating guide. Max recommended Pressure drop is 14.5 psi (1 bar). +When used to meter rate, at very low flow rates, the rate can jump, due to resolution (not accuracy)

Model/ Type

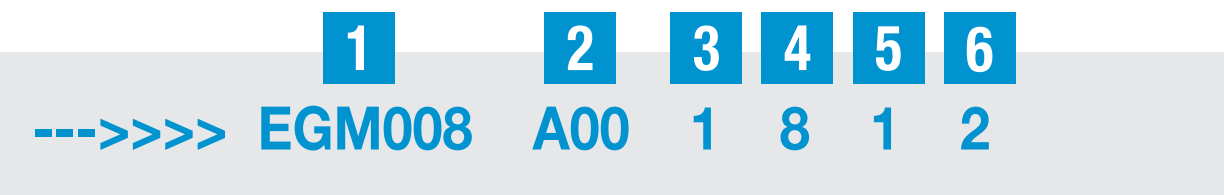

Product Identifier	EGM004: 1/8" (4mm) Oval Gear Meter, 1-36 L/hr, 0.26-9.5 USG/hr EGM006: 1/4" (6mm) Oval Gear Meter, 2-100 L/hr, 0.53-26.4 USG/hr EGM008: 3/8" (8mm) Oval Gear Meter, 15-550 L/hr, 4-145 USG/hr EGM015: 1/2” (15mm) Oval Gear Meter, 1-40 L/min, 0.26-10.6 USG/min EGM020: 3/4” (20mm) Oval Gear Meter, 3-80 L/min, 0.5-21 USG/min
Materials of Construction	A001: Aluminium / PPS / Viton A511: Aluminium / Stainless steel / Carbon Ceramic / Viton S001: 316 Stainless Steel / PPS / Viton S511: 316 Stainless Steel / Stainless steel / Carbon Ceramic / Viton S513: 316 Stainless Steel / Stainless steel / Carbon Ceramic / Teflon encapsulated Viton
Temperature Rating	8: 80° C max. [176° F] max.
Process Connection	1: BSPP (G) female threaded (ISO 228) 2: NPT female threaded
Electrical Options	1: Hall effect output (ISO 228) 2: Fuel Consumption (Pulsating flow Hall effect, PT100 temp. sensor) (2m cable)
