QS200 Insertion Ultrasonic Flow Meter Saddle

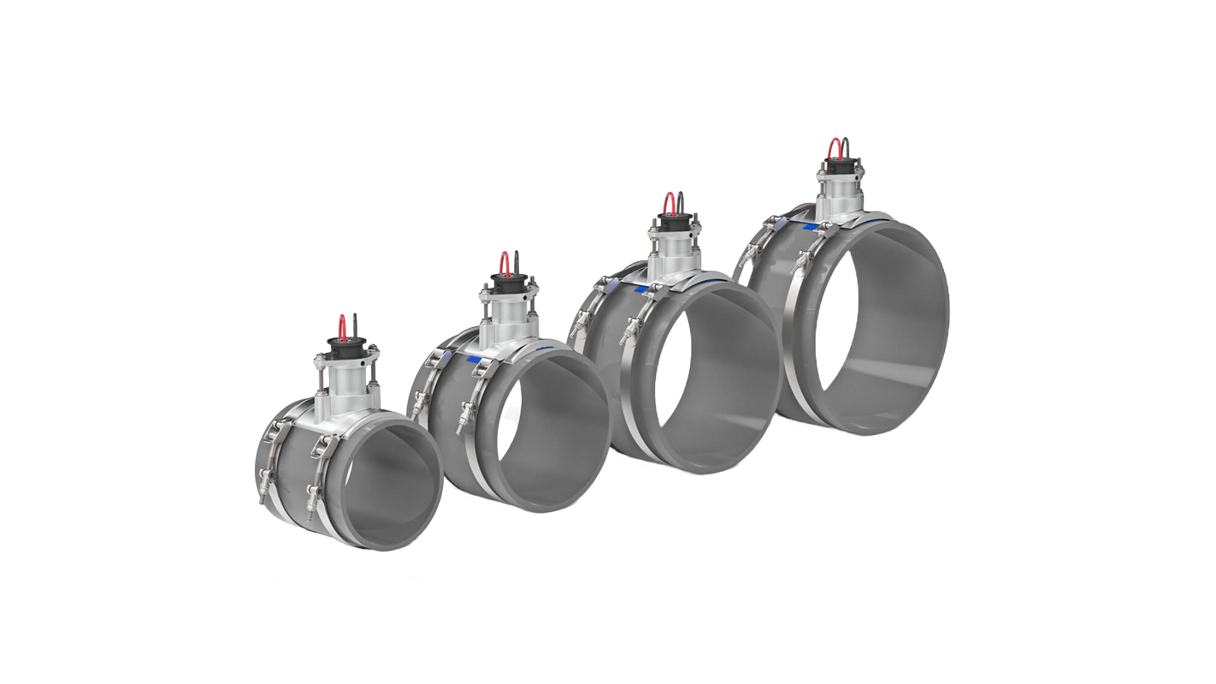

The Insertion Ultrasonic Flow Meter in the QS200 series from Flomec has exclusively designed saddles in 6, 8, 10, and 12 inch. This Flowmeter is highly accurate when displaying your flow rate and accumulated total.
Moreover, they support commercial and agricultural irrigation applications on large size pipes.
For sales or commercial inquiries please contact us at marine@insatech.com.
The QS200 Turf Irrigation Flow Sensor has the following features that benefits you:
The QS200 Insertion Ultrasonic Flowmeter Saddle is applicable to various settings including:
Designed for above and below grade applications, such as irrigation, municipal and underground monitoring.
Common for these settings must be, that the flow rates are between 0.1 to 15 fps (0.03 to 4.6 m/s) and temperatures are below 140° F (60° C).

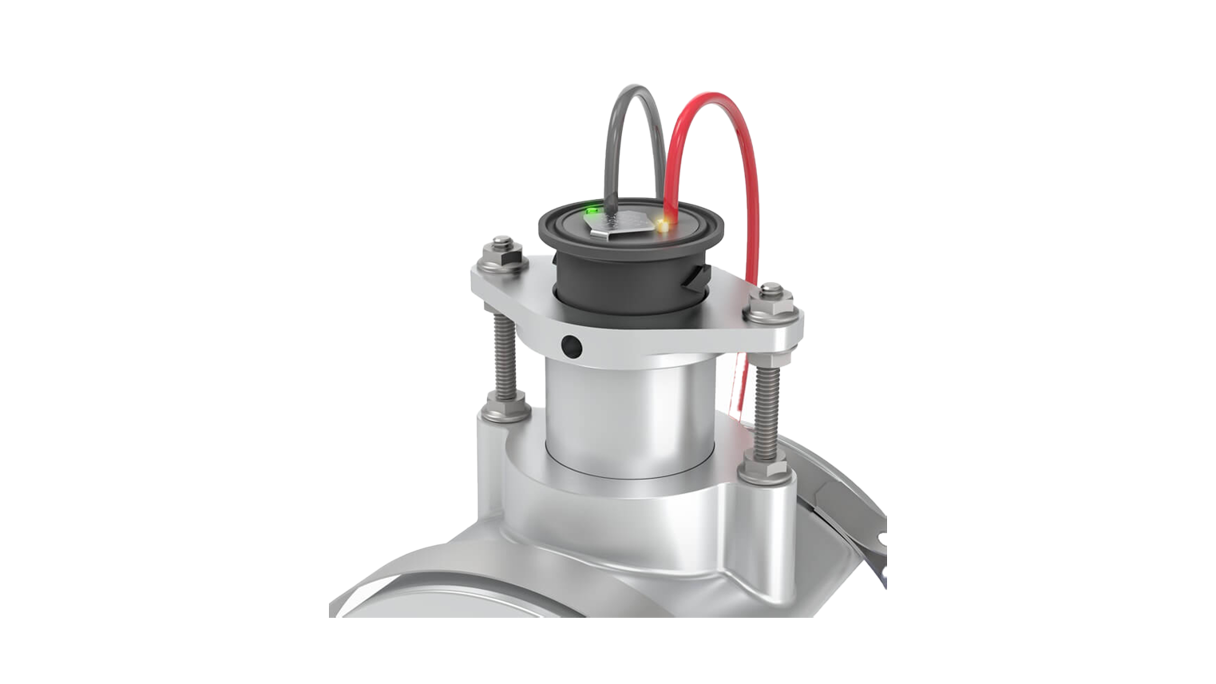

QS200 inserts are supplied with two single conductors. As well as 18 AWG solid copper wire leads that are 36 inches (914.4 mm) in length with UL Style 116666 direct burial insulation.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Insert Wetted Materials |
|
||||||||||||||||||
| Temperature Rating |
|
||||||||||||||||||
| Flow Range | 0.1 to 15 fps (0.03 to 4.6 m/s) |
||||||||||||||||||
| Accuracy | Typically ±2% of reading |
||||||||||||||||||
| Operating Pressure |
|
||||||||||||||||||
| Transducer Excitation |
|
||||||||||||||||||
| Output Frequency | 0 to 100 Hz |
||||||||||||||||||
| Output Pulse Width | 4 ms |
||||||||||||||||||
| Electrical Cable for Insert Electronics | 36 inches (914.4 mm) of 18 AWG, solid copper, “Direct Burial” (UL 493 & 83) |
||||||||||||||||||
