Power supply units 8010, 8011, 8020 and 8021

Power supply units (PSU) from Weber Sensors are designed for operating 24 VDC sensors (e.g., flow and vent sensors) on AC voltage networks.

  • 8010/8020 (relay output): Suitable for PNP switching sensors or sensors with an analog output signal.
  • 8011/8021 (relay output): Intended for NPN switching sensors.
  • 8010/8011 (optocoupler output): Appropriate for both PNP and NPN switching sensors.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Weber Sensors' range of Power Supply Units

A PSU acts as a reliable power source, ensuring optimal performance and precision for your sensors. Whether it's PNP-switching, NPN-switching, or optocoupler output, the PSU series from Weber Sensors delivers versatile solutions for your specific needs.

Explore each type below for detailed information.

802X

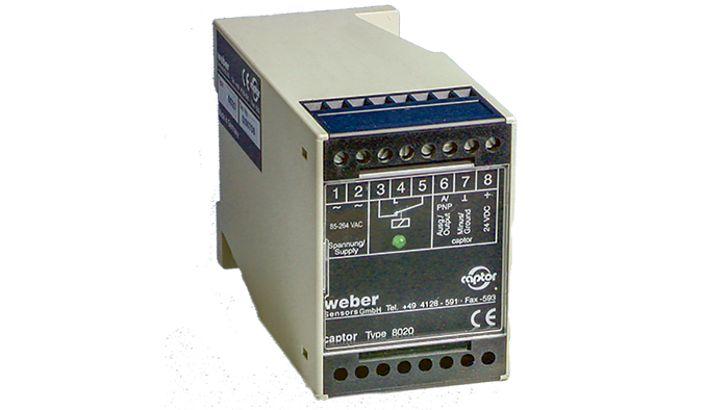

Type 802x: Supply Unit 8020 and 8021

Type 8020 and 8021 features a 24 VDC transformer rectifier, a switching circuit with a potential-free single-pole double-throw switching contact, and an integrated LED indicating the switching status.

The housing, available for Type 8020 and 8021, is a clamp housing IP40 suitable for standard bars, allowing installation in switch cabinets or similar environments.

With relay output for PNP og NPN switching sensors

Exactly what you need? Contact us here

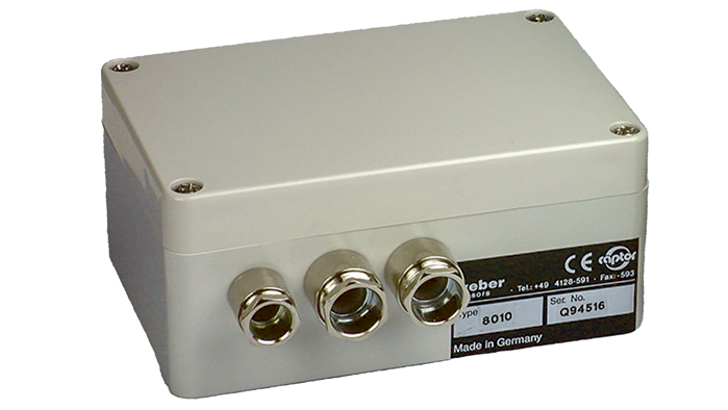

Type 801x: Supply Unit 8010 and 8011

Type 8010 and 8011 features a 24 VDC transformer rectifier and a switching circuit with an output relay, including a potential-free single-pole double-throw switching contact. An integrated LED indicates the current switching status.

The Makrolon housing with PG glands facilitates wall mounting for sensors, mains, and output connections, suitable for applications with an available AC power source on-site.

With relay output for PNP or NPN switching sensors.

Exactly what you need? Contact us here

801X Relay
801X

Type 801x: Supply Unit 8010 and 8011 optocoupler

Type 8010 and 8011 with optocoupler output, incorporates a 24 VDC power supply and a switching stage with optocoupler output featuring a potential-free switching contact. An integrated LED indicates the switching status.

The Makrolon housing with PG glands is designed for wall mounting, suitable for applications with an available AC power source on-site.

With optocoupler output for PNP or NPN switching sensors.

Exactly what you need? Contact us here

PNP or NPN switching sensors

PNP-switching sensors or sensors with an analog output signal

  • Activation of a switch signal upon connection of an analog signal, controlling an integrated relay at a fixed threshold of 50% of the max. input signal
  • Allows varying switching points for adjustable flow and vent captors

For NPN-switching sensors

  • The output relay is directly controlled by the sensor's switching output
Need more information? Contact us now
Technical data
Sensor output
  • 8011: NPN
  • 8010: PNP or analog
  • 8021: NPN
  • 8020: PNP or analog
Connection data for captor
Operating voltage
  • 9 - 36 VDC, 18 - 75 VDC
    24 VDC max. 125 mA (230 mA on request), short circuit detected
  • 85 - 264 VAC
    24 VDC max. 230 mA, short circuit detected
Signal input

8010 + 8020:

  • Ri approx. 500 Ω,
  • Ie limited to 15 mA
  • threshold switch 12 mA,
  • hysteresis ± 0.8 mA

8011 + 8021:

  • UE on ≤ 6 V
  • UE off ≤ 18.5 V


Contact data of relay
Switching voltage max.

30 VDC/240 VAC
Switching current max

2.5 A AC/DC
Optocoupler data
Switching voltage

max. 350 VDC or peak VAC
Switching current

max. 120 mA AC/DC
Mechanical data
Protection

Protection class of PSU 8011 + 8010:

  • IP65 / DIN 40050
  • Air and creepage distances according to VDE 0110 Group C, 380 VE

Protection standard of 8021 + 8020:

  • clamp housing IP 40*
  • *(clamps: IP20 and contact protected accord to VDE 100 Teil 750 und VBG 4)
  • Airgap and creepage distance according to VDE 0110 Gruppe C, 380 VE


Dimensions and mass
  • 8011 + 8010: 120 x 80 x 55 mm, 440 g
  • 8021 + 8020: 55 x 75 x 110 mm, 350g


Electrical Data
Power consumption
  • 9 - 36 VDC: max. 4W
  • 18 - 75 VDC: max. 4W
  • 85 - 264 VAC: max. 5,5VA
  • Data Sheet - 8010/8011 relay output - Weber Sensors
    English | pdf
  • Data Sheet - 8010/8011 optocoupler output - Weber Sensors
    English | pdf
  • Data Sheet - 8020/8021 relay output - Weber Sensors
    English | pdf
