Vent Captor 3202.30/xx - Flow Meter

Vent Captor 3202.30

The vent-captor type 3202.30 is perfect for measuring and controlling gases in automation processes and industrial applications. Using a calorimetric measuring principle, it adjusts its measuring range to a wide quantity spectrum. This electronic sensor operates without mechanical parts.

Key features for you:

Precise flow measurement
Adjustable measuring range
Temperature independent
Analogue current output 4 – 20 mA
Robust industrial design (special encapsulation)
ISO 9001:2015 certified

For sales or commercial inquiries please contact us at marine@insatech.com.

A flow meter for the maritime industry

Vent-captor type 3202.30 finds valuable application in the marine industry. Its precise flow measurement capability, adjustable measuring range, and temperature independence make it ideal for various tasks, including monitoring and controlling gaseous media in automation processes on marine vessels.

The sensor's electronic operation, absence of mechanically moved parts, and robust industrial design with special encapsulation ensure reliability in challenging maritime environments.

Moreover, its analog current output (4 – 20 mA) and adherence to ISO 9001:2015 standards emphasize its appropriateness for use in marine applications.

Dows it match your need - contact us here

Installation

The sensor can be ordered and installed with:

Flange
PG21

Options

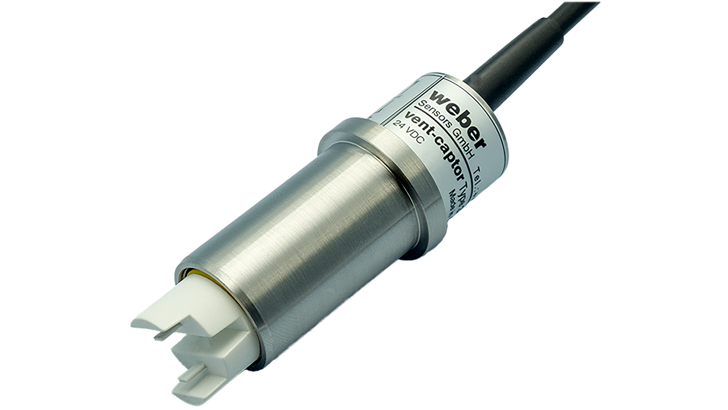

The sensor is also available in a stainless steel version for various needs in challenging operational settings (from 1 bar to max. 10 bar).

See Vent-captor 3205.30.

Need more information? Contact us

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical data
Medium	gaseous (aggressive media on request)

Sensor Data (See note)
Measuring range	0-5 m/s 0-10 m/s 0-20 m/s 0-30 m/s 0-40 m/s 0-50 m/s
Adjustable	continuously from 20 - 100 % by means potentiometer for zero point and range
Adjustment characteristics	linear to flow speed
Linearity deviation	< 5 % best fitting slope
Repeatability tolerance	< 3 %
Medium temperature	-20 °C to +70 °C
Ambient temperature	-20 °C to +70 °C
Pressure	with flange: atmospheric with PG21: max. 1 bar
Temperature drift	< 0.3 % per Kelvin
Note	All data related to medium air

Mechanical data
Protection class	IP 64
Material sensor probe	ceramic with overglaze
Material housing	Ultradur (PBTP)
Mounting accessories	flange (included in delivery) PG21 on request
Electrical connection	2 m oilflex cable / 3 x 0,5 mm²

Electrical data
Electrical output	24 VDC ±30 %
Current output	4 - 20 mA
Load	max. 500 Ω
Power consumption	70 mA - 140 mA (max. flow)
