Flow switch for water based media in a rugged stainless steel housing (full encapsulation) with simultaneous monitoring of flow and temperature
Flow Captor 4220.1xF/.1xTM xx °C
The flow-captor 4220.1xF/.1xT M xx °C is ideally suited for use in automation processes and other industrial applications where both the flow and the temperature of the medium need to be monitored. The sensor operates according to the calorimetric measuring principle and without mechanically moved parts. The sensor detects the flow velocity and the medium temperature and converts both into electrical signals.
Key benefits for you:
Precise switching sensor
Robust stainless steel construction (M)
Separate adjustment of flow range and flow switching point

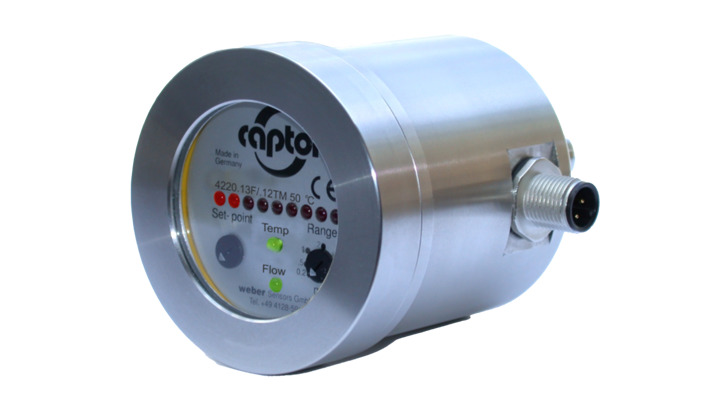

The Flow Captor model 4220.1xF/.1xTM xx °C is a precise, compact flow switch featuring an analog display, all enclosed within a robust stainless steel casing.
These devices operate based on the fundamental principles of calorimetry, which is elaborated further down.
The Flow Captor provides the capability to establish precise flow set-points and simultaneously displays the flow rate, even under conditions of minimal flow.
Sensor heads and housing
The sensor heads are crafted from a single piece of electro-polished stainless steel, ensuring that no sensor elements are exposed to the medium. They can be easily installed using either a T-piece or a welded fitting. For applications involving aggressive media, special sensor head materials such as Titanium or Hastelloy are available upon request.

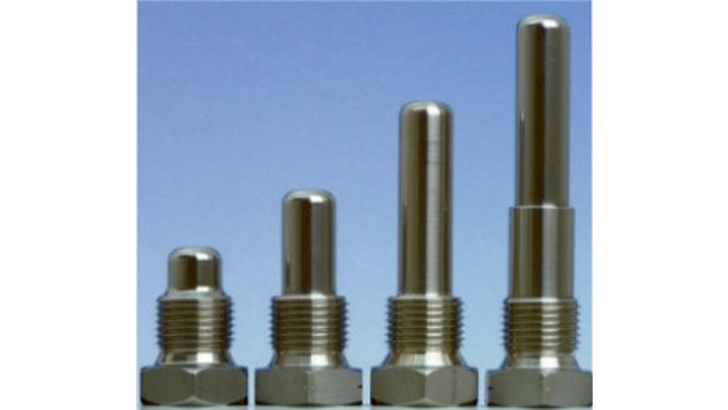

G 1/2" BSP thread in various sensor head lengths is available, and alternatively, a 1/2" -14 NPT thread option.
The housing is constructed from robust stainless steel 303, while the internal electronics are fully protected with epoxy resin encapsulation.
The flow-captor 4220.1xF/.1xTM xx °C from Weber Sensors has several key features including:
Suitable for Pressures up to 100 bar
Accurate switch sensor
Independent adjustment of flow range and flow switch point
Temperature switch-point preconfigured to customer specifications
Real-time analog display of current flow rate with adjustable flow set-point shown on an LED chain
LED indicator for operational status
Compliant with ISO 9001:2015 standards
Efficiency and Durability Unleashed: Flow-Captor's Mechanical Simplicity with Calorimetry
The system operates on the versatile and fascinating measuring principle known as calorimetry. This foundational technology forms the basis of the Flow-Captor type 4220.1xF/.1xTM xx °C, delivering a wide range of valuable benefits, including:
Flexibility
No need for mechanical moving parts
Increased durability and reliability
Highly adaptable
Calorimetry is a technique that gauges changes in temperature to discern various substance or system properties. In the context of the Flow-Captor system, it means that the device can precisely detect and quantify temperature variations within the liquid media it is tasked with controlling.
What distinguishes the calorimetric measuring principle is its exceptional adaptability to varying measurement ranges. This adaptability allows the Flow-Captor to address a wide spectrum of quantities. Whether you encounter subtle temperature variations or more significant fluctuations, the Flow-Captor can effectively tailor its measurement range to suit your application's specific needs. This adaptability ensures its effectiveness across diverse scenarios, be it in automation processes, industrial environments, or critical marine applications demanding precise liquid media control.
Furthermore, the ability to utilize calorimetry means that the flow-captor operates without the need for mechanical moving parts. This is a significant advantage because it reduces wear and tear on the sensor, resulting in increased durability and reliability. In practical terms, this translates to fewer maintenance requirements and a longer operational lifespan for the device, ultimately saving time and resources.
In summary, the calorimetric measuring principle employed by the flow-captor type 4220.1xF/.1xTM xx °C is not only ingenious but also highly adaptable. It empowers the system to precisely monitor temperature changes within water media, making it an invaluable tool in a wide range of industries and applications where precision and reliability are paramount.
