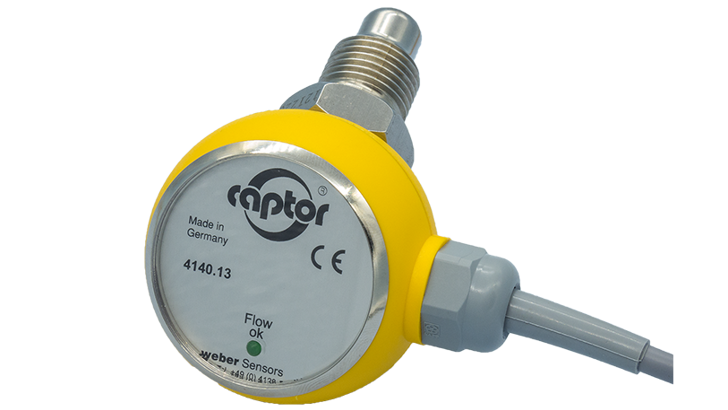

Flow Captor 4140.13
The Flow-captor 4140.13 from Weber Sensors, is a compact and extremely accurate industrial flow switch. It operates based on the calorimetric principle and utilizes microprocessor technology for evaluation.
Key benefits for you:
For sales or commercial inquiries please contact us at marine@insatech.com.
The Flow Captor model 4130.1x is a lower cost alternative to the flow-captor 4120.13
LED display for power and switching status.
Setpoint must be specified when ordering (30 cm/s, 80 cm/s or 120 cm/s)
The factory-set switch-point, saves valuable time during installation. It can be swiftly and seamlessly integrated into the system, reducing downtime and ensuring the process can quickly be up and running.
With its ability to monitor water-based media and absence of moving parts, the Flow-captor 4140.13 minimizes potential wear and the risk of failures, enhancing operational safety and extending its lifespan.
Lastly, its LED display is a practical feature that allows users to easily monitor both power status and switching status in real-time, ensuring the system functions as expected.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Medium | Water-based |
||||||||||||||||||
| Sensor Data | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Set-point | Factory-set 30 cm/s, 80 cm/s or 120 cm/s (must be specified when ordering) |
||||||||||||||||||
| Medium temperature | -20 °C to +80 °C |
||||||||||||||||||
| Ambient temperature | -20 °C to +70 °C |
||||||||||||||||||
| Pressure | max. 100 bar (1000 Kpa) |
||||||||||||||||||
| Response time | ca. 5 sec. |
||||||||||||||||||
| Repeatability | < 2 % |
||||||||||||||||||
| Hysteresis | ca. 10 % |
||||||||||||||||||
| Mechanical data | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Protection class | IP 65 |
||||||||||||||||||
| Material housing | PBTP, glass fibre reinforced (Ultradur®) |
||||||||||||||||||
| Material of sensor head | Stainless steel AISI 303 |
||||||||||||||||||
| Thread | G 1/2“ BSP or 1/2“ - 14 NPT |
||||||||||||||||||
| Electrical connection | Integrated plug connection with PG9 fitting, 2 m oilflex cable 3 x 0,5 mm2 |
||||||||||||||||||
| Electrical data | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating voltage | 18 - 30 VDC |
||||||||||||||||||
| Current consumption | max. 150 mA pulsed |
||||||||||||||||||
| Internal consumption | ca. 1 W |
||||||||||||||||||
| Switching current | ≤ 400 mA |
||||||||||||||||||
| Protective circuit | Reverse polarity, short circuits and overload protection (ready for operation after correcting the short circuit) |
||||||||||||||||||
| Operation readiness | ca. 10 sec. after applying the operating voltage |
||||||||||||||||||
| Electrical output | 4140.13 PNP n.o. (closer) currentless |
||||||||||||||||||
| Electrical output indication | LED = switch state red / green |
||||||||||||||||||
