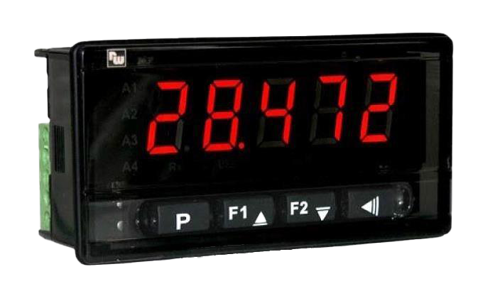

| Display |
LED-Display, 5-digit, red with 16 mm high figures
- Display area/measured value: -1.999 to 30.000
- Display area/Sum: 0 to 9.999.999.999 (alternating display)
|
| Indication |
10 red indicators for alarm states, serial communication, totaliser function , min. and max. value.
- °C,°F: ON, depending on selection
- TX, RX, USB: ON, communication via interface
- A1, A2: ON, when an alarm occurs
- TOT: ON, totaliser function
- HIGH: ON, totaliser 6 up to 10 digits are displayed
- LOW: ON, when 1 up to 5 digits are displayed
|
| Buttons |
4 buttons are for programming and adjusting nominal values.
- Entry area: Adjustment of the input signal via buttons.
- Thermocouple: Type J, K, T, N, R, S, B, E; reference junction.
- Internal temp. sensor: Pt100 in 3-wire (alpha=0,00385)
- Linear inputs: 0V up to 5/10V, 0/4 mA up to 20 mA, 0 mV up to 50 mV
|
| Sensor type, Measuring range |
- Thermocoup. Type J: -110 ºC to 950 ºC
- Thermocoup. Type K: -150 ºC to 1370 ºC
- Thermocoup. Type T: -160 ºC to 400 ºC
- Thermocoup. Type N: -270 ºC to 1300 ºC
- Thermocoup. Type R: -50 ºC to 1760 ºC
- Thermocoup. Type S: -50 ºC to 1760 ºC
- Thermocoup. Type B: 400 ºC to 1800 ºC
- Thermocoup. Type E: -90 ºC to 730 ºC
- Pt100: -200 ºC to 850 ºC
|
| Accuracy |
- Thermocouples type J, K, T, E : 0,25 % of the range +/-1 °C
- Thermocouples type N, R, S, B: 0,25 % of the range +/-3 °C
- Pt100: 0,2 % of the range
- Linear analog input: 0,2 % of the range
|
| Resolution |
internal resolution with 65.535 steps (16 Bit) |
| Input impedance |
- Thermocoup. Pt100, 0 to 50 mV: >10 moHM
- 0 to 5/10 V: >500 KΩ;
- 0/4 to 20 mA: 100 Ω
|
| Sensor power supply |
24 VDC +/-15 % @ 50 mA |
| Relay output |
2 closing contacts with separated grounds. 1,5 A at 240 VAC/30VDC |
| Serial interface |
Mini-USB (virtual COM-port) |
| Operating power supply |
100 to 240 VAC +/-10 %, 50/60Hz, 6 VA |

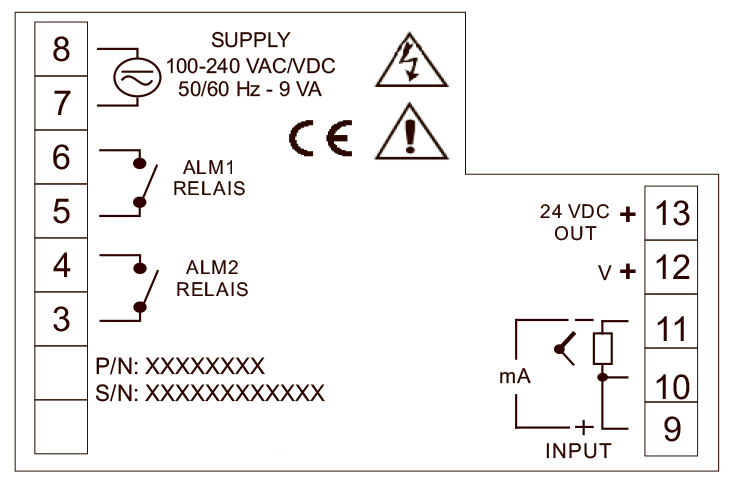

| Connection diagram |
|
| Protection class |
- Front: dust-tight and jet-proof (IP65)
- Reverse side: IP20
|
| Housing |
- Front: plastic housing of polycarbonat (PC) L94-V2
- Reverse side: ABS + PC UI94 V-0
|
| Dimensions (mm) |
W 96 x H 48 x D 35 .
Panel space measuring according to DIN: 93,0 x 45,5 mm.
Mounting by means of lockable clamping brackets (plastic) |
| Connection |
Via pluggable screw terminals |
| Environmental conditions |
- Operating temperature: 0 °C to 50 °C
- Relative air humidity: 80% r.a.h. @ 30 °C
- For temperatures above 30 °C: 3% r.a.h. reductions per °C
|
| Scope of delivery |
Device, fixing material, seal, operating instructions |
