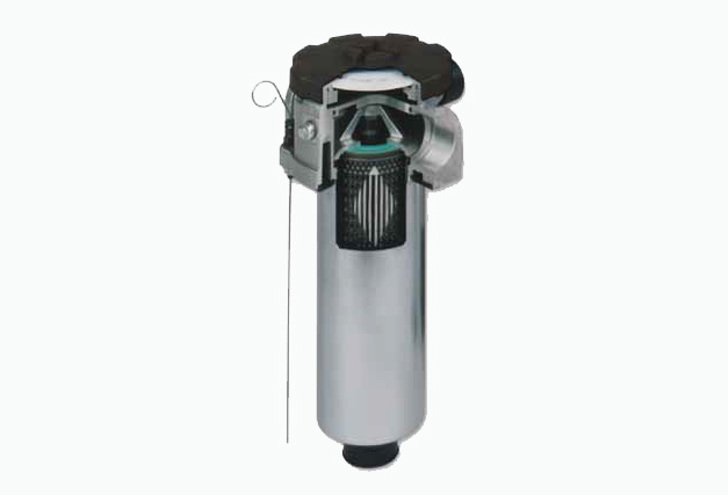

TPR Series
The Tanktopper series I, II & III, are tanktop mounted return line filters, that offers a total filtration solution. They comes equipped with a 10-micron Abs. air breather that is integrated into the filter, providing a more streamlined tank design.
Advantages for you:
For sales or commercial inquiries please contact us at marine@insatech.com.
The TPR Series have various features, advantages, and benefits that you can use:
The Tanktopper series provide a complete filtration solution that integrates an air breather (10-micron abs.) into the filter housing, whitch eliminating the need for a separate air breather and creates a more cost-effective and compact design. The air breather is equipped with a high-quality labyrinth that effectively prevents oil leakage and improves efficiency.
Moreover, the filter offers a second port and dipstick, allowing for the integration of the filler port and level indicator, which significantly reduces the need for additional reservoir accessories.
The filter features a magnetic prefiltration column that effectively removes ferrous particles, even during bypass conditions, improving fluid cleanliness levels and extending the element's lifetime. The in-to-out filtration design ensures that all captured contamination is retained inside the element, preventing recontamination of the system during element changeouts.
Overall, the all-in-one and easy-to-mount TPR solution is a cost-saving option that allows for a more compact tank design, making it a practical choice for a variety of applications.
Additionally, you can also benefit from the following features with the TPR series:
TPR I (Tanktopper Series I)
TPR II (Tanktopper Series II)
TPR III (Tanktopper Series III)
| Operation pressure | Max. 10 bar |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Assembly | Tank top mounted |
||||||||||||||||||
| Connections |
|
||||||||||||||||||
| Filter housing | Aluminium head and co-polymer cover |
||||||||||||||||||
| Seal material |
|
||||||||||||||||||
| Operation temperature range | -40°C to +80°C |
||||||||||||||||||
| Bypass setting | Tanktopper I: Opening pressure 0.8, 1.5 or 2.5 bar |
||||||||||||||||||
| Degree of filtration | Determined by multipass test according to ISO 16889. |
||||||||||||||||||
| Flow fatigue characteristics | Filter media is supported so that the optimum fatigue life is achieved |
||||||||||||||||||
| Filtration media |
|
||||||||||||||||||
| Element burst rating | 10 bar (ISO 2941) |
||||||||||||||||||
| Pressure indicator options |
|
||||||||||||||||||
| Options |
|
||||||||||||||||||
| Magnetic pack | Tanktopper I: Optional |
||||||||||||||||||
| Filter element |
|
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
TPR110QBP2EG121, TPR120QBP2EG121, TPR105QLBP2EG121, TPR110QLBP2EG121, TPR120QLBP2EG121, TPR110QBP2EG12E, TPR120QBP2EG12E, TPR105QLBP2EG12E, TPR110QLBP2EG12E, TPR120QLBP2EG12E, TPR210QBP2EG121, TPR220QBP2EG121, TPR205QLBP2EG121, TPR210QLBP2EG121, TPR220QLBP2EG121, TPR210QBP2EG12E, TPR220QBP2EG12E, TPR205QLBP2EG12E, TPR210QLBP2EG12E, TPR220QLBP2EG12E, TPR210QBP2EG12L, TPR220QBP2EG12L, TPR205QLBP2EG12L, TPR210QLBP2EG12L, TPR220QLBP2EG12L, TPR505QLBP2E2G201, TPR510QLBP2E2G201, TPR520QLBP2E2G201, TPR705QLBP2E2G201, TPR710QLBP2E2G201, TPR720QLBP2E2G201, TPR1105QLBP2E2G241, TPR1110QLBP2E2G241, TPR1120QLBP2E2G241, TPR1040WBP2EG121, TPR1040WBS2EG12E, TPR105QBG2EG12E, TPR105QBP2EG12E, TPR105QBS2EG12E, TPR105QLBG2EG121, TPR105QLBG2EG126, TPR105QLBP2EG126, TPR105QLBS2EG12K, TPR105QLBS2EG121, TPR105QLBS2EG126, TPR110CBG2EG12E, TPR110CBG2EG12K, TPR110CBG2EG121, TPR110CBP2EG12E, TPR110CBP2EG121, TPR110QBG2EG12E, TPR110QBG2EG12K, TPR110QBG2EG121, TPR110QBG2EG126, TPR110QBP2EG126, TPR110QBP2ES12E, TPR110QBS2EG12E, TPR110QBS2EG121, TPR110QLBG2EG12E, TPR110QLBG2EG121, TPR110QLBG2EG126, TPR110QLBP2EG126, TPR110QLBS2EG12E, TPR110QLBS2EG121, TPR110QLBS2EG126, TPR610QLBG2E2G246, TPR610QLBP2EG201, TPR610QLBP2EG241, TPR610QLBP2E2G241, TPR610QLBS2EG246, TPR610QLBS2E2G241, TPR620QLBG2EG201, TPR620QLBG2EG241, TPR620QLBG2E2G241, TPR620QLBP2EG241, TPR620QLBP2E2G241, TPR620QLBS2EG206, TPR620QLBS2EG241, TPR702QLBP2E2G241, TPR702QLBS2E2G201, TPR705QLBG2E2G241, TPR705QLBG2E2G246, TPR705QLBP2EG201, TPR705QLBP2E2G241, TPR705QLBP2E2G246, TPR705QLBS2E2G241, TPR705QLBS2E2G246, TPR710QLBG2E2G201, TPR710QLBG2E2G241, TPR710QLBG2E2G246, TPR710QLBP2E2G241, TPR710QLBP2E2G246, TPR710QLBS2E2G201, TPR710QLBS2E2G241, TPR710QLBS2E2G246, TPR710QLBS3E2G241, TPR720QLBG2E2G201, TPR720QLBG2E2G241, TPR1110QLBS2EG241, TPR1110QLBS2E2G241, TPR1110QLBS2E2G246, TPR1110QLBS4E2G241, TPR1120QLBG2E2G241, TPR1120QLBG2E2G246, TPR1120QLBP2E2G246, TPR1120QLBS2E2G241, TPR1120QLBS2E2G246, TPR120QLBP2EG126, TPR120QLBS2EG12E, TPR120QLBS2EG121, TPR120QLBS2EG126, TPR202QBG2EG121, TPR202QBS2EG121, TPR202QLBS2EG12L, TPR202QLBS4EG121, TPR205QBG2EG12E, TPR205QBG2EG12M, TPR205QBP2EG12E, TPR205QBP2EG121, TPR205QBS2EG12E, TPR205QBS2EG12L, TPR205QLBG2EG12J, TPR205QLBG2EG12L, TPR205QLBG2EG121, TPR205QLBS2EG12E, TPR205QLBS2EG12L, TPR205QLBS2EG121, TPR210CBG2EG12E, TPR210CBG2EG121, TPR210CBP2EG12E, TPR210CBP2EG12J, TPR210CBP2EG121, TPR210QBG2EG12E, TPR210QBG2EG12J, TPR210QBG2EG12K, TPR210QBG2EG12L, TPR210QBG2EG12M, TPR210QBG2EG121, TPR210QBG2EG126, TPR210QBP2EG12J, TPR210QBP2EG12M, TPR210QBP2EG126, TPR210QBS2EG12E, TPR210QBS2EG12K, TPR210QBS2EG121, TPR210QLBG2EG12J, TPR210QLBG2EG12K, TPR210QLBG2EG12L, TPR210QLBG2EG121, TPR210QLBP2EG12J, TPR210QLBP2EG126, TPR210QLBS2EG12L, TPR210QLBS2EG121, TPR220QBG2EG12E, TPR220QBG2EG12L, TPR220QBG2EG12M, TPR220QBG2EG121, TPR220QBP2ES12E, TPR220QBP2ES121, TPR220QBS2EG121, TPR220QLBG2EG12L, TPR220QLBG2EG121, TPR220QLBP2EG12J, TPR220QLBP2EG126, TPR220QLBS2EG12L, TPR220QLBS2EG121, TPR502QLBS2E2G201, TPR505QLBG2EG201, TPR505QLBG2E2G201, TPR505QLBG2E2G206, TPR505QLBP2EG201, TPR505QLBP2E2G206, TPR505QLBS2EG201, TPR505QLBS2E2G201, TPR505QLBS2E2G206, TPR510QLBG2EG201, TPR510QLBG2EG206, TPR510QLBG2EG241, TPR510QLBG2E2G201, TPR510QLBG2E2G206, TPR510QLBP2EG201, TPR510QLBP2EG241, TPR510QLBP2E2G206, TPR510QLBS2EG201, TPR110QLBS3EG121, TPR120QBG2EG12E, TPR120QBG2EG12K, TPR120QBG2EG121, TPR120QBS2EG121, TPR120QLBG2EG12E, TPR120QLBG2EG121, TPR120QLBG2EG126, TPR510QLBS2E2G201, TPR510QLBS2E2G206, TPR520QLBG2EG201, TPR520QLBG2ES206, TPR520QLBG2E2G201, TPR520QLBG2E2G206, TPR520QLBP2EG201, TPR520QLBP2ES201, TPR520QLBP2ES206, TPR520QLBP2E2G206, TPR520QLBS2EG201, TPR520QLBS2EG241, TPR520QLBS2E2G201, TPR520QLBS2E2G206, TPR602QLBS2E2G201, TPR605QLBG2EG241, TPR605QLBG2EG246, TPR605QLBG2E2G246, TPR605QLBP2E2G241, TPR605QLBS2EG241, TPR605QLBS4E2G201, TPR610QLBG2EG201, TPR610QLBG2EG241, TPR610QLBG2E2G201, TPR610QLBG2E2G241, TPR720QLBG2E2G246, TPR720QLBP2E2G241, TPR720QLBP2E2G246, TPR720QLBS2E2G201, TPR720QLBS2E2G241, TPR720QLBS2E2G246, TPR1002QLBS2E2G241, TPR1005QLBP2E2G241, TPR1005QLBS2E2G241, TPR1010QLBG2EG241, TPR1010QLBG2E2G241, TPR1010QLBG2E2G246, TPR1010QLBP2EG241, TPR1010QLBP2E2G241, TPR1010QLBS2EG241, TPR1010QLBS2E2G241, TPR1020QLBG2EG241, TPR1020QLBG2E2G241, TPR1020QLBP2E2G241, TPR1102QLBP2E2G241, TPR1102QLBS2EG241, TPR1102QLBS2E2G241, TPR1105QLBG2E2G241, TPR1105QLBG2E2G246, TPR1105QLBP2E2G246, TPR1105QLBS2EG241, TPR1105QLBS2EG246, TPR1105QLBS2E2G241, TPR1105QLBS2E2G246, TPR1110QLBG2EG241, TPR1110QLBG2E2G241, TPR1110QLBG2E2G246, TPR1110QLBP2E2G246, TPR1010QBS2E2G241, TPR1010QLBS2E2G206, TPR1020QBG2E2G241, TPR10XXXLBP2E2G241, TPR110CBG2EG12S, TPR110QBP2EG12T, TPR110QBP2XG12S, TPR1110QLBG2H2G241, TPR120QLBS3EG121, TPR210CBP2EG12S, TPR210QBP2EG12S, TPR210QBP2EG12T, TPR602QLBS4E2G201, TPR710QLBP2EG201, TPR710QLBP2EG241, TPR902QLBP2E2G241, TPR905QLBP2E2G241, 2.035004056E9, 2.035004069E9, 2.035004073E9, 2.035008125E9, 2.035008134E9, 2.035008138E9, 2.035012006E9, TPR210CBP2EG12KS22, TPR210QBP2EG12S44
