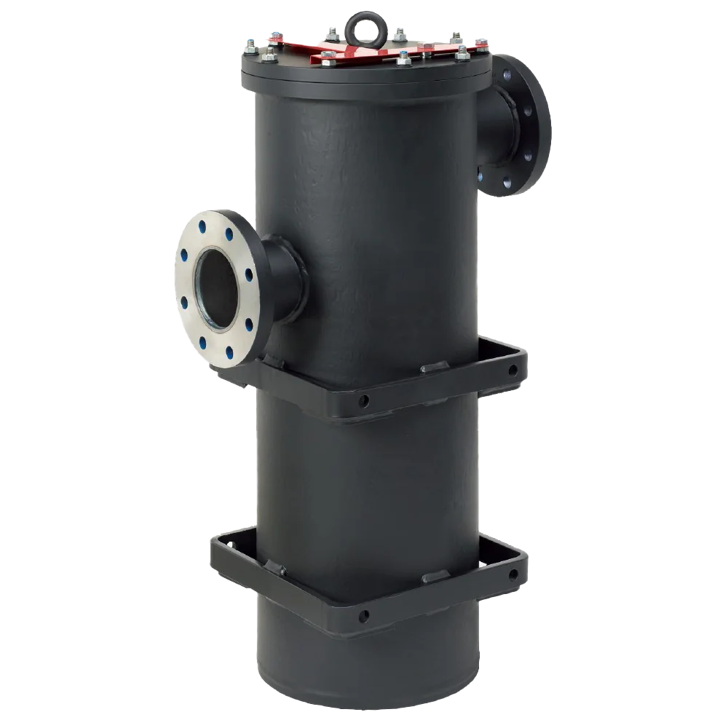

SF1040 Series Parker Low Pressure In Line Filter

SF1040 series including SFH1040 and SFR1040

The SF1040 series from Parker, are multi-purpose filters for gas and high flow fluid systems. The house is in strong welded steel construction and has connections of either DN80 or DN100.

 3 filter versions available:

  • SF1040 - The steel and vertical mounted version
  • SFH1040 - The steel and horizontal mounted version
  • SFR1040 - The stainless steel and vertical mounted version

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

SF1040 Series for gas and high flow fluid systems

This filter is designed for gas and high flow fluid systems, and can serve multiple purposes. It can be used at flow rates of up to 1400 l/min and pressures of up to 10 bars. The housing is constructed with sturdy welded steel and has connections of either DN80 or DN100.

There are several media options available, including PED 3 classified versions for gas applications. Additionally, there are options for a safety filter to ensure proper filtration even in bypass situations, and a differential pressure indicator for precise control of operations.

Advantages for you

  • Several media options including PED 3 classified versions for gas applications
  • Optional safety filters to ensure proper filtration even in bypass situations
  • Differential pressure indicator for accurate operation control

Typical applications

  • Lubricating oil filter for industrial systems
  • Gas fine filter for combustion engines
  • Fuel oil filter for high flow systems
  • Large in line low-pressure filter for hydraulic systems

Need more information? Contact us here

SF1040 Series Parker Low Pressure In Line Filter

Your benefits of choosing SF1040 series filters includes

  • Effective filtration - The filters are designed to provide effective filtration, ensuring that systems operate smoothly and without interruptions.
  • Flexibility - There are several media options to choose from, and there are 3 different versions (SF1040 / SFH1040 / SFR1040) of the filters that cater to different needs and applications.
  • High quality - The filters are made of strong welded steel and are built to be durable and resistant to wear and corrosion.
  • Safety - Optional safety filters are available to ensure filtration remains stable even in bypass situations, as well as differential pressure indicators that provide precise control of system operation.

Exactly what you need? Contact us here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Assembly

In-line filter, vertical installation or optionally horizontal installation.

Includes 2 elements
Operating pressure

Max. up to 10 bar
Flow rate

Up to 1400 l/min
Connections
  • Flanges DN80/PN16
  • DN100/PN16
Seal material

Fluoroelastomer
Operating temperature
  • -20 to +120°C With Fluorelastomer seals
  • -20 to +160°C With metal mesh elements and Fluorelastomer seals
Housing material
  • Steel
  • Stainless steel
Weight

100 kg
Bypass valve

Standard without bypass. Optionally opening pressure 2.0 bar
Filtration materials
  • Glassfibre Microglass III
  • Resin impregnated cellulose paper 15 μm nominal
  • Cleanable metal mesh
Indicator options

Visual, electrical or electronic indicator requires an indicator block
Fluid compatibility

Suitable for use with regular hydraulic and lubrication oils and fuel oils. For heavy fuel oil applications, please specify option P2 (see table 8 in product description) which ensures that filters are delivered with documentation according PED 97/23/EC category II.
Respectively for combustible gas applications, specify option P3 for PED category III. For other fluids contact us.
  • Data Sheet - SF1040 Series - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

SF1040210QVNXD80T2, SF1040220QVNXD80T2, SF1040210QVM3HD80T2, SF1040220QVM3HD80T2, SF1040210QVT1HD80T2, SF1040220QVT1HD80T2, SF1040210QVNXD100T2, SF1040220QVNXD100T2, SF1040210QVM3HD100T2, SF1040220QVM3HD100T2, SF1040210QVT1HD100T2, SF1040220QVT1HD100T2, SF10402015NVNXD100T2, SF1040205QVM3HD80C1, SF1040205QVM3HD80T2, SF1040210QVM3HD80T1, SF1040210QVM3HD80T1F, SF1040220QVM3HD100T1, SF1040210QVPHD100T1, SFH10402015NVNXD100C2NBF, SF1040205QVNHR32C1S01, SF1040205QVNHR32C1S02, SF1040205QVNHR32C1S03, SF1040210QVM3T1HD80T2NBF
