GA Series

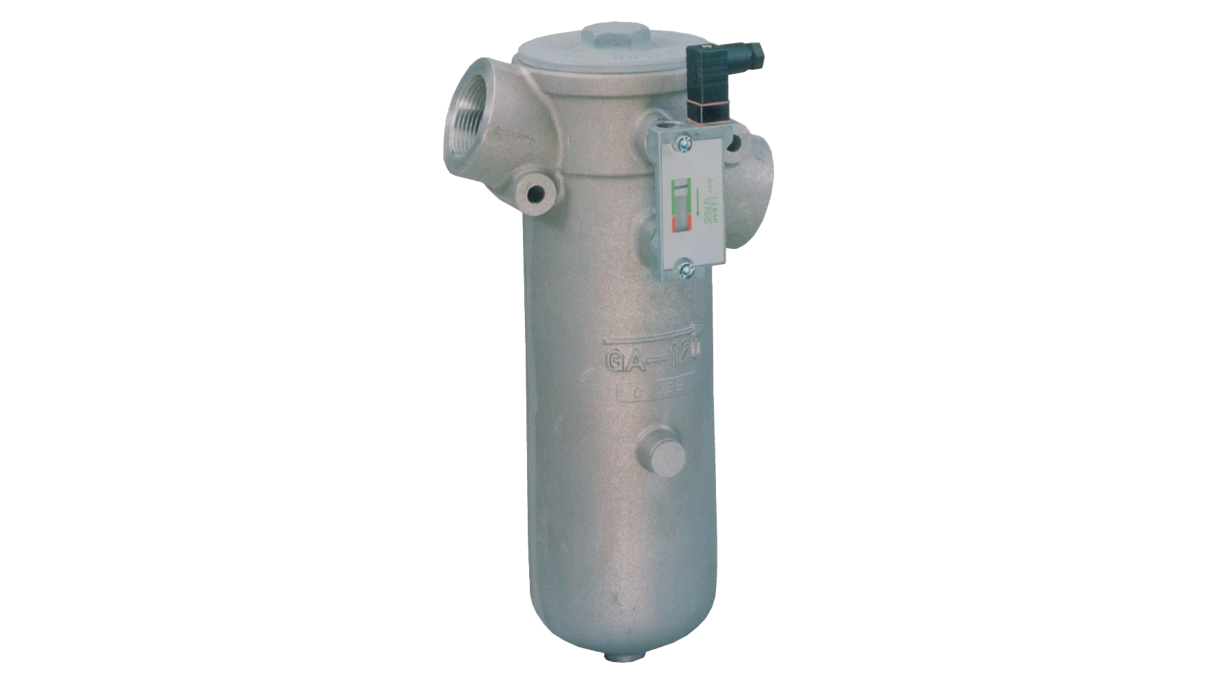

Upgrade your marine equipment with the advanced GA Low Pressure Filter by Parker. Designed for various applications, this high-performance filter is perfect for heavy-duty lube oil filtration, offering a flow capacity of up to 230 l/min at 30 bar.
Feautures include:
For sales or commercial inquiries please contact us at marine@insatech.com.
The GA series comes with a light weight aluminium housing and alot of features and benefits for you, including:
One of the standout features of the GA Low Pressure Filter is its innovative In-to-Out filter principle. This ensures that contaminated oil is unable to leak back into the system, providing you with reliable and clean oil for optimal performance.
The GA Series comes equipped with magnets for magnetic pre-filtration, making it ideal for applications where the presence of Fe-particles is significant. By effectively removing these particles, the filter extends the lifespan of the filter element and enhances the cleanliness level of the fluid.
Customizability is a key aspect of the GA Low Pressure Filter, allowing it to be tailored to filter coolants and perfectly suited for metal cutting equipment. This ensures that your marine equipment operates at peak efficiency and delivers exceptional results.
Monitoring the condition of the filter element is made easy with the inclusion of visual or visual & electrical differential pressure indicators. This enables you to stay on top of maintenance requirements and ensure optimal performance at all times.
For those looking for environment-friendly filtration options, the GA Low Pressure Filter offers LEIF® elements compatible with all glass fibre media. This ensures that you can achieve the highest standards of filtration while maintaining an eco-conscious approach.
Featuring a full flow bypass with low hysteresis, the GA Low Pressure Filter guarantees uninterrupted fluid flow and minimizes pressure drops, allowing your marine equipment to operate smoothly and efficiently.
Exactly what you need? Contact us here| Assembly | In-line filter |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating pressure | Max. up to 30 bar |
||||||||||||||||||
| Nominal flow rate (30 cSt) | Up to 230 l/min (13.8 m3/h) |
||||||||||||||||||
| Connections |
|
||||||||||||||||||
| Seal material |
|
||||||||||||||||||
| Operating temperature range |
|
||||||||||||||||||
| Housing material | Aluminum |
||||||||||||||||||
| Bypass setting | Opening pressure standard 1.5 bar, optionally 0.8 bar, 2.0 bar or blocked bypass |
||||||||||||||||||
| Filtration materials |
|
||||||||||||||||||
| Magnetic pack | Standard |
||||||||||||||||||
| Differential pressure indicators | Visual or Visual-electrical indicator Setting 1.2 bar (for 2.0 bar and 1.5 bar bypass) or 0.7 bar (for 0.8 bar bypass) |
||||||||||||||||||
| Fluid compatibility | Suitable for use with regular hydraulic and lubrication oils. For other fluids contact us. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
GA210QBD3EG161, GA220QBD3EG161, GA210QLBD3EG161, GA220QLBD3EG161, GA210QBE3EG161, GA220QBE3EG161, GA210QLBE3EG161, GA220QLBE3EG161, GA210QBP2EG161, GA220QBP2EG161, GA210QLBP2EG161, GA220QLBP2EG161, GA410QBD3EG201, GA420QBD3EG201, GA410QLBD3EG201, GA420QLBD3EG201, GA410QBE3EG201, GA420QBE3EG201, GA410QLBE3EG201, GA420QLBE3EG201, GA410QBP2EG201, GA420QBP2EG201, GA410QLBP2EG201, GA420QLBP2EG201, GA710QBD3EG241, GA720QBD3EG241, GA710QLBD3EG241, GA720QLBD3EG241, GA710QBE3EG241, GA720QBE3EG241, GA710QLBE3EG241, GA720QLBE3EG241, GA710QBP2EG241, GA720QBP2EG241, GA710QLBP2EG241, GA720QLBP2EG241, GA0040WBD3EG121, GA0040WBE3EG121, GA0040WVD3EG121, GA0040WVE3EG121, GA005QBD3EG122, GA005QVE3EG121, GA010CBD3BG121, GA010CBD3EG121, GA010CBP2EG121, GA010QBE3EG121, GA010QBP2BG121, GA010QLBP2EG121, GA010QVE3EG121, GA020QBP2EG121, GA020QLBD3EG121, GA020QLBE3EG121, GA020QLBE4HG121, GA2040WBD3EG161, GA2040WBD4EG161, GA2040WBE3BG161, GA2040WBE3EG161, GA2040WBP2EG161, GA2040WBP2XG166, GA210QBD3BG161, GA210QBP2BG161, GA302QBP2EG161, GA3040WBD3BG161, GA3040WBD3EG161, GA3040WBD3EG165, GA3040WBE3BG161, GA3040WBE3EG161, GA3040WBP2EG161, GA3040WVP2EG161, GA305QBP2EG161, GA305QBP2XG162, GA310QBD3BG161, GA310QBP2BG161, GA310QBP2EG161, GA310QLBD3EG161, GA320QBP2EG161, GA4040WBD3EG201, GA4040WBP2BG201, GA405QLBE3BG201, GA405QLBE3EG201, GA410CBD3EG201, GA410CBE3BG201, GA410CBE3EG201, GA410CBP2BG201, GA410QBD3BG201, GA410QBP2BG201, GA410QLBD3BG201, GA410QLVE3EG201, GA420QBE3BG201, GA6040WBD3BG241, GA6040WBE3BG241, GA6040WBE3EG241, GA6040WBE4BG241, GA610CBE3BG241, GA610QBE3BG241, GA610QLBD3BG241, GA610QLBE3EG241, GA620QLBP2HG241, GA702QBE3EG241, GA7040WBD3EG241, GA7040WBE3HG241, GA7040WBP2BG241, GA7040WBP2EG241, GA7040WBP2XG242, GA7040WBP2XG246, GA705QBE3EG241, GA705QLBD3HG241, GA705QLBE3EG241, GA710CBD3EG241, GA710CBP2BG241, GA710QBD3BG241, GA710QBP2BG241, GA710QLBD3BG241, GA720QBP2XG242, 2.038023076E9, GA2XXXBP2BG16S06, GA4XXXNNXG202S13, GA7XXXNNXG242S12, GA0025WVD3EG121, GA002QBP2EG121, GA0040WBPXG122, GA0120WBD3BG121, GA0XXXBD3EG121, GA0XXXBP2EG121, GA2040WBD3BG161, GA210QBE3BG161, GA2150WBD3EG161, GA2XXXBP2EG161, GA2XXXBPEG161, GA3060WBD3EG161, GA3100WBD3EG161, GA310CBP2BG161, GA320QBD3BG161, GA3XXXBD3EG161, GA3XXXBP2BG161 GA3XXXBP2EG161, GA4040WBE3EG201, GA4060WBP2EG201, GA410CBNBG201, GA410CVE3EG201, GA410QBD1BG201, GA410QBE3BG201, GA410QBE4BG201, GA410QLBD1EG201, GA420QLBP2BG201, GA42500WBP2RG201, GA4250WBP2XG202, GA4XXXBNEG201, GA4XXXBP2BG201, GA4XXXBP2EG201, GA4XXXNNXG202, GA6XXXBP2EG241, GA7060WBP2EG241, GA7120WBD3EG241, GA7120WBP2OG241, GA720QBD4EG241, GA7XXXBE3EG241, GA7XXXBP2EG241, GA7XXXBP2ES241, GA7XXXNNXG242
