130 Series Parker Medium Pressure In Line Filter

Eco130 Series - 130M, 130D, 130N, 130S

The Eco 130 Series from Parker, are a modular system for industrial application. They are designed for use in hydraulic or lubrication systems and can handle high pressures up to 30 bar when used individually. Ability to connect multiple filters together in a "duplex" format, which enables continuous filtration during element changes.

Benefits with the Eco130 series:

  • Modular filter system
  • Metric mounting and G thread ports
  • Duplex type systems with selecting valve
  • Bypass assembly in the filter cover
  • Large filtration area

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

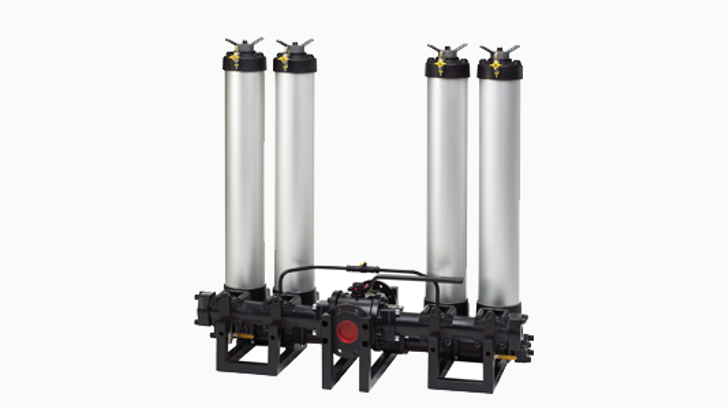

130S Parker
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Assembly

In-line filter as:

  • A single filter
  • A dual unit
  • A parallel unit
  • A filter system with L-bore selecting valve assembly (only one side in use)

Vertical installation.

Operating pressure

Single filter: Max. up to 30 bar

Dual and parallel units and filter systems: Max. up to 16 bar

Flow rate

Single filter: Up to 1000 l/min (60 m3/h)

Dual and parallel units and filter systems: Up to1400 l/min (84 m3/h)

Connections

Single filter:

  • Flanges SAE 2” 3000-M
  • SAE 2½” 3000-M
  • With adaptor threads G1½ or G2.

Dual units:

  • Flanges SAE 3” 3000-M
  • With adaptor threads G2.

Parallel units and filter systems:

  • DN80/PN16
  • DN100/PN16.
Seal material
  • Nitrile
  • Fluoroelastomer on request
Operating temperature range
  • -40 to 110°C Nitrile
  • -20 to +120°C Fluorelastomer
Housing material

Aluminum

Bypass valve

Opening pressure 3.5 bar

Filtration materials
  • Glassfibre Microglass III
  • Environmentally friendly Ecoglass III. No metal parts
  • Cleanable metal mesh
Indicator options
  • Visual indicator
  • Electrical indicator
  • Electronic indicator (PNP/N.O.)
  • Electronic indicator (NPN/N.O.)
Differential pressure indicators
  • Visual indicator always included to each column, setting 2.5 bar.
  • Optional electrical or electronic indicators to be mounted on lower indicator port.
Fluid compatibility

Suitable for use with regular hydraulic and lubrication oils.

Filter element:

Degree of filtration determined by multipass test according to (ISO 16889)

Options:
  • Funnel for control of the oil flow
  • Magnet column for ferrous particle prefiltration
Other options available on request:
  • Filling Port in cover GLF 3, 4 and 5
  • Air breather GLF 1 & 2 (Order separately, contact us for more information)
  • Customer branded element
  • Data Sheet - 130Eco Series - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

130S210QEBM3KD10021, 130S220QEBM3KD10021, 130S205QEBM3KD8041, 130S210QEBM3KD8041, 130S220QEBM3KD8041, 130S205QEBM3KD10041, 130S210QEBM3KD10041, 130S220QEBM3KD10041, 130S205QEBM3KD8061, 130S210QEBM3KD8061, 130S220QEBM3KD8061, 130S205QEBM3KD10061, 130S210QEBM3KD10061, 130S220QEBM3KD10061, 130S205QEBM3KD8081, 130S210QEBM3KD8081, 130S220QEBM3KD8081, 130S205QEBM3KD10081, 130S210QEBM3KD10081, 130S220QEBM3KD10081, 130S305QEBM3KD8021, 130S310QEBM3KD8021, 130S320QEBM3KD8021, 130S305QEBM3KD10021, 130S310QEBM3KD10021, 130S320QEBM3KD10021, 130S305QEBM3KD8041, 130S310QEBM3KD8041, 130S320QEBM3KD8041, 130S305QEBM3KD10041, 130S310QEBM3KD10041, 130S320QEBM3KD10041, 130S305QEBM3KD8061, 130S310QEBM3KD8061, 130S320QEBM3KD8061, 130S305QEBM3KD10061, 130S310QEBM3KD10061, 130S320QEBM3KD10061, 130S305QEBM3KD8081, 130S310QEBM3KD8081, 130S320QEBM3KD8081, 130S305QEBM3KD10081, 130S310QEBM3KD10081, 130S320QEBM3KD10081, 130S202QEVM3KD8027, 130S205QEBF1KD8021, 130S205QEBM3KD8027, 130S210QEBM3KD8027, 130S210QEVM3KD8027, 130S305QEBM3KD10087, 130S305QEBM3KD8027, 130S305QEBM3KD8067, 130S305QEBT1KD10021, 130S305QEBT1KD10061, 130S305QEVM3KD8041, 130S305QEVT1KD8041, 130S310QEBF1KD8021, 130S310QEBF2KD10021, 130S310QEBM3KD10047, 130S310QEBM3KD10087, 130S310QEBM3KD8027, 130S310QEBT1KD8027, 130M305QEBM3KG321, 130M305QEBM3KR321, 130M305QEBT1KR401, 130M305QEVM3KR401, 130M310QEBF1KR401, 130M310QEBM3KG241, 130M310QEBM3KG321, 130M310QEBT1KR401, 130M320QEBM3KG241, 130M320QEBT1KR401, 130D205QEBM3KR4821, 130D210QEBM3KR4821, 130D220QEBM3KR4821, 130D305QEBM3KR4821, 130D310QEBM3KR4821, 130D320QEBM3KR4821, 130D205QEVM3KR4821, 130D210QEVM3KR4821, 130D220QEVM3KR4821, 130D305QEVM3KR4821, 130D310QEVM3KR4821, 130D320QEVM3KR4821, 130D220QEBT1KR4821, 130D302QEVM3KR4821, 130D305QEBM3KR4831, 130D305QEVM3KR4831, 130N205QEBM3KD8021, 130N210QEBM3KD8021, 130N220QEBM3KD8021, 130N205QEBM3KD10021, 130N210QEBM3KD10021, 130N220QEBM3KD10021, 130N305QEBM3KD8021, 130S310QEVM3KD10087, 130S310QEVM3KD8041, 130S320QEBT1KD10021, 130M205QEBM3KR401, 130M210QEBM3KR401, 130M220QEBM3KR401, 130M305QEBM3KR401, 130M310QEBM3KR401, 130M320QEBM3KR401, 130M202QEBM3KG241, 130M202QEBM3KR401, 130M202QEBT1KG321, 130M202QEVT1KG241, 130M205QEBM3KG241, 130M205QEBM3KG321, 130M205QEBM3KR321, 130M205QEBT1KG241, 130M205QEBT1KR401, 130M205QEVF1KR401, 130M205QEVM3KR401, 130M210QEBF1KG241, 130M210QEBM3KG241, 130M210QEBM3KR321, 130M220QEBM3KG241, 130M220QEBM3KR321, 130M302QEBM3KG241, 130M302QEBM3KG321, 130M302QEBM3KR401, 130M302QEBT1KG241, 130M302QEBT1KR401, 130M302QEVM3KG241, 130M302QEVM3KR401, 130M305QEBM3KG241, 130N310QEBM3KD8021, 130N320QEBM3KD8021, 130N305QEBM3KD10021, 130N310QEBM3KD10021, 130N320QEBM3KD10021, 130N320QEVT1KD10021, 130S205QEBM3KD8021, 130S210QEBM3KD8021, 130S220QEBM3KD8021, 130S205QEBM3KD10021, 130D205QEBT1KR4841, 130D310QEBT1KR4821, 130D320QBM3KR4821, 130M202WREVM3KR401, 130M2035WBM3KG321, 130M210QBM3KR401, 130M210QEVT1KR401, 130M220QBM3KR401, 130M220QEVT1KR401, 130M302QEBF3KR321, 130M302QEBM3KR321, 130M310QBM3KR401, 130M310QEBM3LG241, 130M3XXQBM3KR401, 130N205QEBT1KD8021, 130S205QEBM3KD8025, 130S210QEBM3KD8025, 130S305QEBT1KD8021, 130M102QBM3KG242S03, 130M305QEBT1KR402S04, 130M310QEBT1KR402S05, 130M320QEBT1KR402S06
