Parker DF2110 Series - Low Pressure In-Line Duplex Filters

DF2110 Series

Parker's DF2110 filter combines a large dirt holding capacity with minimal pressure drop. With a maximum flow rate of up to 1200 l/min., it can handle high-volume filtration needs. Additionally, there is an option for extended housing, which is beneficial for applications involving high viscosity oils and allows for longer service intervals.

Typical applications:

Marine gear lubricating systems
Propulsion systems
Diesel engine lubricating systems
Heavy fuel oil safety filter

For sales or commercial inquiries please contact us at marine@insatech.com.

Features, Advantages & Benefits with DF2120

Parker DF2120 Series - Duplex Filters engineered for heavy-duty performance, offer a remarkable combination of high dirt holding capacity and low pressure drop, ensuring efficient filtration without compromising system performance.

It features a robust cast iron housing and offers various media options, making it suitable for a wide range of applications. With a maximum flow rate of up to 1200 liters per minute, it can handle high-volume filtration needs. Additionally, there is an option for extended housing, which is beneficial for applications involving high viscosity oils and allows for longer service intervals.

Equipped with a DN80 PN25 connection, these filters are designed for seamless integration into your existing systems.

Thus, the DF2110 Series provides you with the following features:

Robust cast iron housing
Several media options
Seamless integration with DN80 PN25 connection
Effective filtration with high dirt holding capacity and low pressure drop
Extended housing option for high viscosity oils and longer service intervals

Need more information? Contact us here

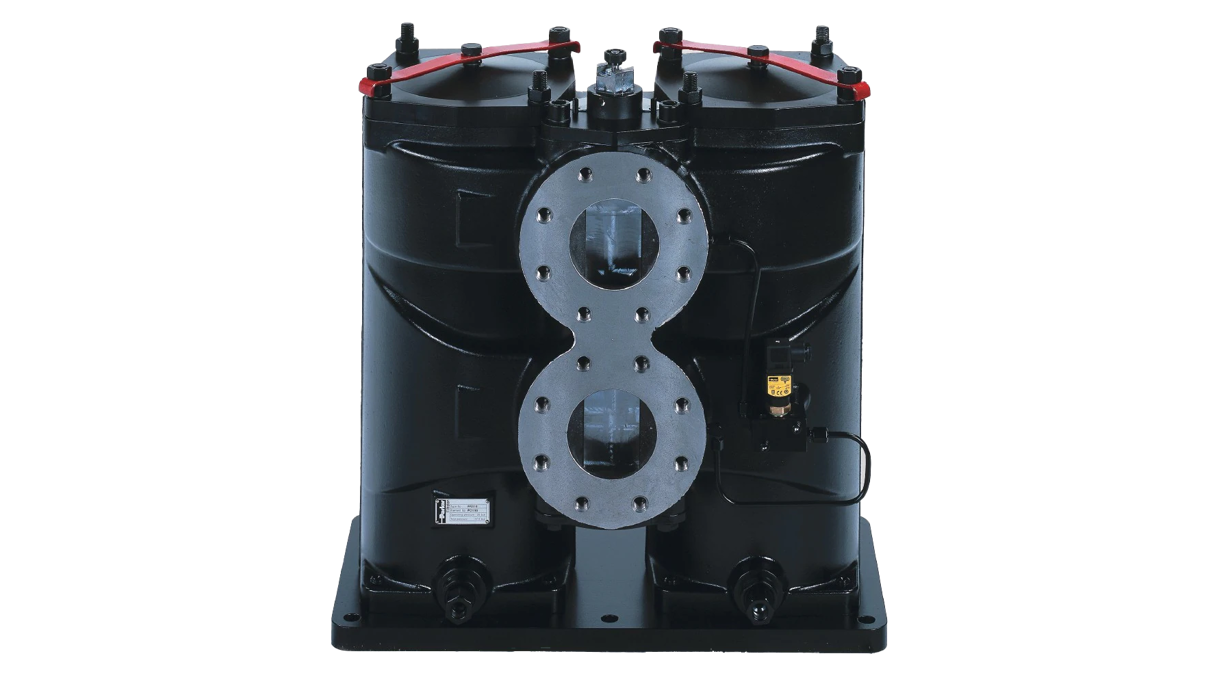

DF2110 Series Parker Low Pressure In Line Duplex Filter Overview

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Duplex filter	One reservoir can be closed for service, vertical installation
Connections	Standard flange size DN80/PN25. Delivered without counter flanges
Operating pressure	Maximum 30 bar
Seal material	Fluoroelastomer
Operating temperature range	-20 to 120°C Fluoroelastomer -20 to +160°C when using metal mesh elements and fluoroelastomer seals
Housing material	Cast iron (GSJ)
Weight	Lenght 1: 200 kg Lenght 2: 240kg
Nominal flow rate (30 cSt)	Length 1: 1000 l/min (60 m3/h) Length 2: 1200 l/min (72 m3/h)
Bypass valve	Standard bypass opening pressure 2.0 bar, optional opening pressure 3.0 bar or a blocked bypass.
Indicator options	Visual, electrical or electronic indicator requires an indicator block. Options: No indicator block Indicator port plugged Visual indicator Electrical indicator Electronic indicator (PNP/N.O.) Electronic indicator (NPN/N.O.)
Filter element	Glassfibre Microglass III Cleanable metal mesh
Fluid compatibility	Suitable for use with regular hydraulic and lubrication oils and fuel oils.

Data Sheet - DF2110 - Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF2110110QVNXD802, DF2110120QVNXD802, DF2110110QVM3HD802, DF2110120QVM3HD802, DF2110110QVT1HD802, DF2110120QVT1HD802, DF21101035WVM3JD802, DF21101035WVNXD802, DF21101035WVPHD801, DF2110105QVPJD801, DF2110110QVPJD801, DF2110120QVPJD801, DF2110120QVT1JD801, DF2110210QVF1JD801, DF2110120QVT1HD801, DF2110210QVPJD801, DF2110220QVT1HD801, DF21101035WVT1HD801, DF21102060WVT1HD801, DF2110110QVT1JD801, DF21102035WVM3HD801P2, DF2110220QVT1M3HD801
