DF2070 Parker Low Pressure In Line Duplex Filter 1

DF2070 Series

The DF2070 series from Parker is low-pressure, high-flow in-line duplex filters. They feature a compact, vertically mountable duplex construction with a robust welded housing and cast iron change over valve section. These filters are designed to handle high flow up to 1800 l/min and pressures of up to 10 bar.

The advantages for you include:

  • Excellent dirt holding capacity combined to low pressure drop
  • Ideal for heavy fuel oil and lube systems (Heavy duty filtration)
  • Multiple media options are available to suit various applications

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Why choose DF2070 Series for Marine Applications?

The DF2070 series from Parker would be a good choice for the marine industry for several reasons:

  • Low pressure and high flow: These filters are designed to handle high flow rates while maintaining low pressure drop. This is crucial in marine applications where efficient filtration of large quantities of fuel or lubricants is required.
  • Robust construction: The filters feature a sturdy construction with welded housing and a cast iron changeover valve section. This ensures durability and reliability in marine environments that may be subject to vibrations, shocks, and high loads.
  • Multiple element media options: The DF2070 series offers various choices of element media, allowing customization of the filtration to specific needs in marine applications. This can be crucial in achieving optimal filtration performance and protection of critical system components.
  • Adequate flow capacity and pressure rating: With a maximum flow capacity of 1800 l/min and a maximum pressure rating of 10 bar, these filters can meet the requirements often found in marine applications where there is a need for filtering large volumes of liquids at moderate pressures.

Overall, the DF2070 series from Parker is big and tall for high flow, and well-suited for the marine industry due to its high performance, durability, and flexibility to meet specific requirements in marine applications.

Typical applications

  • Diesel engine lubricating systems
  • High flow industrial lubricating systems
  • High flow heavy fuel oil systems as safety filter

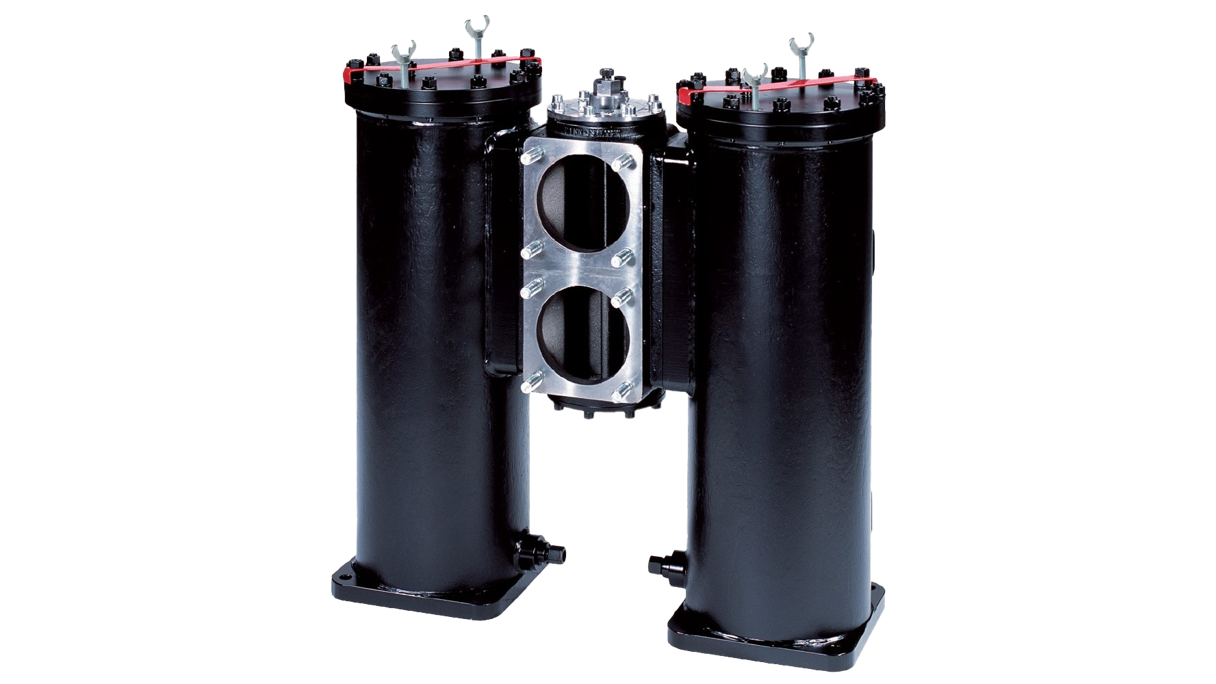

DF2070 Parker Low Pressure In Line Duplex Filter Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Duplex filter

One reservoir can be closed for service, vertical installation.

  • Length 2 includes: 2 elements/side
  • length 3 includes: 3 elements/side.
Connections

Square flanges with port size Ø160 mm. Standard delivery includes blind counter flanges.

Operating pressure

Max. up to 10 bar

Seal material

Fluoroelastomer

Operating temperature

-20 to +100°C

Housing material

Steel / cast iron (GJS)

Weight
  • Length 2: 310 kg
  • Length 3: 400 kg
Nominal flow rate (30 cSt)
  • Length 2: 1500 l/min
  • Length 3: 1800 l/min
Bypass valve

For the primary filter only, opening pressure 2.0 bar

Indicator options

Visual, electrical or electronic indicator requires an indicator block

Primary filter
  • Length 2: two filter elements per reservoir
  • Length 3: three filter elements per reservoir
Filtration materials:
  • Resin impregnated heavy duty cellulose paper 15µm nominal
  • Glassfibre Microglass III
  • Cleanable metal mesh
Secondary filter
  • One filter element per reservoir
  • Filtration material cleanable wire mesh
  • Filtration degree 60 µm
Fluid compatibility

Suitable for use with regular hydraulic and lubrication oils and fuel oils. For heavy fuel oil applications, please specify option P2 (see table 8 in product description) which ensures that filters are delivered with documentation according PED 97/23/EC category II. For other fluids contact us.

  • Data Sheet - DF2070 Series - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF2070210QVNHX1601, DF2070220QVNHX1601, DF20702015NVNHX1601, DF2070210QVM3HX1601, DF2070220QVM3HX1601, DF20702015NVM3HX1601, DF2070210QVT1HX1601, DF2070220QVT1HX1601, DF20702015NVT1HX1601, DF2070310QVNHX1601, DF2070320QVNHX1601, DF20703015NVNHX1601, DF2070310QVM3HX1601, DF2070320QVM3HX1601, DF20703015NVM3HX1601, DF2070310QVT1HX1601, DF2070320QVT1HX1601, DF20703015NVT1HX1601, DF20702035WVT1HX1601, DF2070205QVF1HX1601, DF20702060WVF1HX1601, DF2070305QVT1HX1601
