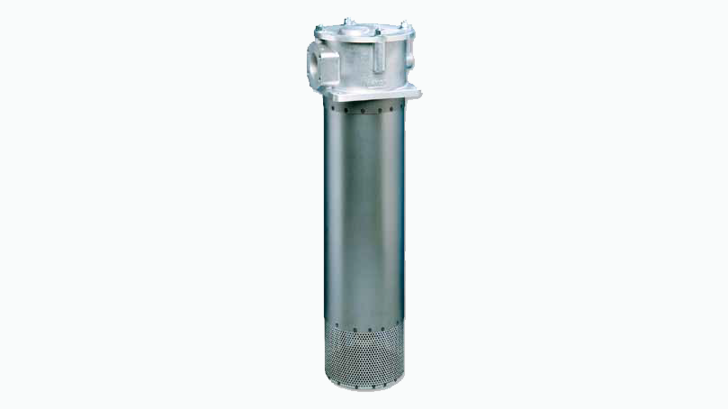

BGT Series
The BGT series from Parker are toptank mounted return line filters, designed to provide high flow performance, that features pre-filtration through a magnetic column and a full flow bypass with low hysteresis.
Product feautures:
For sales or commercial inquiries please contact us at marine@insatech.com.
The BGT Series offers tanktop mounted return line filters that incorporate pre-filtration using a magnet column and a highly responsive bypass with minimal hysteresis. By following the 'In-to-Out' filter principle, the filters prevent contaminated oil from leaking back into the system, helping to maintain the cleanliness of the lubricating oil.
The tanktop mounted design of the BGT Series filters allows easy installation and maintenance, optimizing the use of available space on the vessel.
BGT Filters are available in various versions, and can handling flow rates of up to 2400 l/min. They can handle a maximum working pressure of 10 bar, which making them suitable for marine environments where robust oil filtration is often required
For environmentally friendly filtration, LEIF® elements are available for versions handling flow rates up to 1500 l/min.
This benefits you on the following parameters:
Overall, the BGT Series filter system is ideal for improving the performance and reliability of equipment in marine applications by maintaining a clean and efficient oil circulation loop.
The BGT Series is applicable for various purposes including:

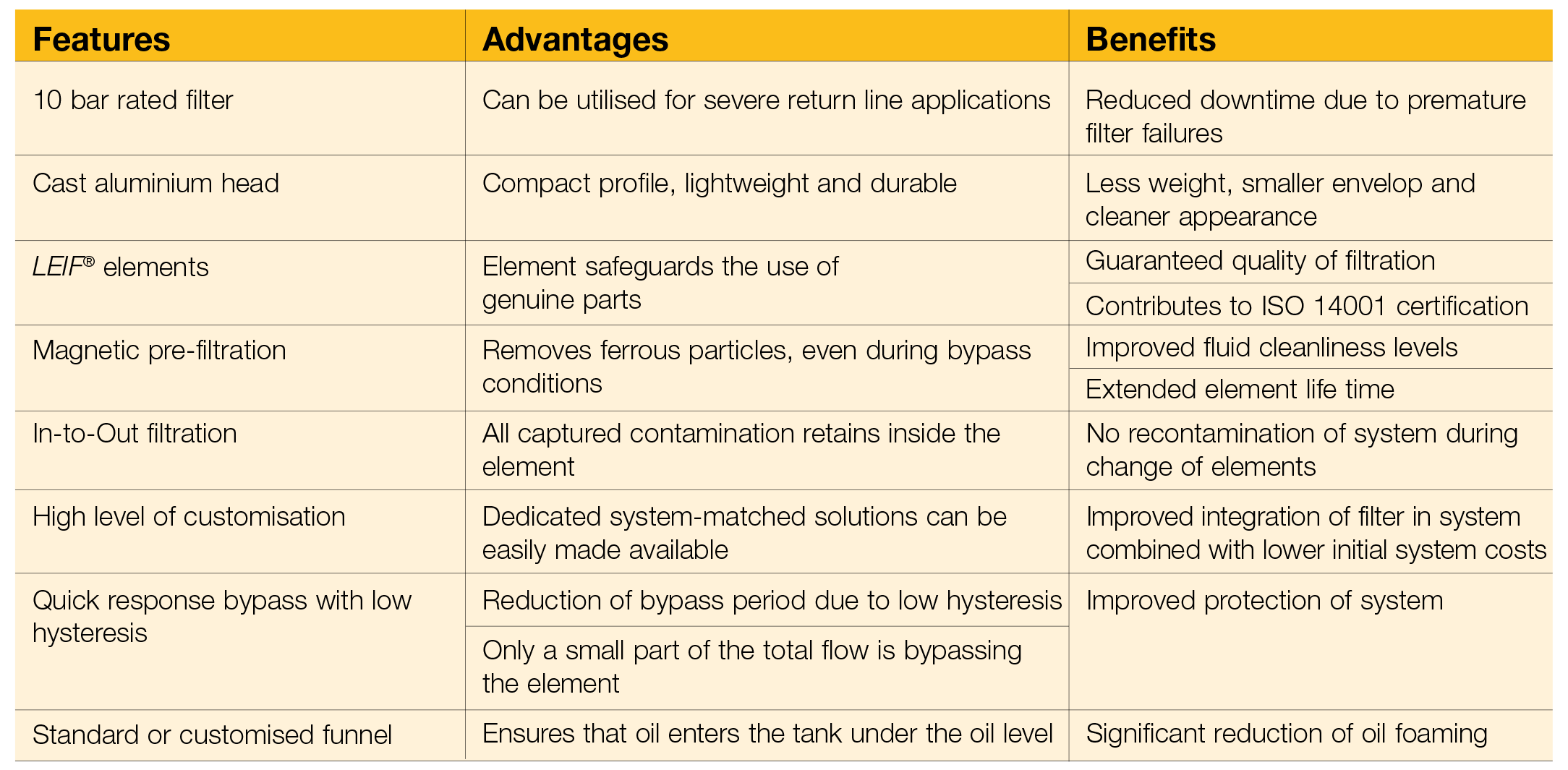

The BGT Series have various features, advantages, and benefits that you can use:
| Operating pressure | Max. up to 10 bar |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Assembly | Tanktop mounted |
||||||||||||||||||
| Connections | Flanges SAE2”, 3” |
||||||||||||||||||
| Filter housing | Aluminum head and cover |
||||||||||||||||||
| Seal material |
|
||||||||||||||||||
| Operating temperature range |
|
||||||||||||||||||
| Bypass setting | Opening pressure 0.8 / 1.5 or 2 bar |
||||||||||||||||||
| Filter element | Degree of filtration determined by multipass test according to ISO 16889 |
||||||||||||||||||
| Flow fatigue characteristics | Filter media is supported so that the optimum fatigue life is achieved |
||||||||||||||||||
| Filtration media |
|
||||||||||||||||||
| Element burst rating | 10 bar (ISO 2941) |
||||||||||||||||||
| Pressure indicator options | Setting 0.7 or 1.2 bar.
|
||||||||||||||||||
| Options |
|
||||||||||||||||||
| Magnetic pack | Standard |
||||||||||||||||||
| Filling port in cover (optional) |
|
||||||||||||||||||
| Filter element | LEIF® element with reusable metal element sleeve. Note: |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
BGT1210QBPER323, BGT1220QBPER323, BGT1205QLBPER323, BGT1210QLBPER323, BGT1220QLBPER323, BGT1510QBPER323, BGT1520QBPER323, BGT1505QLBPER323, BGT1510QLBPER323, BGT1520QLBPER323, BGT1710QBPER323, BGT1720QBPER323, BGT1705QLBPER323, BGT1710QLBPER323, BGT1720QLBPER323, BGT1102QBS1ER323, BGT1110CBPER32MG, BGT1110QBG1ER321, BGT1110QBG1ER323, BGT1110QBPER32E, BGT1110QBPER323, BGT1110QBS1ER323, BGT1110QBS5ER323, BGT1110QLBG1ER323, BGT1110QLBPER32D, BGT1110QLBPER323, BGT1110QLBS1ER323, BGT1110QLBS2ER32MF, BGT1120QBPER323, BGT1120QBS1ER323, BGT1120QLBG1ER323, BGT1120QLBPER321, BGT1120QLBPER323, BGT1120QLBS1ER321, BGT1120QLBS1ER323, BGT1120QVS1ER323, BGT1202QBPER323, BGT1202QLBPER323, BGT1202QLBS1ER323, BGT1202QLBS5ER323, BGT1205QBS1ER323, BGT1205QLBG1ER323, BGT1205QLBPER32M3, BGT1205QLBPER321, BGT1205QLBS1ER323, BGT1210CBPER323, BGT1210QBG1ER323, BGT1210QBG2ER32M3, BGT1210QBPER32B, BGT1210QBPER32MG, BGT1210QBPER324, BGT1210QBS1ER323, BGT1210QBS5ER323, BGT1210QLBG1ER321, BGT1210QLBG1ER323, BGT1210QLBPBR323, BGT1210QLBPER321, BGT1210QLBS1ER321, BGT1210QLBS1ER323, BGT1210QLBS1ER328, BGT1210QLBS5ER323, BGT1210QLVS1ER323, BGT1210QVPER323, BGT1220QBG1ER323, BGT1220QBPER32F, BGT1220QLBG1ER323, BGT1220QLBS1ER323, BGT1305QLBPE3R203, BGT1305QLBS1ER483, BGT1310QBG1ER483, BGT1310QBS1ER481, BGT1310QBS1ER483, BGT1310QLBPER483, BGT1310QLBS1ER483, BGT1320QBG1ER483, BGT1320QBS1ER483, BGT1320QLBPER481, BGT1320QLBPER483, BGT1320QLBS1ER483, BGT1402QBPER483, BGT1402QLBG1ER481, BGT14040WBPER481, BGT1405QLBS1ER483, BGT1410CBS1ER481, BGT1410QBPER483, BGT1410QBPER488, BGT1410QBS1ER483, BGT1410QLBG1ER483, BGT1410QLBPER483, BGT1410QLBS1ER48A, BGT1410QLBS1ER483, BGT1420QLBPER483, BGT1420QLBS1ER483, BGT1420QVS1ER483, BGT1502QBS1ER483, BGT1502QLBG1ER481, BGT1505QBPBR483, BGT1505QBPER481, BGT1505QBS1ER483, BGT1505QLBG1ER483, BGT1505QLBPER483, BGT1505QLBS1ER48E, BGT1505QLBS1ER481, BGT1505QLBS1ER483, BGT1505QVS1ER483, BGT1510CBG1ER483, BGT1510QBG1ER483, BGT1510QBPER481, BGT1510QBPER483, BGT1510QBPE3R201, BGT1510QBS1ER483, BGT1510QLBG1ER481, BGT1510QLBG1ER483, BGT1510QLBPER481, BGT1510QLBPER483, BGT1510QLBS1ER481, BGT1510QLBS1ER483, BGT1510QVPER481, BGT1510QVPER483, BGT1520QBS1ER483, BGT1520QLBG1ER481, BGT1520QLBG1ER483, BGT1520QLBPER481, BGT1520QLBPER483, BGT1520QLBS1ER483, BGT1602QLBG1ER481, BGT1602QLBPER483, BGT1605QLBS1ER481, BGT1605QLBS1ER483, BGT1610QBPER483, BGT1610QBS1ER483, BGT1610QLBG1ER483, BGT1610QLBS1ER481, BGT1610QLBS1ER483, BGT1610QLVS1ER483, BGT1620QBPER481, BGT1620QBS1ER483, BGT1620QLBPER481, BGT1702QBS1ER483, BGT1705QBG1ER481, BGT1705QBS1ER483, BGT1705QVPER483, BGT1710CBPER481, BGT1710QBG1ER483, BGT1710QBPER483, BGT1710QBS1ER481, BGT1710QBS1ER483, BGT1710QBS5ER483, BGT1710QVS1ER483, BGT1720QBG1ER483, BGT1720QBPER483, BGT1720QBS1ER483, BGT1802QBS1ER483, BGT1805QBG1ER483, BGT1805QVS1ER483, BGT1810QBG1ER483, BGT1810QBS1ER483, 2037039017, 2037050017, 2037060008, 2037100014, 2037200002, 2037200005, BGT1110QLBG3BR321, BGT1205QBPER323S30, BGT1205QBS18ER323S97, BGT1205QLBG1ER321, BGT1210QBPBR323S26, BGT1210QBPER323S27, BGT1510QBPER48C, BGT1110QBP2ER32F, BGT1205QBP2ER32E, BGT11D20QBPER32E, BGT1110QBS1HR323, BGT1305QLBG1ER483, BGT11B10QBP2HR32A, BGT17040WBPER483, BGT1220QBP2ER32E, BGT1610QLBPER483, BGT11C10QBP2ER32B, BGT1110QLBG3BR323, BGT1210QBPER32MH, BGT1102QLBS1ER323, BGT1105QBPER324, BGT1105QLVS1ER323, BGT1110QBP2ER32MB, BGT11E10QBPER32M3, BGT1202QBG1ER323, BGT1202QLBS2HR32M3, BGT12040WBPBR32E, BGT1205QBS1HR323, BGT1210AVPBR323EX, BGT1210QBP2BG324, BGT1210QBP2ER32A, BGT1210QBP2HG32E, BGT1210QBPXR323, BGT1210QLBPER32E, BGT1220QBS1HR321, BGT1310QLBPER481, BGT1320QLBS1ER481, BGT1410QLBPER481, BGT1502QLBPER483, BGT1510ABPER48G, BGT1510QBP2BR483, BGT1510QVPER483EX, BGT1520QBS2E3R203, BGT1602QLBS1ER483, BGT1605QLBPE3R203, BGT1605QLBPER483, BGT1610ABPER48G, BGT1610AVPER483EX, BGT1610QBG1ER483, BGT1620QLBS1ER483, BGT1705QBPER483, BGT1710ABPER483, BGT1710QBPER481, BGT1802QBPXR483, BGT1805QBPER483, BGT1805QBPXR483, BGT1805QBS1ER483, BGT1210QBG1BR323, BGT17XXXBPER484
