70 Series Parker

70/70 Eco Series (70B, 70T, 70L)

A proven filtration system that offers space and piping reduction and high levels of system protection. The 70/70 Eco Series provides a range of head and bowl sizes along with various connection options. Maximum pressure of 420 bar and a maximum flow rate of 450 l/min.

Product features:

  • Fatigue tested to full pressure rating
  • Several head options, bowl lengths and connection sizes
  • Microglass lll glassfibre and Ecoglass lll media is available
  • Visual, electrical and electronic indicators available

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Flexibility and Environmental Responsibility Unite

The 70/70 Eco Series is a collection of high-pressure filters, renowned for their exceptional performance. These filters are designed to withstand pressures up to 420 bar while maintaining a remarkable flow rate of 450 l/min. With their advanced technology, they provide robust protection for systems that are sensitive to dirt particles.

Moreover, for those concerned about the environment, the 70 Series offers the option of utilizing Ecoglass III elements, which are eco-friendly and in line with sustainable practices.

Need more information? Contact us here

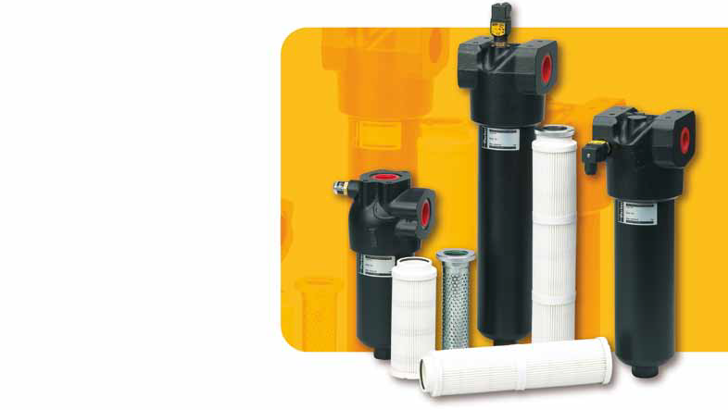

70 Series Parker Fdhb500ukv2

High-Pressure Filters: Meeting Demanding Applications with Optimal Protection

These high-pressure filters are designed to satisfy demanding applications, and with multiple mounting options, this filter series is suitable for a wide range of applications.

The series offers several bowl lengths to minimize pressure drop for each application. For critical applications, a no-bypass, high-strength element combination ensures maximum protection.

Exactly what you need? Contact us here

Which benefits does the 70 / 70 Eco Series have?

The 70 / 70Eco Series have various features, advantages, and benefits that you can use:

3 models available

  • 70L: High pressure filter with L-port
  • 70T: High pressure filter with T-port
  • 70B: High pressure filter with side manifold mounting
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Pressure ratings
  • Maximum allowable operating pressure 420 bar (350 bar Length 4)
  • Filter housing pressure pulse fatigue tested: 106 pulses 0 - 414 bar
Connections

Threads:

  • G1
  • G11/4
  • G11/2 (ISO 228/1)

Flanges:

  • 11/4" SAE 3000-M
  • 11/2" SAE 3000-M
  • 11/4" SAE 6000-M,
  • 11/2" SAE 6000-M
Filter housing
  • Head material cast iron (GSI)
  • Bowl material steel. Max torque 40 Nm
Seal material
  • Nitrile
  • Fluoroelastomer
Operating temperature range
  • -40 to 100°C Nitrile
  • -20 to +120°C Fluoroelastomer
Bypass valve

Opening pressure 3.5 bar

Filter element

Degree of filtration determined by Multipass-test according to ISO 16889.

Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)

Microglass III

Supported with epoxy coated metal wire mesh, end cap material reinforced composite and metal inner core.
Collapse rating 20 bar (ISO 2941)

Ecoglass III

Supported with plastic net, end cap material reinforced composite. No metal parts. Collapse rating 10 bar (ISO 2941). Filter element can only be used together with reusable FEA Eco-adapter.
Note: Ecoglass III contributes to ISO 14001 quality

High collapse elements

(To be used when no bypass function in filter housing).
Microglass III media supported with epoxy coated metal wire mesh on upstream and stainless steel on downstream, end cap material steel. Strong metal inner core. Collapse rating 210 bar (ISO 2941)

Indicator options

Indicating differential pressure: 2.5 ± 0.3 bar or 7.0 ± 0.5 bar.

2.5 bar indicators to be used with 3.5 bar bypass valve and 7.0 bar indicators with no bypass function.

  • Visual M3.
  • Electrical T1.
  • Electronic F1(PNP).
  • Electronic F2(NPN).
Fluid compatibility

Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please contact us.

  • Data Sheet - 70/70 Eco Series - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

70B102QBPKX321, 70B102QHBPXX322, 70B105QBT1KX321, 70B105QHBF3NX322, 70B105QHBPXX322, 70B105QHBT1NX322, 70B110QBPKX321, 70B120QBPKX321, 70B202QBPKX321, 70B202QHBPXX324, 70B205QBPKX321, 70B205QHBPXX322, 70B210QBPKS12, 70B210QBPKX321, 70B210QBPMX321F1, 70B210QEBPKX321, 70B210QEBT1KX321, 70B210QHBM3NX322, 70B210QHBPNX322, 70B210QHBPXX322, 70B210QVPKX321, 70B220QBPKX321, 70B220QBPKX321S52, 70B302QBPKX321, 70B305QHBF3NX322, 70B305QHBPXX322, 70B310QBPKX321, 70B310QBPKX324, 70B310QEBPKX321, 70B310QHBPXX322, 70B310QHVPXX322, 70B310QVPKX321, 70B320QBPKX321, 70B402QBPKX321, 70B402QHVT1NX322, 70B405QBF1KX321, 70B405QHBF1NX322, 70B405QHBT1NX322, 70B410QBPKX321, 70B410QHBPXX322, 70L102QHBPXG162, 70L1060WBPKG161, 70L110QBM3KG161, 70L110QBPKG161, 70L120QBPKG161, 70L202QBPKG201, 70L205QBM3KG241, 70L205QBPKG161, 70L205QBPKG201, 70L205QHBPXG162, 70L210QBM3KG241, 70L210QBPKG161, 70L210QBPKG201, 70L210QBPKH201, 70L210QEBPKG241, 70L210QHBPXG162, 70L220QBPKG201, 70L220QBPKG204, 70L220QHBPXG162, 70L302QBPKG201, 70L305QBPKG201, 70L305QEBT1KG201, 70L310QBPKG201, 70L310QBPKG241, 70L310QBPKH241, 70L310QBPKR241, 70L310QEBPKG241, 70L310QHVPXG202, 70L320QBPKG161, 70L320QBPKG201, 70L320QBPKG241, 70L320QBPKG244, 70L405QBPKG201, 70L405QBPKG241, 70L405QHBT1NG242, 70L405QHVF1NH242, 70L410QBPKG161, 70L410QBPKG241, 70L410QBPKH204, 70L410QBPKR241, 70L410QEBPKR241, 70L410QEBPKR244, 70L410QEBT1KR241, 70L420QBPKG161, 70L420QEBPKG241, 70T110QBM3KG161, 70T110QBPKG161, 70T110QBPKG166, 70T205QBPKG161, 70T210QBPKG201, 70T210QBPKG206, 70T210QBPKH201, 70T210QEBM3KG201, 70T210QEBPKG201, 70T210QHBPXG162, 70T220QEBPKG241, 70T302QHBPXG242, 70T310QBPKG241, 70T310QHBM3NG202, 70T410QBM3KG241, 70T410QEBM3KH201, 70T410QVPKH201
