45M Series Parker Medium Pressure In Line Filter

45M/45 Eco Series

Medium pressure filters that provides an excellent solution for safeguarding system elements at lower pressures. These filters present a practical and top-notch substitute for low specification spin-on filters.

Product features:

  • Cast iron head and steel bowl
  • High dirt holding capacity
  • Protecting system compoments at even lower pressures
  • Maximum pressure 40 bar. Maximum flow 260 l/min
  • An ideal filter series for harsh environments

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Optimal Choice for Harsh and Demanding Conditions

Approved for use in engine rooms and mines and are specifically designed to address the challenge of safeguarding system components under lower pressures.

These filters excel in harsh environments, thanks to their robust housing. The 45M Series incorporates a durable cast iron head and steel bowl design. The filter bowl is ingeniously crafted for swift and hassle-free element replacement, and offers the option to choose between Microglass III or Ecoglass III filter media, with a maximum pressure rating of 40 bar and a maximum flow rate of 260 l/min.

Moreover, the ECO Series elements significantly reduce waste by over 50% through the utilization of a reusable element core. This series ensures thereby cost-effective replacement of filter elements and lower disposal expenses.

Exactly what you need? Contact us here

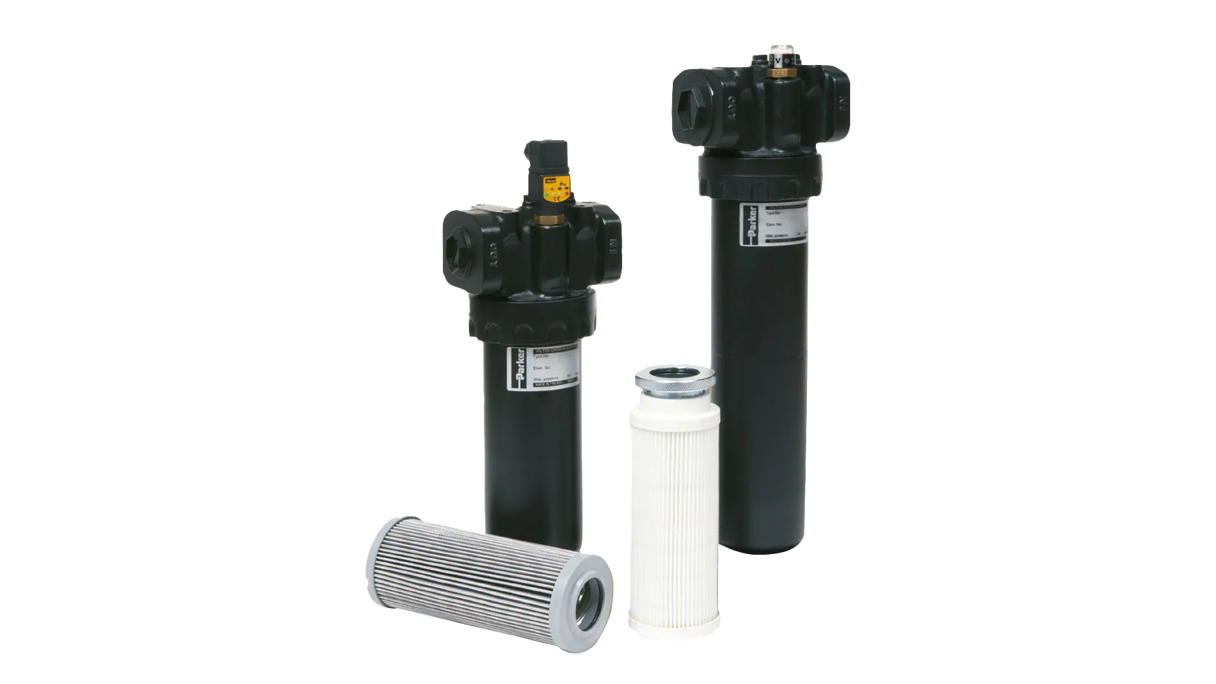

45M Series Parker Medium Pressure In Line Filter Overview

Which benefits does the 45M Series have?

The 45M Series have various features, advantages, and benefits that you can use:

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Operating pressure

Maximum 40 bar

Filter housing pressure pulse fatigue tested: 106 pulses 0-40 bar

Connections
  • Threads G1
  • G11/4 (ISO 228/1)
  • Flange SAE 11/2” 3000-M.
Filter housing
  • Head material cast iron (GSI)
  • Bowl material steel
Seal material
  • Nitrile
  • Fluoroelastomer
Operating temperature range
  • -40 to 100°C Nitrile
  • -20 to +120°C Fluoroelastomer
Bypass valve

Opening pressure 3.5 bar

Filter element

Degree of filtration determined by Multipass-test according to ISO 16889.

Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)

Microglass III

Supported with epoxy coated metal wire mesh, end cap material reinforced composite and metal inner core.
Collapse rating 20 bar (ISO 2941)

Ecoglass III

Supported with plastic net, end cap material reinforced composite. No metal parts. Collapse rating 10 bar (ISO 2941). Filter element can only be used together with reusable FEA Eco-adapter.
Note: Ecoglass III contributes to ISO 14001 quality

Indicator options

Indicating differential pressure: 2.5 ± 0.3 bar.

  • Visual M3.
  • Electrical T1.
  • Electronic F1(PNP).
  • Electronic F2(NPN).
Fluid compatibility

Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please contact us.

  • Data Sheet - 45M - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

45M110QBPKG161, 45M120QBPKG161, 45M110QEBPKG161, 45M120QEBPKG161, 45M110QBPKG201, 45M120QBPKG201, 45M110QEBPKG201, 45M120QEBPKG201, 45M210QBPKG161, 45M220QBPKG161, 45M210QEBPKG161, 45M220QEBPKG161, 45M210QBPKG201, 45M220QBPKG201, 45M210QEBPKG201, 45M220QEBPKG201, 45M210QBPKG241, 45M220QBPKG241, 45M210QEBPKG241, 45M220QEBPKG241, 45M310QBPKG161, 45M320QBPKG161, 45M310QEBPKG161, 45M320QEBPKG161, 45M310QBPKG201, 45M320QBPKG201, 45M310QEBPKG201, 45M320QEBPKG201, 45M310QBPKG241, 45M320QBPKG241, 45M310QEBPKG241, 45M320QEBPKG241, 45M410QBPKG201, 45M420QBPKG201, 45M410QEBPKG201, 45M420QEBPKG201, 45M410QBPKG241, 45M420QBPKG241, 45M410QEBPKG241, 45M420QEBPKG241, 45M102QBPKG161, 45M102QBT1KG201, 45M102QEBPKG161, 45M105QBM3KG161, 45M105QBPKG161, 45M105QEBM3KG161, 45M105QEBPKG161, 45M105QEBT1KG161, 45M110QBM3KG161, 45M110QBPXG162, 45M110QBT1KG161, 45M110QEBF1KG201, 45M110QEBM3KG161, 45M110QEBM3KG201, 45M110QEBT1KG161, 45M110QEVPKG161, 45M110QVM3KG161, 45M110QVPKG161, 45M120QBM3KG201, 45M120QBPKR241, 45M120QBT1KG161, 45M120QEBF1KG201, 45M120QEBT1KG161, 45M120QVPXG162, 45M120QVT1KG161, 45M202QBPKG161, 45M202QBPKG201, 45M202QBT1KG161, 45M202QEBPKG161, 45M205QBM3KG161, 45M205QBM3KR241, 45M305QBPKG161, 45M305QBPKG201, 45M305QBPKG241, 45M305QBT1KG241, 45M305QEBM3KG161, 45M305QEBPKG161, 45M305QEBPKG241, 45M310QBM3KG161, 45M310QBM3KG241, 45M310QBPKR241, 45M310QBPXG162, 45M310QBPXG202, 45M310QBPXG242, 45M310QBT1KG241, 45M310QBT1NG242, 45M310QEBPXG162, 45M310QEBT1KG241, 45M320QBF1KG161, 45M320QBPXG242, 45M320QEBPKR241, 45M320QEBT1KG161, 45M320QVPKG241, 45M320QVPKR241, 45M402QBPKG241, 45M402QEVM3KG241, 45M405QBPXG242, 45M405QEBM3KG201, 45M405QEBM3KG241, 45M405QEBPKG241, 45M405QEVM3KG241, 45M410QBM3KG241, 45M410QBPKG161, 45M410QEBM3KG201, 45M410QEBM3KG241, 45M410QEBPKR241, 45M420QBF1KG241, 45M420QBT1KG161, 45M205QBPKG161, 45M205QBPKG201, 45M205QBPKG241, 45M205QBPKR241, 45M205QEBPKG161, 45M205QEBPKG241, 45M205QVPKG161, 45M210QBF3KR241, 45M210QBM3KG241, 45M210QBPKR241, 45M210QBPXG162, 45M210QBT1KG201, 45M210QBT1KG241, 45M210QEBM3KG201, 45M210QEBPKR241, 45M210QEBPXG162, 45M210QVF2KG201, 45M220QBM3KG241, 45M220QBPKR241, 45M220QBPXG162, 45M220QBPXG242, 45M220QBT1KG161, 45M220QBT1KG201, 45M220QEBM3KG201, 45M220QEVPKG161, 45M220QEVPKG201, 45M220QVF2KG201, 45M220QVM3KG161, 45M220QVM3KG241, 45M220QVPKG201, 45M302QBPKG161, 45M302QBPKG201, 45M302QBPKG241, 45M302QBT1KG241, 45M302QEBPKG241, 45M302QEBT1KG201, 45M305QBM3KG161, 45M420QEBM3KG241, 45M420QEBPXG242, 45M420QEBT1KG161, 45M102QEVF2HG161, 45M320QBT1KG201, 45M310QVM3KG241, 45M310QBPXR242, 45M310QBPKG161S13, 45M3060WBPKG241, 45M3060WBPKG161, 45M305QVPKG161, 45M305QEBT1KG161, 45M220QVF1KG201, 45M402QVPXG242, 45M220QBPHG161, 45M220QBM3KG161, 45M210QVF1KG201, 45M210QHBPXG162, 45M210QBPKG201F1, 45M205QVPXSG161, 45M205QHBT1NG202, 45M205QBM3KG241, 45M2035WVM3KG201, 45M202QEVF1KG201, 45M220QBM3KG201EX, 45M420QBPHG241, 3181703447, 45M110QEPKG161YS56, 45M1200WVM3KG161, 45M205QEVF1KG201, 45M220QBM3KG241S50
