18P / 28P / 38P Series

The 18/28/38P Series offers a variety of head and bowl sizes, as well as connection options, providing flexibility to suit your specific needs. As a standard feature, these filters are equipped with Microglass lll glass fiber media, ensuring efficient filtration. Maximum pressure rating of 414 bar and a maximum flow rate of 700 l/min.

Features and advantages for you include:

  • Robust housing for heavy duty applications
  • Several connection options
  • Easy mounting
  • Multiple bypass settings up to 7 bar
  • Microglass III glassfibre media is standard

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

A Global Filter Solution for Heavy-Duty Hydraulics

The 18/28/38P series of high-pressure filters by Parker Filtration has been specifically engineered to meet the demanding requirements of mobile and industrial applications worldwide. This new series boasts a global design with metric mounting and optional ISO 6149 ports.

When installed downstream of the pump, these filters, equipped with high-capacity Microglass III elements, provide exceptional protection to system components. Their wide range of filtration capabilities ensures reliable performance and efficient removal of contaminants.

For added reliability, standard filters in this series come equipped with a proven spool type bypass valve, offering an additional layer of protection. In more critical applications like servo or proportional controls, a high-strength element combination without bypass ensures maximum system protection.

A distinguishing feature of this series is its modular low hysteresis differential pressure indicator, which sets new standards in performance. Through rigorous testing, its accuracy and foolproof design have been proven, making it a significant advancement in indicator technology.

Need more information? Contact us here

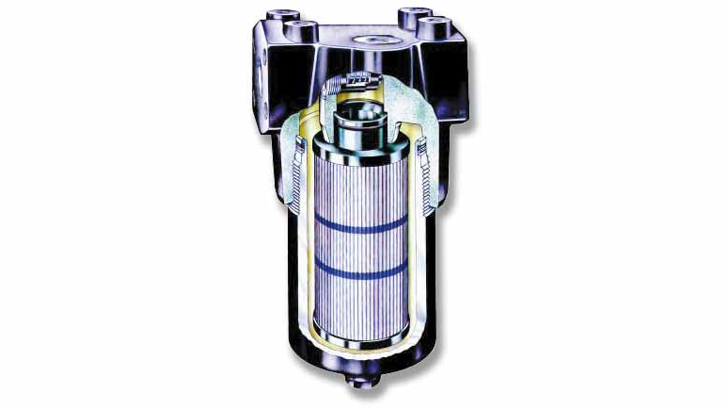

18 28 38P Series Parker Fdhb500ukv2

Which benefits does the 18/28/38P Series have?

The 18/28/38P Series have various features, advantages, and benefits that you can use:

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Pressure ratings
  • Maximum allowable operating pressure 414 bar
  • Filter housing pressure pulse fatigue tested: 106 pulses 0 - 414 bar
Connections

Inlet and outlet connections are threaded internally or flange faced.

18P:

  • BSPF(G): 3/4”
  • SAE: 12
  • ISO 6149: M27
  • Flange SAE 6000: 3/4”
  • Flange SAE 6000-M*: 3/4”

28P:

  • BSPF(G): 1”
  • SAE: 16
  • ISO 6149: M33
  • Flange SAE 6000: 1”
  • Flange SAE 6000-M*: 1”

38P:

  • BSPF(G): 11/4”, 11/2”
  • SAE: 20, 24
  • ISO 6149: M42, M48
  • Flange SAE 6000: 11/4”
  • Flange SAE 6000-M*: 11/4”

Note: *6000-M is a SAE style with appropriate metric fixing threads

Filter housing
  • Head material cast iron (GSI)
  • Bowl material steel
Seal material
  • Nitrile
  • Fluoroelastomer
Operating temperature range
  • -40 to 100°C Nitrile
  • -20 to +120°C Fluoroelastomer
Bypass valve & indicator settings
  • Bypass 3.5 bar: Indicator 2.5 bar
  • Bypass 7.0 bar: Indicator 5.0 bar
Filter element

Degree of filtration determined by Multipass-test according to ISO 16889.

Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)

Microglass III

Supported with epoxy coated metal wire mesh, end cap material reinforced composite and metal inner core.
Collapse rating 20 bar (ISO 2941)

High collapse elements

(To be used when no bypass function in filter housing).
Microglass III media supported with epoxy coated metal wire mesh on upstream and stainless steel on downstream, end cap material steel. Strong metal inner core. Collapse rating 210 bar (ISO 2941).

Indicator options

Indicating differential pressure: 2.5 ± 0.3 bar.

  • Visual M3.
  • Electrical T1.
  • Electronic F1(PNP).
  • Electronic F2(NPN).
Weight

18P:

  • Length 1: 4.2 kg
  • Lenght 2: 5.7 kg

28P:

  • Length 1: 6.7 kg
  • Lenght 2: 9.2 kg

38P:

  • Length 1: 15.8 kg
  • Lenght 2: 20.3 kg
Fluid compatibility

Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please contact us.
