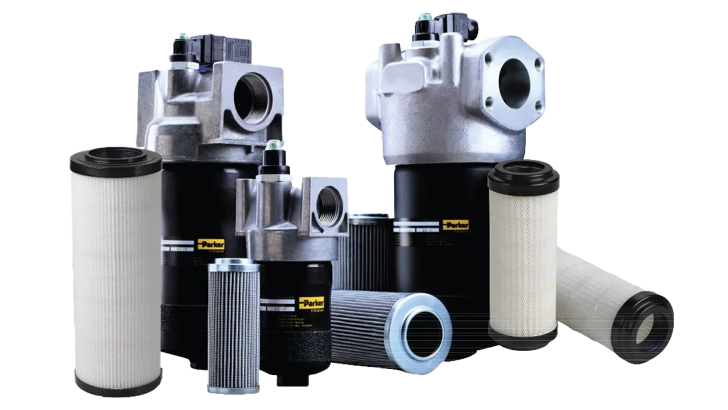

Parker 15CN / 40CN / 80CN - Medium Pressure In-Line Filters

CN Series

The CN Series utilizes a cast aluminium head and spin-on bowl and can be specified with Microglass lll or Ecoglass lll filter media. Maximum pressure 70 bar. Maximum flow 600 l/min. Excellent performance value from a globally proven, reliable medium pressure filter.

Product features:

CN utilizes a cast aluminium head and bowl.
Excellent fatigue pressure ratings.
Maximum pressure 70 bar. Maximum flow 600 l/min.
An economic ‘multi-purpose’ filter solution.

For sales or commercial inquiries please contact us at marine@insatech.com.

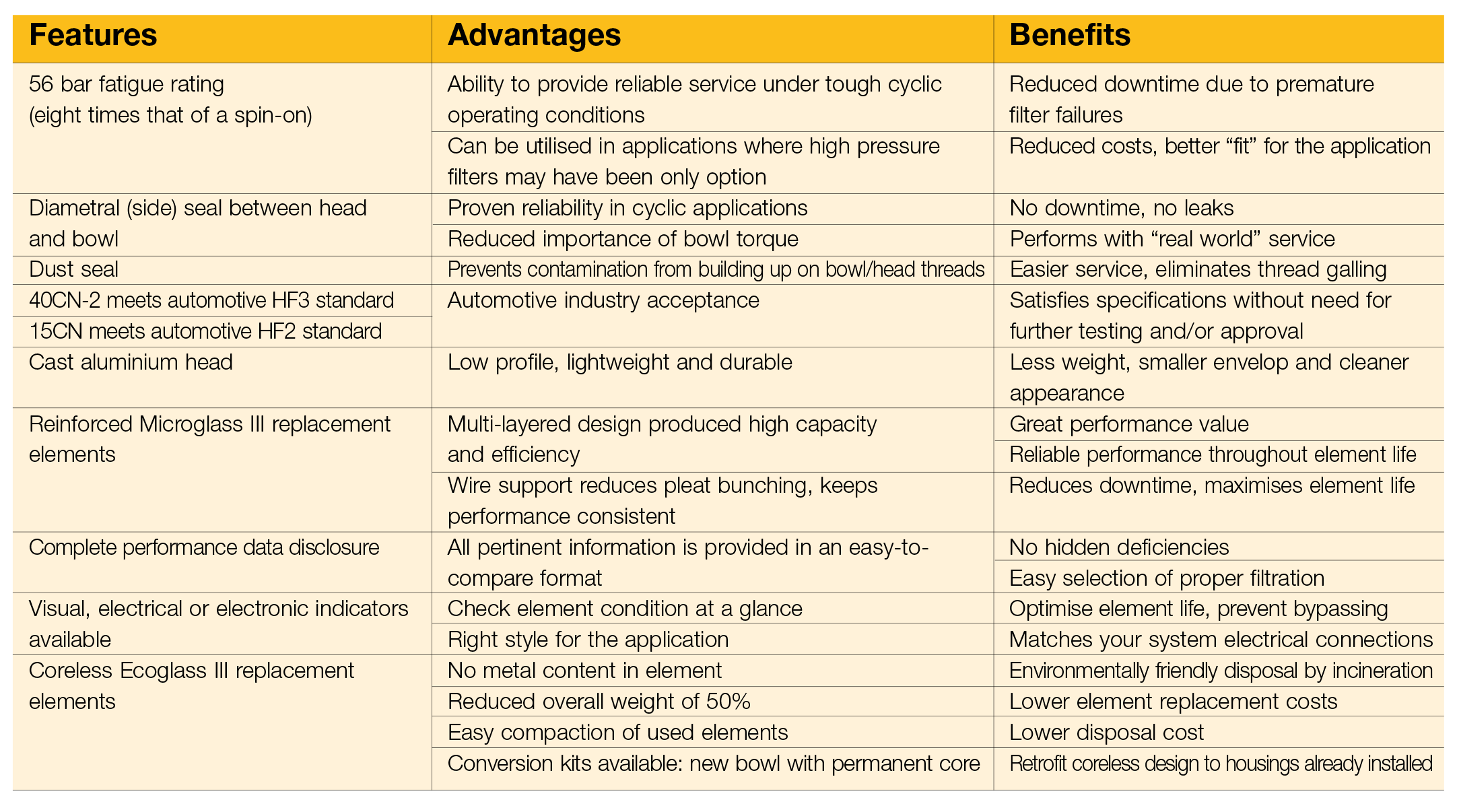

Which benefits does the 15/40/80 CN Series have?

The 15/40/80 CN Series have various features, advantages, and benefits that you can use:

A cost-effective filter solution

This exceptional line of medium pressure filters caters to a wide range of applications in the marine sector. Whether it's hydraulic systems, engine rooms, or other critical components, the Parker "CN" Series Filters offer an economical solution with outstanding fatigue pressure ratings.

In the past, limitations imposed by traditional spin-on can filters or the higher-cost high-pressure filters restricted the efficiency of these applications. However, the innovative "CN" Series bridges that gap, providing a cost-effective and reliable option.

To further enhance its environmental compatibility, the "CN" Series is now equipped with Ecoglass III elements. These environmentally friendly filter elements contribute to sustainability efforts while maintaining superior filtration performance.

Exactly what you need? Contact us here

Typical applications

Compressor lube oil
Off-line filter loops
Machine tools (Automotive standard)
Hydrostatic drive charge pumps
Mobile equipment
Pilot lines for servo controls
Oil patch drilling equipment
Injection moulding

Need more information? Contact us here

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Pressure ratings	Maximum allowable operating pressure: 70 bar Rated fatigue pressure: 56 bar
Connections	Several threaded port options available, flange faced ports available on 80CN. 15 CN: BSPF(G): 1”, 3/4” SAE: 12, 16 ISO 6149: M27 Metric 3000-M: - 40CN: BSPF(G): 11/4”, 11/2” SAE: 16, 24 ISO 6149: M33 Metric 3000-M: - 80CN: BSPF(G): 11/2”, 2” SAE: 24, 32 ISO 6149: M42, M48 Metric 3000-M: 2”
Filter housing	Head material aluminium Bowl material hard anodized aluminium
Seal material	Fluoroelastomer Nitrile
Operating temperature range	-40 to +100°C Nitrile -20 to 120°C Fluoroelastomer
Bypass valve & indicator settings	Bypass 1.7 bar: Indicator 1.2 bar Bypass 3.5 bar: Indicator 2.5 bar
Filter element	Degree of filtration determined by Multipass-test according to ISO 16889
Flow fatigue characteristics	Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)
Microglass III (available by request)	Supported with epoxy coated metal wire mesh, end cap material reinforced composite and metal inner core. Collapse rating 20 bar (ISO 2941)
Ecoglass III	Supported with plastic net, end cap material reinforced composite. No metal parts. Collapse rating 10 bar (ISO 2941). Filter element can only be used together with bowl including Eco-adaptor. Note: Ecoglass III contributes to ISO 14001 quality
Par-Gel	Water removal media absorbent copolymer laminate media with ability to remove free water from mineral based and synthetic fluids available for 40CN and 80CN.
Indicator options	Visual M3 Electrical T1 Electronic F1(PNP) Electronic F2(NPN)
Weight	15CN: Length 1: 1.1 kg Length 2: 1.6 kg 40CN: Length 1: 2.0 kg Length 2: 2.5 kg 80CN: Length 1: 5.6 kg Length 2: 6.9 kg
Fluid compatibility	Suitable for use with mineral and vegetable oils, and some synthetic oils.

Data Sheet - 15/40/80 CN- Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

15CN105QVPKG161, 15CN105QVXKG161, 15CN110QVPKG161, 15CN110QVXKG161, 15CN120QVPKG161, 15CN120QVXKG161, 15CN205QVPKG161, 15CN205QVXKG161, 15CN210QVPKG161, 15CN210QVXKG161, 15CN220QVPKG161, 15CN220QVXKG161, 40CN105QVPKG241, 40CN105QVXKG241, 40CN110QVPKG241, 40CN110QVXKG241, 40CN120QVPKG241, 40CN120QVXKG241, 40CN205QVPKG241, 40CN205QVXKG241, 40CN210QVPKG241, 40CN210QVXKG241, 40CN220QVPKG241, 40CN220QVXKG241, 40CN305QVPKG244, 40CN305QVXKG244, 40CN310QVPKG244, 40CN310QVXKG244, 40CN320QVPKG244, 40CN320QVXKG244, 80CN105QVPKG324, 80CN105QVXKG324, 80CN110QVPKG324, 80CN110QVXKG324, 80CN120QVPKG324, 80CN120QVXKG324, 80CN205QVPKG324, 80CN205QVXKG324, 80CN210QVPKG324, 80CN210QVXKG324, 80CN220QVPKG324, 80CN220QVXKG324
