Parker PoleStar Smart-E Refrigeration Dryers

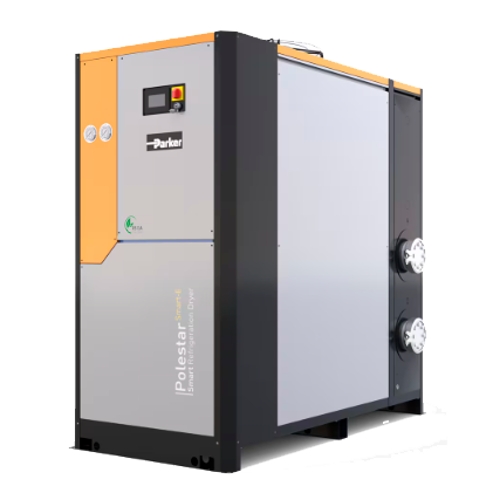

Parker Polestar Smart E Air Refrigeration 1X1

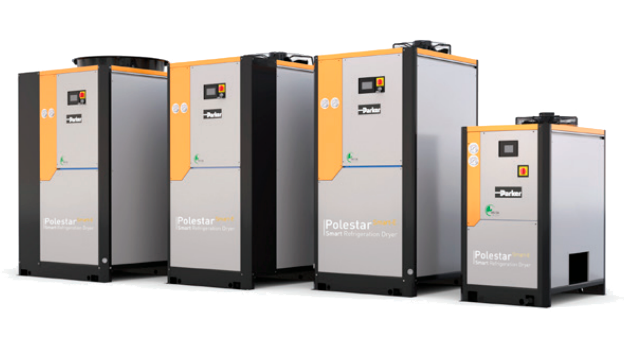

PoleStar Smart-E Medium to Large

PoleStar Smart refrigeration dryers efficiently remove water from compressed air while minimizing energy use and pressure drop. With SmartSave technology, they adapt to load conditions for precise dew-point control and reduced power consumption.

The heat-exchanger-SmartPack ensures minimal pressure drop, lowering operational costs and CO₂ emissions.

PoleStar dryers:

Reduces refrigerant charge up to 50%
Low best-in-class pressure drop
Energy-saving
Industry 4.0 ready

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Cut Energy Costs, Boost Performance

The Smart Way to Dry Compressed Air

Parker Hiross PoleStar Smart-E refrigeration dryers are built for performance and sustainability. Featuring the innovative SmartPack aluminium heat exchanger, they pre-cool incoming compressed air to reduce energy use. The high-efficiency design minimizes pressure drop, lowers absorbed power, and cuts refrigerant volume by up to 40% compared to traditional solutions.

Smart-E dryers offer lower operating costs, thanks to features like electronic HGV control, scroll compressors, and energy-saving modes that cycle the refrigerant compressor at partial load. From model PSE 220 and up, enjoy enhanced control with touch screens, LED status indicators, and variable speed fans for optimized performance.

Industry 4.0 ready, these dryers include remote communication protocols, web servers, and IoT compatibility for full data visibility. Designed for global use, all units support 50/60Hz and use environmentally friendly R513A refrigerant, aligning with F-Gas regulations.

PoleStar Smart-E: smart, efficient, and built for the future.

Why Choose Refrigeration Dryers for Compressed Air?

Refrigeration dryers are a highly effective solution for removing water vapour, liquid water, and aerosols from compressed air - perfect for general-purpose applications. Using a closed-loop cooling system, they chill the air just above freezing, causing moisture to condense and drain away efficiently.

Before exiting the dryer, the air is reheated to avoid condensation in downstream piping. For optimal performance and air quality, they should always be paired with general-purpose and high-efficiency coalescing filters.

Environmentally friendly models, using Low GWP refrigerants in compliance with EU F-Gas Regulation 517/2014, not only protect your system but also help safeguard the climate and your long-term investment.

Order Directly from Us – Get in Touch

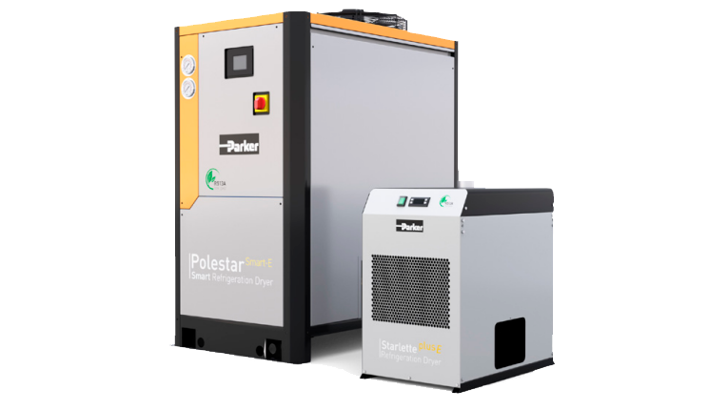

Parker Polestar Smart E Air Refrigeration Dryer

Ordering Information & Available Spare Parts

Below you can see the ordering information for the PoleStar Smart-E PSE 120 - PSE 1800 and the available spare parts for the Refrigeration Dryers.

Do you need something there is not listed here? Do not hesitate to contact us.

Ordering Information & Spare Part List
Part Number	Description
398H473756 / 398H473757	3 years preventive maintenance kits 398H473756 for Ac/Wc PSE 120 - 350 398H473757 for Ac/Wc PSE 460 - 1800
398H473758 / 398H473759	Electrical Kit 398H473758 for Ac/Wc PSE 120 - 350 398H473759 for Ac/Wc PSE 460 - 1800
398H473760 / 398H473761 / 398H473762 / 398H473763 / 398H473764 / 398H473765 / 398H473766 / 398H473767 / 398H473768 / 398H473769 / 398H473770 / 398H473771 / 398H473772	Compressor kit 398H473760 for Ac/Wc PSE 120 - 140 398H473761 for Ac/Wc PSE 180 398H473762 for Ac/Wc PSE 220 398H473763 for Ac/Wc PSE 260 398H473764 for Ac/Wc PSE 300 398H473765 for Ac/Wc PSE 350 398H473766 for Ac/Wc PSE 460 398H473767 for Ac/Wc PSE 520 398H473768 for Ac/Wc PSE 630 398H473769 for Ac/Wc PSE 750 398H473770 for Ac/Wc PSE 900 - 1200 398H473771 for Ac/Wc PSE 1500 398H473772 for Ac/Wc PSE 1800
398H473042 / 398H473773 / 398H473774 / 398H473775 / 398H473776	Fan kit 398H473042 for Ac PSE 120 - 180 398H473773 for Ac PSE 220 - 350 398H473774 for Ac PSE 460 - 630 398H473775 for Ac PSE 750 - 1200 398H473776 for Ac PSE 1500 - 1800
398H473777 / 398H473778 / 398H473779 / 398H473780 / 398H473781 / 398H473782	Hot gas valve kit 398H473777 for Ac PSE 120 - 220 398H473778 for Ac PSE 260 - 350 398H473779 for Ac/Wc PSE 460 - 520 398H473780 for Ac/Wc PSE 630 398H473781 for Ac/Wc PSE 750 - 1200 398H473782 for Ac/Wc PSE 1500 - 1800
ET-398H114848 / ET-398H114845 / ET-398H114846 / ET-398H114847	Refrigerant condenser ET-398H114848 for Ac PSE 120 - 350 ET-398H114845 for Ac PSE 460 - 630 ET-398H114846 for Ac PSE 750 - 1200 ET-398H114847 for Ac PSE 1500 - 1800
ET-398H186194 / ET-398H186234 / ET-398H186235 / ET-398H186236 / ET-398H186237 / ET-398H186193	Shell & tube exchanger ET-398H186194 for Wc PSE 220 ET-398H186234 for Wc PSE 260 - 460 ET-398H186235 for Wc PSE 520 - 630 ET-398H186236 for Wc PSE 750 ET-398H186237 for Wc PSE 900 - 1500 ET-398H186193 for Wc PSE 1800
398H378209 / 398H378204 / ET-398H378220	Water pressostatic valve 398H378209 for Wc PSE 460 - 630 398H378204 for Wc PSE 750 - 1500 ET-398H378220 for Wc PSE 1800
398H206226 / 398H206254 / ET-398H206257	Refrigerant filter 398H206226 for Ac/Wc PSE 120 - 350 398H206254 for Ac/Wc PSE 460 - 520 ET-398H206257 for Ac/Wc PSE 630 - 1800
ET-398H183148	Liquid line solenoid valve For Ac/Wc PSE 120 - 1800
398H473066 / 398H473067 / 398H473068 / 398H473479 / 398H473480	Water - air exchanger / Separator / Air-air exchanger 398H473066 for Ac/Wc PSE 120 - 140 398H473067 for Ac/Wc PSE 180 398H473068 for Ac/Wc PSE 220 - 350 398H473479 for Ac/Wc PSE 460, PSE 520, PSE 750, PSE 900 & PSE 1500 398H473480 for Ac/Wc PSE 630, PSE 1200 & PSE 1800
ET-398H275315	Low Pressure transmitter For Ac PSE 460 - 1800
ET-398H354042	Pressure gauge For Ac PSE 220 - 1800
ET-398H474521	Low pressure switch For Ac/Wc PSE 120 - 1800
ET-398H474520 / ET-398H474523	High pressure switch ET-398H474520 for Ac/Wc PSE 120 - 350 ET-398H474520 for Ac PSE 460 - 1200 ET-398H474523 for Ac PSE 1500 - 1800
ET-398H275311	High pressure transmitter ET-398H275311 for Ac/Wc PSE 120 - 350 ET-398H275311 for Ac PSE 460 - 1800
ET-398H183148 / 398H183142	Hot gas solenoid valve ET-398H183148 for Ac/Wc PSE 120 - 300 398H183142 for Ac /Wc PSE 350
398H378202 / 398H378203 / 398H378204 / ET-398H378220	Water pressostatic valve 398H378202 for Wc PSE 460 - 630 398H378203 for Wc PSE 750 398H378204 for Wc PSE 900 - 1500 ET-398H378220 for Wc PSE 1800
398H473783	Safety Valve kit For Ac/Wc PSE 1500 - 1800
398H473784	Electronic card simple SMP5500 For Ac/Wc PSE 120 - 180
398H473785	Electronic card touch AVC6200 For Ac/Wc PSE 220 - 1800
398H473786	Expansion EVE6000 For Ac/Wc PSE 220 - 1800
398H473787 / 398H473788 / 398H473787Y001	Display touch 398H473787 for Ac PSE 220 - 350 398H473788 for Ac PSE 460 - 1800 398H473787Y001 for Wc 220 - 1800
398H473789	Hot gas valve control For Ac/Wc PSE 460 - 1800
398H275894	Dew point/ evaporator temperature sensor (3m) For Ac PSE 120 - 350 For Ac/Wc PSE 460 - 1800 Evaporation temperature sensor For Ac PSE 120 - 350 For Ac/Wc PSE 460 - 1800 Ambient temperature sensor For Ac/Wc PSE 460 - 1800 Suction temperature sensor For Ac/Wc PSE 460 - 1800
ET-398H275973	Discharge temperature sensor (1,5m) For Ac PSE 120 - 350 For Ac/Wc 460 - 1800
398H275752	Condensate level sensor For Ac PSE 120 - 350 For Ac/Wc 460 - 1800
398H256366	Phases monitor For Ac PSE 120 - 350 For Ac/Wc 460 - 750
ET-398H328262 / ET-398H328264	Crankcase heater ET-398H328262 for Ac/Wc PSE 120 - 630 ET-398H328264 for Ac/Wc PSE 750 - 1800
398H256418 / 398H256406 / 398H256422 / 398H256424	Main disconnector switch 398H256418 for Ac/Wc PSE 120 - 350 398H256406 for Ac/Wc PSE 460 - 630 398H256422 for Ac/Wc PSE 750 - 1200 398H256424 for Ac/Wc PSE 1500 - 1800
398H256291 / ET-398H256294 / ET-398H256297 / ET-398H256302 / ET-398H256201 / ET-398H256200	Compressor Automatic switch 398H256291 for Ac/Wc PSE 120 - 300 ET-398H256294 for Ac/Wc PSE 350 ET-398H256297 for Ac/Wc PSE 460 - 630 ET-398H256302 for Ac/Wc PSE 750 ET-398H256201 for Ac/Wc PSE 900 - 1200 ET-398H256200 for Ac/Wc PSE 1500 - 1800
398H256248 / 398H256245 / 398H256246 / 398H256325 / 398H256296 / ET-398H256251	Compressor contactor 398H256248 for Ac/Wc PSE 120 - 300 398H256245 for Ac/Wc PSE 350 398H256246 for Ac/Wc PSE 460 - 630 398H256325 for Ac/Wc PSE 750 398H256296 for Ac/Wc PSE 900 - 1200 ET-398H256251 for Ac/Wc PSE 1500 - 1800
398H256243	Fan contactor For Ac PSE 120 - 1800
ET-398H255856 / ET-398H255857	Auxiliary transformer ET-398H255856 for Ac/Wc PSE 120 - 350 ET-398H255857 for Ac/Wc PSE 460 - 1800
398H698218	Condensate Drain solenoid valve For Ac PSE 120 - 350 For Ac/Wc PSE 460 - 1800

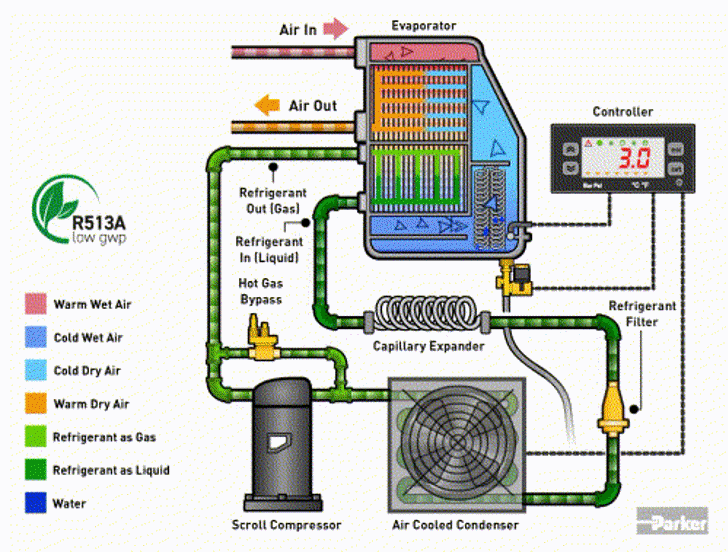

How the PoleStar Smart-E Dryer Works

PoleStar Smart-E refrigeration dryers efficiently remove water from compressed air while minimizing energy use.

Thanks to the patented SmartSave feature, the dryer continuously adjusts its operation to match current conditions - ensuring precise dew-point control and optimized power consumption.

Indirect energy savings are also achieved by minimizing pressure drop. This is made possible by the patented SmartPack aluminium heat exchanger, which features large, open channels and an “all-in-one” design without interconnecting pipework.

The result is a smooth, uninterrupted airflow with exceptionally low pressure drop.

Worldwide Delivery – Contact Our Team

Ordering Information & Available Spare Parts
(Old models)

Below you can see the ordering information for the PoleStar Smart-E PST 120 - PST 1800 and the available spare parts for the Refrigeration Dryers.

Do you need something there is not listed here? Do not hesitate to contact us.

Ordering Information & Spare Part List
Part Number	Description
398H473001 / 398H473269	3 years preventive maintenance kits 398H473001 for Ac PST 120 - 1800 398H473269 for Wc PST 220 - 1800
398H785201 / 398H785202 / 398H785203 / 398H785205	Electrical Kit 398H785201 for Ac/Wc PST 120 - 180 398H785202 for Ac/Wc PST 220 - 520 398H785203 for Ac/Wc PST 630 - 1200 398H785205 for Ac/Wc PST 1500 - 1800
398H473005 / 398H473007 / 398H473008 / 398H473009 / 398H473702 / 398H473011 / 398H473012 / 398H473013 / 398H473703 / 398H473704 / 398H473705 / 398H473706	Compressor kit 398H473005 for Ac/Wc PST 120 - 180 398H473007 for Ac/Wc PST 220 398H473008 for Ac/Wc PST 260 398H473009 for Ac/Wc PST 300 398H473702 for Ac/Wc PST 350 - 460 398H473011 for Ac/Wc PST 520 398H473012 for Ac/Wc PST 630 398H473013 for Ac/Wc PST 750 398H473703 for Ac/Wc PST 900 398H473704 for Ac/Wc PST 1200 398H473705 for Ac/Wc PST 1500 398H473706 for Ac/Wc PST 1800
398H473041 / 398H473042 / 398H473473 / 398H473478 / 398H473145	Fan kit 398H473041 for Ac PST 120 - 140 398H473042 for Ac PST 180 398H473473 for Ac PST 220 - 460 & PST 630 - 750 398H473478 for Ac PST 520 398H473145 for Ac PST 900 - 1800
398H473138 / 398H473139 / 398H473141 / 398H473672 / 398H473018	Hot gas valve kit 398H473138 for Ac/Wc PST 120 - 180 398H473139 for Ac/Wc PST 220 - 630 398H473141 for Ac/Wc PST 750 398H473672 for Ac/Wc PST 1200 398H473018 for Ac/Wc PST 1500 - 1800
398H473266 / 398H473267 / 398H473270 / 398H473271 / 398H473268	Water condenser kits 398H473266 for Wc PST 220 - 260 398H473267 for Wc PST 300 - 350 398H473270 for Wc PST 460 - 630 398H473271 for Wc PST 750 - 1200 398H473268 for Wc PST 1500 - 1800
398H114761 / 398H114796 / 398H114797 / 398H114790 / 398H114819 / 398H114815 / 398H114816 / 398H114817	Refrigerant condenser 398H114761 for Ac PST 120 - 180 398H114796 for Ac PST 220 - 300 398H114797 for Ac PST 350 398H114790 for Ac PST 460 - 520 398H114819 for Ac PST 630 - 900 398H114815 for Ac PST 1200 398H114816 for Ac PST 1500 398H114817 for Ac PST 1800
398H473066 / 398H473067 / 398H473068	Water - air exchanger / Separator / Air-air exchanger 398H473066 for Ac/Wc PST 120 - 140 398H473067 for Ac/Wc PST 180 398H473068 for Ac/Wc PST 220 - 1800
398H354054	Low pressure switch For Ac/Wc PST 120 - 1800
398H206221 / 398H206223 / 398H206224	Refrigerant filter 398H206221 for Ac/Wc PST 120 - 180 398H206223 for Ac/Wc PST 220 - 750 398H206224 for Ac/Wc PST 900 - 1800
398H473682	Fan pressure switch kit For Ac PST 120 - 1800
398H354052	High pressure switch For Ac/Wc PST 120 - 1800
398H378734 / 398H378735	Liquid line solenoid valve 398H378734 for Ac/Wc PST 120 - 750 398H378735 for Ac/Wc PST 900 - 1800
398H378734 / 398H378735 / 398H378736	Hot gas solenoid valve 398H378734 for Ac/Wc PST 120 - 350 398H378735 for Ac/Wc PST 460 - 520 398H378736 for Ac/Wc PST 630 - 1800
398H378206 / 398H378201 / 398H378202 / 398H378209	Water pressostatic valve 398H378206 for Wc PST 220 - 350 398H378201 for Wc PST 460 - 520 398H378202 for Wc PST 630 - 900 398H378209 for Wc PST 1200 - 1800
398H275765	Electronic card For Ac/Wc PST 120 - 1800
398H275894	Dew point temperature sensor For Ac/Wc PST 120 - 1800
398H275894 / 398H275895	Evaporation temperature sensor 398H275894 for Ac/Wc PST 120 - 350 398H275895 for Ac/Wc PST 460 - 1800
398H275731	Discharge temperature sensor For Ac/Wc PST 120 - 1800
398H275752	Condensate level sensor For Ac/Wc PST 120 - 1800
398H256366	Phases monitor For Ac/Wc PST 120 - 1800
398H256416 / 398H256418 / 398H256421 / 398H256423	Main disconnector switch 398H256416 for Ac/Wc PST 120 - 180 398H256418 for Ac/Wc PST 220 - 520 398H256421 for Ac/Wc PST 630 - 1200 398H256423 for Ac/Wc PST 1500 - 1800
398H256231 / 398H256235 / 398H256241 / 398H256458 / 398H256459	(Compressor) Automatic switch 398H256231 for Ac/Wc PST 120 - 180 398H256235 for Ac/Wc PST 220 - 520 398H256241 for Ac/Wc PST 630 - 750 398H256458 for Ac/Wc PST 900 - 1200 398H256459 for Ac/Wc PST 1500 - 1800
398H255904	Auxiliary transformer For Ac/Wc PST 120 - 1800
398H698218	Condensate Drain solenoid valve For Ac/Wc PST 120 - 1800

Parker PoleStar Smart-E models available:

Air Cooled

PSE120-A4X03DF14EI
PSE140-A4X03DF14EI
PSE180-A4X03DF14EI
PSE220-A4X03DF14EITS
PSE260-A4X03DF14EITS
PSE300-A4X03DF14EITS
PSE350-A4X03DF14EITS
PSE460-A4X03DF14EITS
PSE520-A4X03DF14EITS
PSE630-A4X03DF14EITS
PSE750-A4X03DF14EITS
PSE900-A4X03DF14EITS
PSE1200-A4X03DF14EITS
PSE1500-A4X03DF14EITS
PSE1800-A4X03DF14EITS

Water Cooled

PSE220-S4X03DF14EITS
PSE260-S4X03DF14EITS
PSE300-S4X03DF14EITS
PSE350-S4X03DF14EITS
PSE460-S4X03DF14EITS
PSE520-S4X03DF14EITS
PSE630-S4X03DF14EITS
PSE750-S4X03DF14EITS
PSE900-S4X03DF14EITS
PSE1200-S4X03DF14EITS
PSE1500-S4X03DF14EITS
PSE1800-S4X03DF14EITS

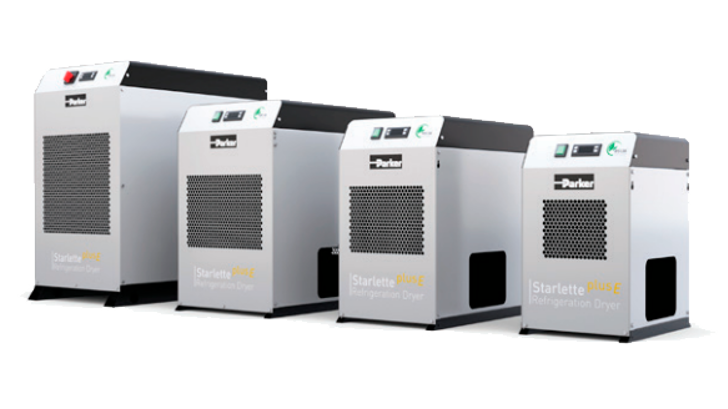

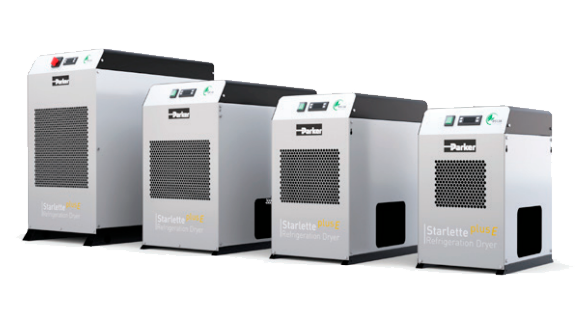

StarlettePlus-E Refrigeration Dryers

For efficient and reliable gas treatment, our range includes the StarlettePlus-E refrigeration dryers. Designed for energy savings and consistent performance, they’re ideal for small to medium compressed air systems. Explore this compact and eco-friendly solution here.

see selection

Effects of the EU F-gas regulation

Who is affected by the F-gas regulation?

All who purchase, sell, distribute, maintain, repair and dispose of refrigeration dryers within the EU.

Which refrigeration dryers are affected?

Refrigeration dryers for compressed air and inert gases are generally classified as stationary refrigeration systems used in industrial and trade applications. As such, they are subject to F-gas regulations in the EU if they use fluorinated greenhouse gases like HFCs, which most current models do. Requirements for household refrigerators or commercial refrigeration installations do not apply to refrigeration dryers.

What is the new F-gas regulation EU 517/2014 all about?

The regulation aims to reduce emissions of fluorinated greenhouse gases due to their impact on global warming.

It sets rules for the use, recycling, disposal, and emission limits of these gases.
It also outlines requirements for placing certain products and systems on the market that use F-gases.
Additionally, limits have been imposed on the quantities of partially fluorinated greenhouse gases allowed on the market.

Which currently-available refrigerants will be prohibited?

Since January 1, 2020, refrigerants with a GWP of 2,500 or more may only be used for maintenance or repair if reconditioned or recycled. This includes refrigeration dryers with 10.2 kg or more of R-404A. From January 1, 2030, the use of such refrigerants will be fully banned. Violations are considered criminal offences in Germany.

Dryers with less than 10.2 kg of R-404A are not affected by the ban. However, due to limited recovery rates and the expected phaseout of high-GWP refrigerants, future availability of recycled R-404A is uncertain.

Other standard refrigerants remain permitted.

What must be considered when converting to an alternative refrigerant?

The first step is to check whether a suitable alternative refrigerant is available. If not, the refrigeration dryer cannot be refilled after a leak and must be replaced.

For dryers where conversion is possible, the effort depends on the compatibility of existing components. In the simplest cases, replacing the filter dryer may be enough. Some situations may also require adjusting or replacing the expansion unit, or even installing a new compressor approved for the alternative refrigerant.

Conversions can affect drying capacity, energy consumption, and pressure dew point to varying degrees. However, many standard dryers have been successfully converted -for example, from R-134a to R-513A or from R-404A/R-407A to R-449A - without major impact on performance.

Is the placing on the market of refrigeration equipment, in this case refrigerant dryers, banned with certain refrigerants?

As of January 1, 2020, refrigeration dryers using refrigerants with a GWP of 2,500 or more - such as R-404A - can no longer be marketed. Violations are considered criminal offences in Germany.

This ban applies to new units placed on the market after that date. Refrigeration dryers already sold or in distributor or second-hand inventory before 2020 are not affected and may still be operated. The restriction targets manufacturers and importers.

However, future maintenance of R-404A dryers will become increasingly difficult due to limited availability of the refrigerant. No other marketing bans currently apply to refrigeration dryers.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Specifications & Manuals

Data Sheet - PoleStar Smart-E Refrigeration Dryers - Parker
English | pdf

Download
Manual - PoleStar Smart-E PSE 120-350 - Parker
English | pdf

Download
Manual - PoleStar Smart-E PSE 460-1800 - Parker
English | pdf

Download
Manual - PoleStar Smart-E PST 120-350 - Parker
English | pdf

Download
Manual - PoleStar Smart-E PST 460-1800 - Parker
English | pdf

Download
White Paper - PoleStar Smart-E Refrigeration Dryers - Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Specifications
Brand	Parker
Division	Gas Separation and Filtration Division EMEA
Technology	Filtration
Application	Compressed Air Applications
Product Type	Compressed Air Dryer
Product Style	Refrigeration
Product Series	PoleStar Smart-E
Industry	Industrial Manufacturing Equipment
Flow Rate	720 to 10800 m3/hour at 7 barg, 50Hz, 424 to 6357 CFM at 102 psig, 50Hz, 773 to 11812 m3/hour at 7 barg, 60Hz, 455 to 6952 CFM at 102 psig, 60Hz
Pressure Dew Point	Standard: 3°C (37°F), Options: 7°C (45°F) or 10°C (50°F)
Cooling Method	Air or Water Cooled
Refrigerant Type	R513A (Low GWP Refrigerant)
Operating Pressure	2 to 14 barg, 29 to 203 psig
Operating Temperature	5 to 65 °C, 41 to 149 °F
Ambient Temperature	50.0 °C Maximum, 122.0 °F Maximum
Electrical Requirements	400V 3ph 50Hz / 460V 3ph 60Hz
Power Consumption	1.32 to 13.45 kW (50Hz), 1.7 to 16.4 kW (60Hz)
Port Size	2 to DN200 inch
Connection Type	BSPP
Ingress Protection Rating	PSE120 to PSE180: IP44 Indoor Use Only PSE220 to PSE1800: IP54 Indoor Use Only
Specifications Met	PED 2014/68/EU Fluid Group II
Noise Level	< 75 dBA
Height	1365 to 2040 mm, 53.7 to 80.3 inch
Width	703 to 1517 mm, 27.7 to 59.7 inch
Depth	1150 to 2529 mm, 45.3 to 99.6 inch
Weight	205 to 1210 Kg (452 to 2668 lbs)

To top

Parker Hiross PoleStar Smart-E Refrigeration Dryers

PoleStar Smart-E Medium to Large

Cut Energy Costs, Boost Performance

The Smart Way to Dry Compressed Air

Why Choose Refrigeration Dryers for Compressed Air?

Ordering Information & Available Spare Parts

How the PoleStar Smart-E Dryer Works

Ordering Information & Available Spare Parts
(Old models)

Parker PoleStar Smart-E models available:

Air Cooled

Water Cooled

StarlettePlus-E Refrigeration Dryers

Effects of the EU F-gas regulation

Who is affected by the F-gas regulation?

Which refrigeration dryers are affected?

What is the new F-gas regulation EU 517/2014 all about?

Which currently-available refrigerants will be prohibited?

What must be considered when converting to an alternative refrigerant?

Is the placing on the market of refrigeration equipment, in this case refrigerant dryers, banned with certain refrigerants?

For technical questions

For commercial inquiries

We Deliver Directly to End Customers, Resellers, and Agents – Globally

Product Catalogue

Check out our
product catalogue

Specifications & Manuals

Data Sheet - PoleStar Smart-E Refrigeration Dryers - Parker

Manual - PoleStar Smart-E PSE 120-350 - Parker

Manual - PoleStar Smart-E PSE 460-1800 - Parker

Manual - PoleStar Smart-E PST 120-350 - Parker

Manual - PoleStar Smart-E PST 460-1800 - Parker

White Paper - PoleStar Smart-E Refrigeration Dryers - Parker

Didn't you find what you were looking for?

Fill out the contact form

Consent for storing of submitted data *

Parker Hiross PoleStar Smart-E Refrigeration Dryers

PoleStar Smart-E Medium to Large

Cut Energy Costs, Boost Performance

The Smart Way to Dry Compressed Air

Why Choose Refrigeration Dryers for Compressed Air?

Ordering Information & Available Spare Parts

How the PoleStar Smart-E Dryer Works

Ordering Information & Available Spare Parts(Old models)

Parker PoleStar Smart-E models available:

Air Cooled

Water Cooled

StarlettePlus-E Refrigeration Dryers

Effects of the EU F-gas regulation

For technical questions

For commercial inquiries

We Deliver Directly to End Customers, Resellers, and Agents – Globally

Product Catalogue

Check out our product catalogue

Specifications & Manuals

Didn't you find what you were looking for?

Fill out the contact form

Consent for storing of submitted data *

Ordering Information & Available Spare Parts
(Old models)

Check out our
product catalogue
