FELLOW KOGYO 15 ppm Bilge Alarm FOCAS-2000

15ppm Bilge Alarm FOCAS-2000

The FOCAS-2000 Bilge Alarm from FELLOW KOGYO ensures accurate oil content monitoring to protect marine ecosystems and maintain operational integrity. Its advanced technology provides real-time measurements and rapid response to changes in oil concentration.

Advantages for you with FOCAS-2000:

Accurate oil content monitoring
Reliable performance
Easy installation and operation
Compliance with MEPC.107(49)

With easy installation, reliable performance, and spare parts readily available, the FOCAS-2000 offers efficient and long-lasting solution for compliance with environmental regulations.

For sales or commercial inquiries please contact us at marine@insatech.com.

Understanding the principle of measurement being used on the FOCAS 2000 model

The FOCAS-2000 utilizes a full optical continuous measuring method, where the light received by multiple optical elements is analyzed by the CPU and software. This allows for a precise and instant calculation of changes in oil type, concentration, and patterns due to mixed foreign substances.

As a result, the alarm can accurately measure and monitor oil concentration in real-time, providing a rapid response to any changes.

Its sophisticated detection system is calibrated to identify oil concentrations, signaling an alarm if levels exceed 15 parts per million (ppm). This technology is pivotal for vessels to regulate their bilge water content, thereby adhering to strict environmental regulations and avoiding potential non-compliance penalties.

Key Features of the 15ppm Bilge Alarm

Automatic operation method that is synchronized with the operation of an oil separator or pump, using sample water pressure
The automatic washing function of the detection unit eliminates the need for manual washing, reducing the amount of manual labor required.
The device is equipped with error code indications and stain indications on the detection unit, making maintenance and inspection easier. This high-maintainability structure ensures efficient upkeep of the product.
Operation records, including trouble alarms, can be saved in a memory card and reviewed as needed.
The product features a double safety method for alarms. An alarm is triggered when the oil concentration exceeds 15 ppm, or when there is a defect in the sample water or the instrument itself.
The detecting part (sensor) can be replaced separately, and calibration is recommended every five years for optimal performance.

Exactly what you need? Contact us here

Maintenance and Checking

The oil concentration detector model FOCAS 2000 from FELLOW KOGYO is a marine equipment that provides accurate measurements and valuable operational insights, streamlines maintenance, and ensures reliability through features like sensor cleaning and fuse replacement. By using this bilge alarm, maritime companies can achieve operational excellence and comply with industry standards. Explore further below, where you can read about:

Features and tests with FOCAS-2000
Maintenance functions for optimal performance
Operational data monitoring and analysis features
Maintenance and component replacement options

It is recommended for you to periodically check and maintain the alarm as shown in the maintenance intervals below to assure its performance for a long time.

Maintenance Interval FOCAS 2000 model

Sensor cleaning (with brush): Every 2 weeks or every 10 measurements whichever comes first
Zero-point check: Every month
Filter cleaning: Every 3 months
Desiccant (silica gel) check: Every month
Replacement of the clock backup battery: Every 2 years
Accuracy check: Every 2 years
Performance check: Every 1 year or when the sensor unit is replaced
Update of precision certificate: Every 5 years

If you have any questions - Contact us

Features and Tests for Optimal Performance

To guarantee optimal performance, the FOCAS-2000 offers a range of features and tests. The testing function allows thorough verification of performance and functionality, while the manual operation feature provides flexibility and control. The zero-point check ensures accurate calibration, and the RECout output test verifies the current output falls within the desired range. Additionally, the relay operation test and alarm operation test ensure proper functioning and reliable alerts.

Manual operation (Manual running)
Zero-point check from the upper lid
Zero-point check from the fresh water line
RECout output test (Current Output xxmA)
Relay operation test
Alarm operation test
Operation state monitor

Maintenance Functions for Optimal Performance

Maintenance is streamlined with the FOCAS-2000's maintenance functions. The maintenance mode enables necessary tasks and adjustments, while manual washing reduces manual labor. Performance checks ensure optimal operation, and zero-point compensation maintains accurate measurements. The device's high-maintainability structure is further enhanced by error code indications and stain indications, facilitating maintenance and inspection.

Manual washing
Performance check
Zero-point compensation
Function for recovery after zero-point compensation

Operational Data Monitoring and Analysis Features

Monitoring and analyzing operational data is made effortless with the FOCAS-2000. The operational log provides a comprehensive record of activities, organized into data groups for easy navigation and troubleshooting. Detailed displays offer in-depth analysis, while the oil alarm point record display screen allows for precise adjustment of alarm thresholds.

Viewing the operational log
Data groups of operational log
Outlined and detailed displays of the operational log
Oil alarm point (Alarm Setting) record display screen

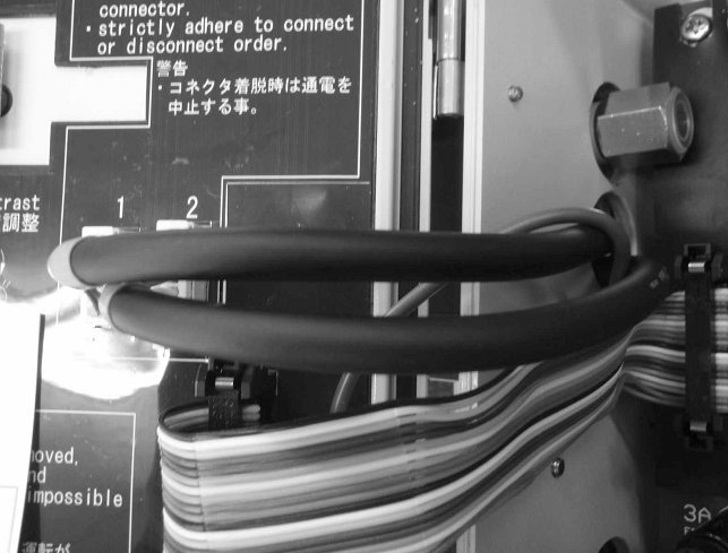

Maintenance and Component Replacement Options

For component maintenance and replacement, the FOCAS-2000 offers various options. Cleaning the sensor and filter ensures accurate readings, while checking and replacing the desiccant prevents moisture-related issues. Replacing the clock backup battery and operational log memory card ensures uninterrupted functionality and data logging. Fuse replacement safeguards against electrical damage.

In addition to these maintenance options, the bilge alarm provides the convenience of readily available spare parts.

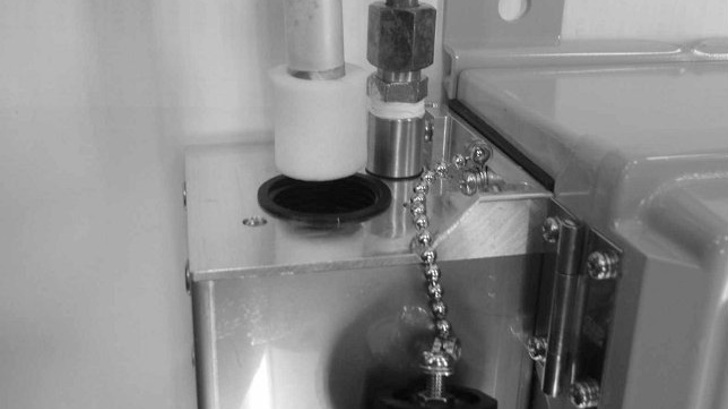

Cleaning the sensor (brush washing)
Cleaning the filter
Checkup and replacement timing of desiccant (silica gel)
Replacing the clock backup battery
Replacing the operational log memory card
Replacing the fuses

FOCAS-2000 Spare parts

Equipment Component	Part Number
Fuse for the equipment	2000-010
Fuse for the electromagnetic valve unit	2000-020
Washing brush	2000-030
Washing liquid	2000-040
Φ10 joint set	2000-050
Upper lid O-ring	2000-060
Drain seal W	2000-070

Compliance with MEPC.107(49)

The 15ppm Bilge Alarm from FELLOW KOGYO stands as the epitome of compliance, strictly adhering to the stringent MEPC.107(49) guidelines set forth by the International Maritime Organization (IMO). This certification is not merely a mark of quality, but a testament to its capability to operate within the legally permissible oil discharge limit - ensuring that maritime operations are both environmentally responsible and aligned with global regulations.

FOCAS-2000's Certification and Compliance

The FOCAS-2000 is fully certified, meeting stringent MEPC.107(49) regulatory requirements. Its design ensures accurate monitoring of bilge water discharge.

The 15ppm Bilge Alarm has approvals in each country in the world:

EC (Europe DNV)
USCG (USA USCG46CFR162.00)
CCS (CHIINA to be approved)

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Specifications
Application	Bilge concentration monitor (bilge drainage)
Measurement method	Optical continuous measurement
Operation method	Automatic operation using sample water pressure
Response time	Within 5sec, comply with MEPC107(49)
Power supply /power consumption	AC90 ～ 240 V 50 ～ 60 Hz 20 VA or less
Range	0...30 ppm
Accuracy	Within ±5ppm （at 15ppm）
Conditions on sample water	Pressure: 0.03 ～ 0.3MPa Flow rate: 0.2 ～ 3 L /min Water temperature: +2 ～ +45°C
Material measured and identified	Light oil 10ppm in 100ppm iron oxide solution
Service temperature・ humidity	0 ～ 50°C 5 ～ 90％RH no dew condensation
Maximum measurement angle of inclination	Within 22.5°in each direction
