A complete oil analysis kit that can be used on-site for measuring and monitoring the amount of water in oil and TBN for industry, marine and offshore equipment, which enable you to conduct oil analysis quickly and easily.
Key Features for you:
We deliver directly and globally to end-users, agents, and resellers. Contact us at marine@insatech.com.
Is that what you are looking for? Look no further!
DIGI+ Cell and Oil Test Kits from Parker Kittiwake is ideal on board of your vessel as it is compact, versatile, time-efficient, and reliable equipment for routine spot tests of lubricant oils.
With the DIGI+ Cell you will be able to test for both Water in Oil and Base Number of your lube oils. These kits provide quick diagnostic insights, ensuring your equipment is running efficiently.
Moreover, you do not need to be patient or have lots of waste time because the tests are typically done within 2 minutes once you have the sample.

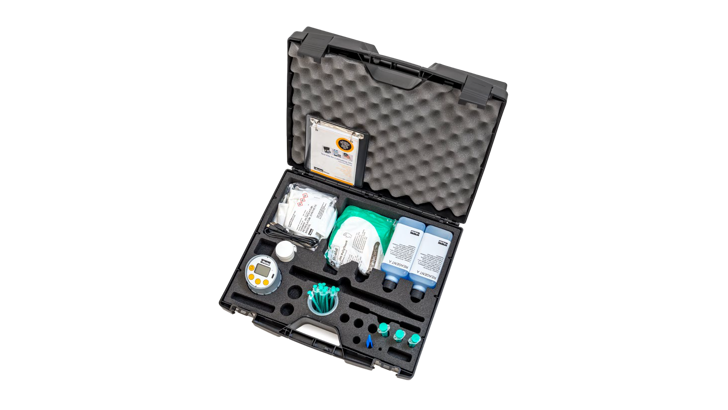

By using the DIGI+ Water in Oil Test Kit you both:
All this can be done, as the Oil Test Kit gives you a digital analysis that can be done by you or your crew on-board of your vessel, while still providing fast and accurate results. Thus, you can easily monitor trends and get quick diagnostic insights.
The DIGI+ Water in Oil Test Kit provides you with an test that can:
Furthermore, the test kit is fully portable ofr use on-board of your vessel and is very vigorous and durable.

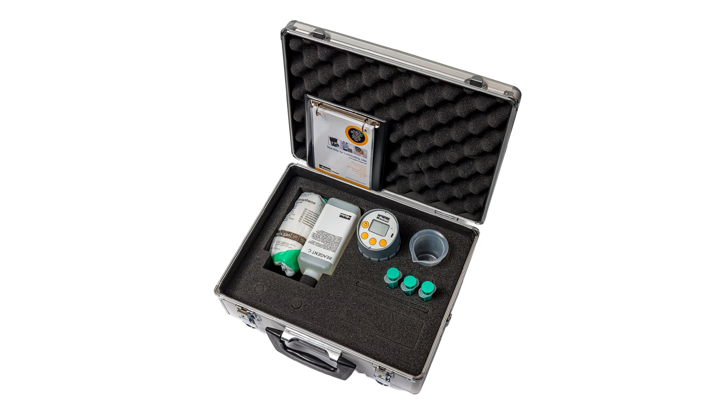

The DIGI+ BN Test Kit provides you the possibility of measurring your oil's alkaline reserve, as well as you get the ability to neutralise acids from combustion.
By using this kit you can get a rapid indication of BN depletion in lubricants, as well as you by monitoring the BN continuously can:
All in all, the DIGI+ BN Test Kit is an easy and cost efficient wat to monitor lubricants.
By testing your lubricant oil frequently, you can monitor and get rapid diagnostic insights of the quality of the oil and ensure that key properties are always optimal for the intended use.
Maintaining the BN based on measurements, can benefit your cost of operation by saving money on top-ups compared to the alternative, where topping up is done ‘blindly’ based only on a recommended schedule.
Furthermore, detection of a presence or increase of water in your lubricant oil could indicate that the lube oil piping needs some attention in one way or another.
Watch our unboxing video and find out!
From innovative tools to essential instructions, we will guide you through every detail, ensuring you're fully equipped for whatever lies ahead.

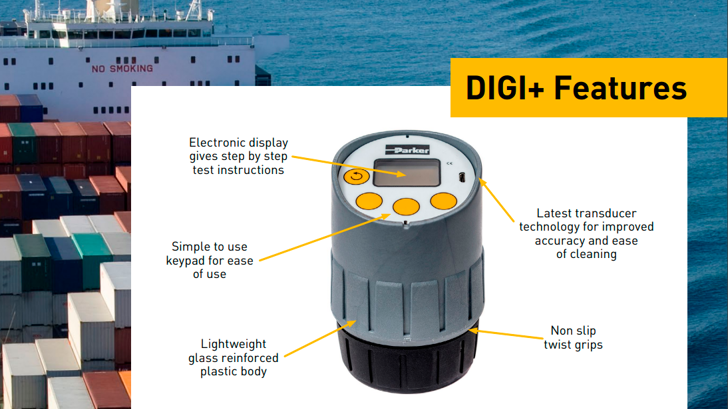

The DIGI Cell from Parker is ideal for oil condition monitoring, and is know for making testing easier and extremely accurate even when used in challenging conditions.
Some of the DIGI Cell's new features are:
See more instructions in the video here.
| Product Code Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Function |
||||||||||||||||||
| FG-K6-101-KW+ | DIGI+ water: Water in oil test kit |
||||||||||||||||||
| FG-K6-102-KW+ | DIGI+ water / viscosity kit: Water in oil + Viscostcik |
||||||||||||||||||
| FG-K6-103-KW+ | DIGI+ basic kit: Water in oil + Salt test + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-004-KW+ | DIGI+ BN test kit: TBN oil test kit |
||||||||||||||||||
| FG-K6-107-KW+ | DIGI+ industrial kit: Combined water in oil/BN cell + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-108-KW+ | DIGI+ field kit: Combined water in oil/BN cell + Insolubles test + Viscostick + AN test |
||||||||||||||||||
| FG-K6-110-KW+ | DIGI+ combined kit: Combined water in oil/BN cell + salt test + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-971-KW+ | DIGI+ clean oil kit: Water in oil + Viscotube + AN test |
||||||||||||||||||
| Product Code | Function |
|---|---|
| FG-K1-101-KW | DIGI water: Water in oil test kit |
| FG-K1-102-KW | DIGI water / viscosity kit: Water in oil + Viscostcik |
| FG-K1-103-KW | DIGI basic kit: Water in oil + Salt test + Insolubles test + Viscostick |
| FG-K1-004-KW | DIGI BN test kit: TBN oil test kit |
| FG-K1-107-KW | DIGI industrial kit: Combined water in oil/BN cell + Insolubles test + Viscostick |
| FG-K1-108-KW | DIGI field kit: Combined water in oil/BN cell + Insolubles test + Viscostick + AN test |
| FG-K1-110-KW | DIGI combined kit: Combined water in oil/BN cell + salt test + Insolubles test + Viscostick |
| FG-K14971-KW | DIGI clean oil kit: Water in oil + Viscotube + AN test |
| FG-K16897-KW | DIGI biodiesel test kit: Water in oil + Viscometer + Hydrometer + AN etst + Cleanliness test |
| FG-K6-897-KW+ | DIGI+ biodiesel test kit: Water in oil + Viscometer + Hydrometer + AN etst + Cleanliness test |
The DIGI+ Cell is built in a rugged and marine environment friendly design and are straight forward and very easy to use.
They come delivered with all necessary items to perform the tests, incl. reagents, syringes and sample cup.
The built-in battery will last for 3 years oe 500 charge cycles, which is enough to cover the entire expected lifetime of the cell.
Comprehending Total Base Number (TBN) values is crucial for assessing oil quality and ensuring the longevity of engine components.
The DIGI+ BN Test Kit, therefore, enables you to measure the alkaline reserve of lubricants, providing a rapid indication of BN depletion.
Regular monitoring with this kit helps prevent engine fouling and corrosion, ensuring efficient and reliable vessel operation.
This cost-effective tool is essential for maintaining optimal lubricant performance and protecting valuable marine assets.
Effectively monitoring water content in oil is essential for you because you can maintain engine performance and preventing damage.
Best practices include using reliable equipment like the DIGI+ Cell and the DIGI+ Water in Oil Test Kit, which offers quick and accurate water-in-oil testing.
Regular testing helps identify contamination early, allowing for timely corrective actions to avoid corrosion, reduce wear, and enhance the overall efficiency of your vessel's machinery.
Implementing these practices ensures the longevity and reliability of marine engines, safeguarding valuable assets, and reducing maintenance costs.
All DIGI+ Test Kits are marked with the EasySHIP logo, which indicates that a non-hazardous version is available for shipping the water in oil cell.
The EasySHIP logo looks like this:
Most DIGI Plus Test Kits use chemical reagents to test the oil. As you use the test kits these will, thus, be consumed and need replacement. You can order these replacement reagents with short notice and get it delivered worldwide from us.
Moreover, the reagents are packed in accordance with IATA/IMDG/IRD Air/Marine/Road Transportation regulations.
These Reagent Packs include
Furthermore, you can also see all the additional accessories here.
There is no DIGI Plus Test Kit that includes all the accessories below. However, two DIGI Plus Test Kits includes almost all additional accessories. They are:
The DIGI Plus Field Kit (FG--K6-108-KW), which includes:
The DIGI Plus Combined Kit (FG-K6-110-KW), which includes:
Otherwise, it is specified below which kits contains which additional accessories.

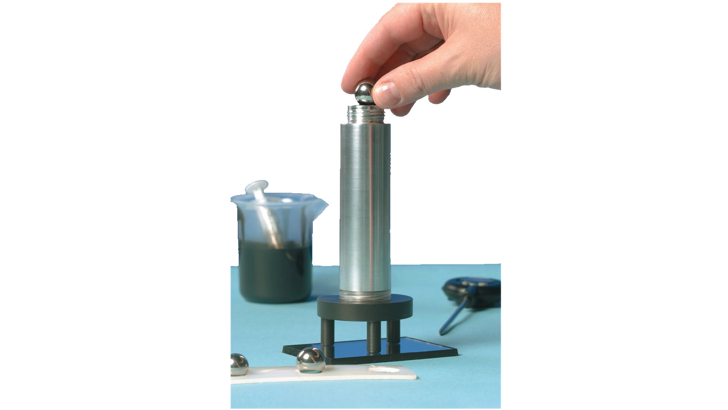

The DIGI Viscometer from Parker, also known as the Viscotube, use the technique of the falling ball to measure the oil’s viscosity. When you buy the Viscotube a viscosity calculation software and a digital thermometer are included to help you get precise results.
The application of the Viscotube includes:
The Viscotube is included in the DIGI+ clean oil kit (FG-K6-971-KW+).

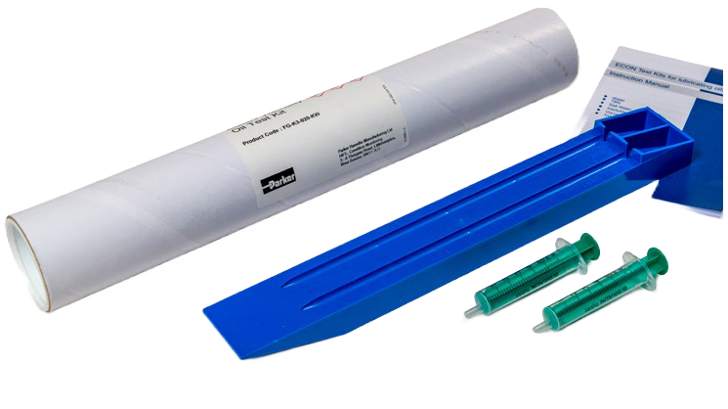

The ECON Viscostick from Parker gives you a simple go/no go result. Thus, it is easy to use and will usually detect 5-10% distillate fuel dilution of an SAE 30-40 engine oil. Moreover, it detects increases in viscosity because of oil contamination.
The application of the Viscostick includes:
The Viscostic is included in various DIGI Plus Test Kits including; FG-K6-102-KW+, FG-K6-103-KW+, FG-K6-107-KW+, FG-K6-108-KW+, and FG-K6-110-KW+.

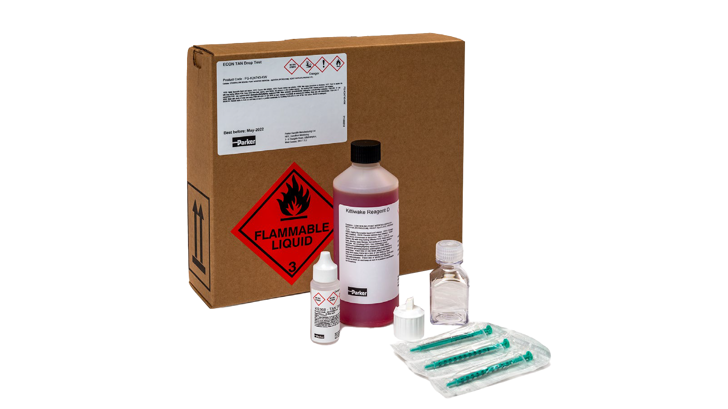

The AN (acid Number) Test from Parker can measure both the weak organic and strong inorganic acids present in an oil. Any rise in AN indicates oil oxidation because of time or operating temperature.
Furthermore, the test is straightforward to use because of the drop test principle, which makes it simple for any crew members to interpret the results, including non-technical personal.
The AN Test is applicable to use with:
The AN Test is included in the DIGI+ field kit (FG-K6-108-KW+).
The FG-K24743 includes:
1 x Reagent D TAN (AS-K10104-KW)
1 x KS268, 30 mL (AS-K23962-KW)
1 x Overpack label, BI-K30378 (AS-K27086-KW)
3 x Syringe disposable, 1 mL (BI-K10043)
1 x Beaker plastic, 100 mL (BI-K10058)
1 x White polytop closure (BI-K10059)
1 x Cap, 100 mL bottle wadded (BI-K10222)
1 x Flam LIQ. Label Class 3 (BI-K13799)
1 x Absorbent Pad, packs of 200 (BI-K15816)
2 x 14 mm binding rings for A6 (BI-K22761)
1 x Box IATA K2-011 (CA-K26257)
1 x Insert for new DG box, 873x190 (CA-K26257)
1 x Insert for new DG box, 372x290 (CA-K26317)
1 x Print all orders (IH-K24752-KW)
1 x Seal box with BI-K12885 (IH-K26947-KW)
1 x Print MSDS AS-K10104-KW (MA-K10828-KW)
1 x Inst. WTR cover generic
1 x Inst. TAN drop test (MA-K13891-KW)
1 x Print MSDS AS-K23962-KW (MA-K24753-KW)
1 x Inst. TAN drop test chart (MA-K24755-KW)
1 x Bottle, 100 mL PET (PL-K10222)

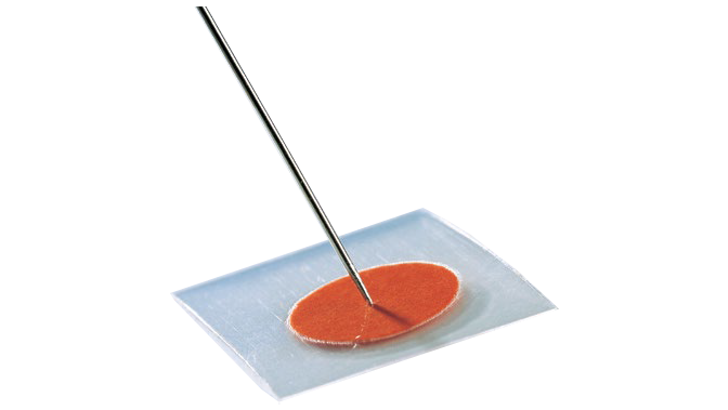

With the ECON Salt Water Contamination Test Kit from Parker you can check the presence of salt in either lube oil, fuel, or hydraulic systems. This makes it easier for you to eliminate rapid corrosion and can be used to give rapid indication of any presence of salt despite evaporation of all water.
Furthermore, this salt water contamination test is fast and very easy to use by crew members on board of your vessel.
The ECON Salt Water Contamination Test Kit is included in the DIGI+ combined kit (FG-K6-110-KW+).
The FG-K1-005-KW contains:
1 x Reagent H Kittiwake (AS-K10110-KW)
1 x Salt test pads labelled (AS-K14211-KW)
1 x Overpack label, BI-K30378 (AS-K27086-KW)
1 x Syringe disposable 5 mL (BI-K10045)
1 x Tube test polypropylene TC051 (BI-K10053)
4 x Pipette disposable 1 mL (BI-K10056)
1 White polytop closure (BI-K10059)
1 x Module box large (CA-K21799)
1 x Inst. ECON test kits new (MA-K16803-KW)

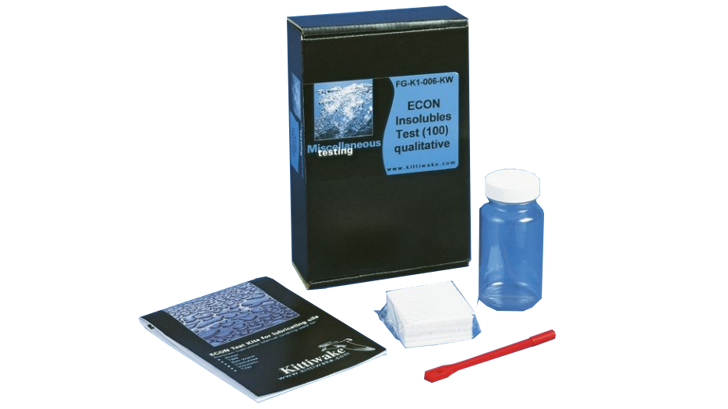

The FG-K1-006-KW, also known as the ECON Kiut Insolubles Test Kit, is designed to measure insolubles in lubricating oil, which are a buildup of combustion debris and oxidation products. Monitoring insolubles is crucial for maintaining engine health, as high levels can lead to lacquer formation on hot surfaces, piston ring sticking, and wear on cylinder liners and bearing surfaces. This test kit offers two test modes—% insolubles w/w by IP316 or % insolubles by the Mobil Soot Index—ensuring highly accurate results. Its straightforward, quick testing process delivers actionable insights to help prevent engine damage by detecting harmful substances like fuel ash, carbon, and oxidized oil products.
Specifications:

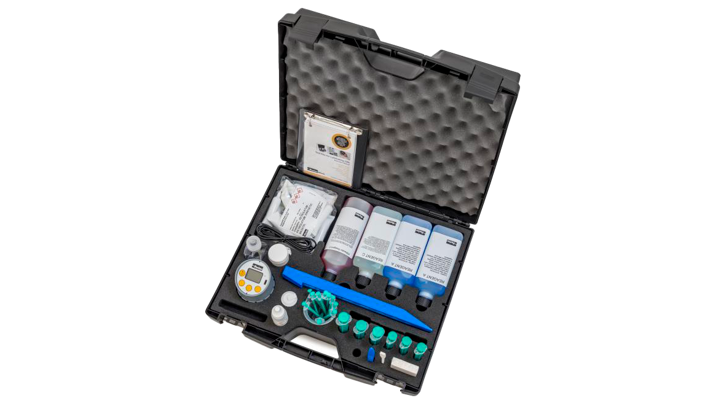

The DIGI + Test Kits contains all the necessary equipment and consumable for everything you need, when you monitor you oil condition.
When you get the test kit it is ready to use and is delivered in a heavy duty marine case with a foam set. This makes it easy for you or your crew to use on-board.
DIGI Plus Test Kits are designed to provide you precise and reliable readings for marine applications.
These kits utilize advanced technology to measure critical parameters such as water content and Total Base Number (TBN) in lubricants.
With easy-to-follow procedures and rapid testing capabilities, they deliver accurate results in minutes.
The robust design and high-quality components ensure consistent performance, helping you maintain optimal engine conditions and prevent potential issues.
By incorporating DIGI Plus Oil Test Kits into your routine maintenance, you can confidently monitor oil quality and enhance the longevity of their equipment.

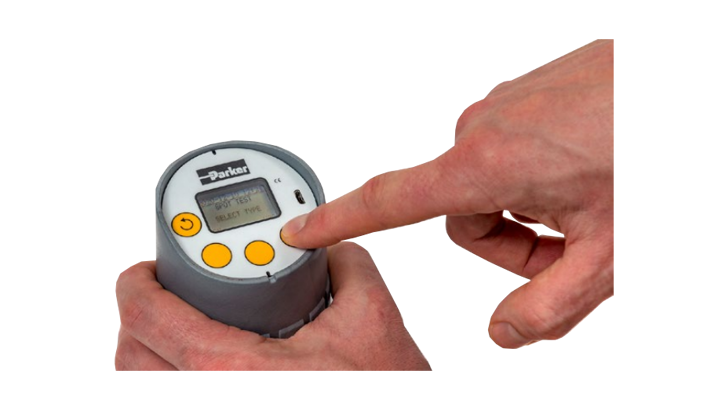

To ensure the longevity and accuracy of your DIGI+ Oil Test Kits, follow these essential maintenance tips.
The DIGI+ Cell, equipped with a color display, is designed to guide users through important test steps, including cell cleaning. After each oil calibration and test, cleaning is necessary. Follow these steps to ensure safety:
This cell is intended for lifetime use without the need for calibration or service - expected lifetime is 5000 tests of 5 years whichever is sooner.
Additionally, there are no user-serviceable parts inside. For service, contact us and we will help you!
DIGI+ is built with precision components to ensure long-term measurement accuracy, eliminating the need for periodic recalibration. However, if quality systems or risk assessments necessitate accuracy verification, DIGI+ can be sent to a service center for accuracy checks and recalibration if necessary.
An oil test kit is a specialized tool designed to analyze the condition of lubricants and fuels. It allows you to measure key parameters such as water content and Total Base Number (TBN) directly on-site.
By providing quick and accurate results, an oil test kit helps monitor the health of oils and fuels, ensuring optimal performance and preventing potential issues in machinery and engines.
These kits are essential for maintaining equipment efficiency, extending service life, and reducing maintenance costs.
Yes, the DIGI+ oil test kits are highly user-friendly.
The DIGI+ Cell is built with a rugged, marine-environment-friendly design, making it straightforward and very easy to use.
When you receive the test kit, it is ready to use and delivered in a heavy-duty marine case with a foam set, ensuring easy handling and operation on-board.
Its simplicity and durability make it an ideal choice for you or your crew, ensuring efficient and accurate oil testing in demanding marine conditions.
Parker Kittiwake offers a comprehensive oil analysis kit that stands out for its ability to deliver precise and reliable results on-site.
Moreover, the DIGI+ Cell is specifically designed to measure and monitor crucial parameters such as water content and Total Base Number (TBN) in oil, making it an invaluable tool for your equipment.
The kit is user-friendly, allowing for straightforward operation and swift, accurate results.
It is both economical and efficient, providing a cost-effective solution for fuel and lubricant oil testing.
With its robust design and rapid analysis capabilities, DIGI+ Oil Test Kits ensures that you can maintain optimal equipment performance and reliability, meeting the demanding needs of various industrial applications.
The DIGI+ Oil Test Kits from Parker Kittiwake is the most cost-efficient available on the market.
Moreover, these test kits benefit your cost of operation by saving money on top-ups compared to the alternative, where topping up is done ‘blindly’ based only on a recommended schedule.
Furthermore, they will save you money as they can help you protect your equipment and elimate damage.
If you want to know the specific price, for the DIGI+ Oil Test Kit that fits your requirements, do not hesitate contacting us here.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| The range of tests included | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water in oil | 0,02%-20% |
||||||||||||||||||
| Viscocity | go / no go |
||||||||||||||||||
| TBN | 5-150 BN |
||||||||||||||||||
| Insolubles test | Qualitative |
||||||||||||||||||
| Acid test kit | 0-6 AN |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
