A portable digital oil test cell designed for on-site oil analysis, measuring water content (H₂O) and Base Number (BN) in lubricating oils. DIGI+ ensures fast, accurate, and reliable condition monitoring to optimize machinery performance and reduce operational costs.
Key Features for You:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.
The DIGI+ Cell offers a modernized yet intuitive interface with smart features designed to enhance usability. It functions as a standalone device for single measurements and can be used offline until advanced features are activated.
With Windows and Mac compatibility, DIGI+ allows for easy configuration and data organization using Sample Point Identification (SPID). This system ensures structured measurements, prevents data loss, and enables quick data retrieval. Results are stored on the device and can be effortlessly transferred to a PC, making oil condition monitoring more efficient than ever.
The DIGI Plus Cell from Parker is ideal for oil condition monitoring, and is know for making testing easier and extremely accurate even when used in challenging conditions.
Some of the DIGI Cell's new features are:

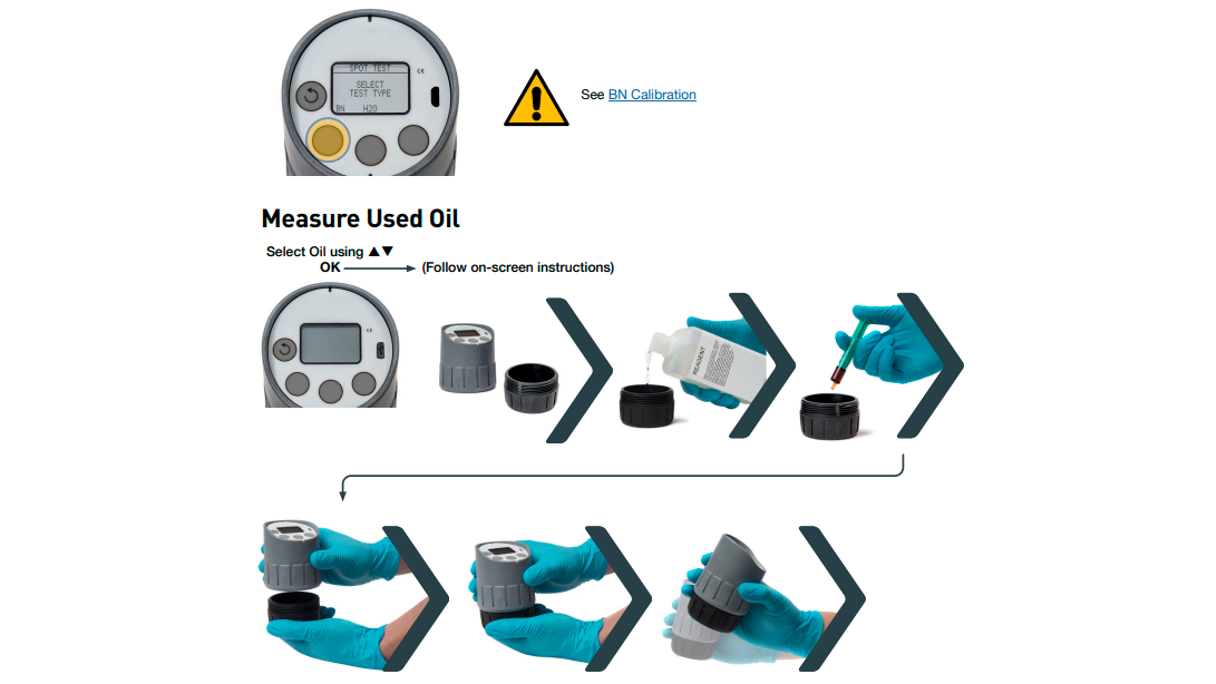

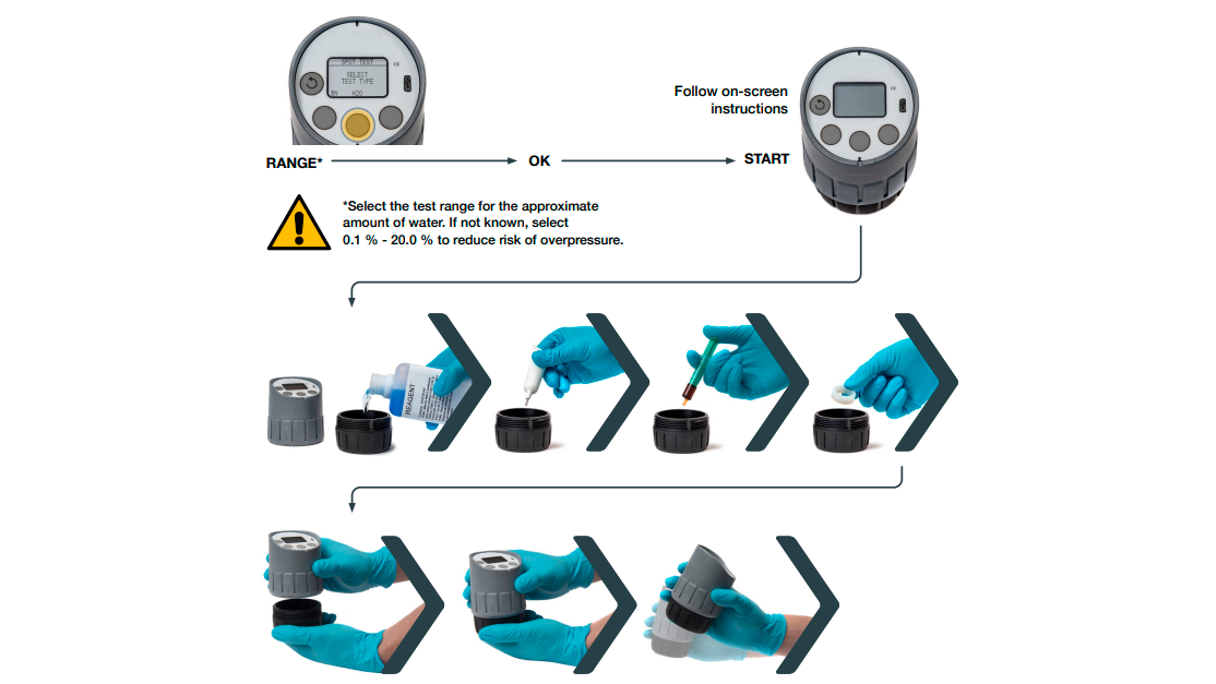

See more instructions in the video here.
By testing your lubricant oil frequently, you can monitor and get rapid diagnostic insights of the quality of the oil and ensure that key properties are always optimal for the intended use.
Maintaining the BN based on measurements, can benefit your cost of operation by saving money on top-ups compared to the alternative, where topping up is done ‘blindly’ based only on a recommended schedule.
Furthermore, detection of a presence or increase of water in your lubricant oil could indicate that the lube oil piping needs some attention in one way or another.
The DIGI+ Cell is built in a rugged and marine environment friendly design. The Cell is straight forward and very easy to use.
The battery will last for 50 tests (5 hours) and have min. 500 charge cycles, which is enough to cover the entire expected lifetime of the cell.
Compatible with mineral and synthetic fluids suitable for FKM (Viton™) elastomer seals, including lubricant oils, hydraulic oils, distillate fuels, and bio-based fuels.

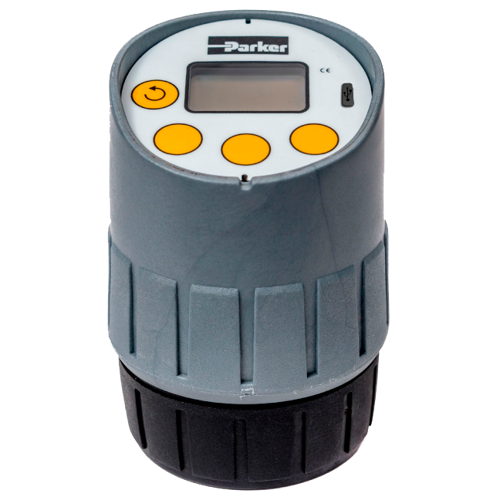

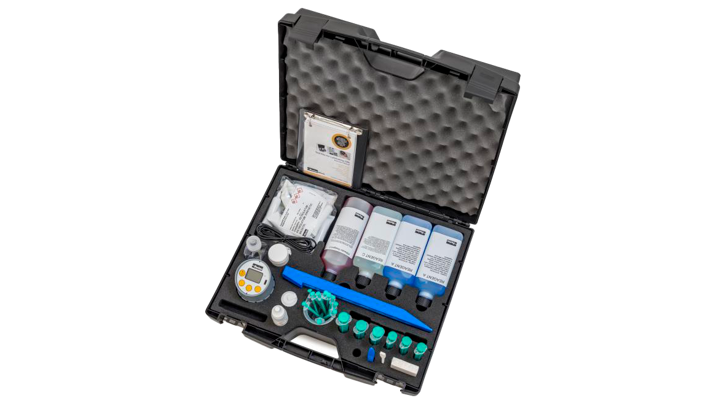

Every DIGI Plus Test Kit includes the DIGI Cell Plus. The high-precision digital measurement cell designed for accurate and repeatable lube oil condition monitoring. This essential component ensures fast, reliable readings, helping users make informed maintenance decisions. With built-in calibration and user-friendly operation, the DIGI Cell Plus simplifies on-site testing - no extra equipment required.
| Product Codes | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Function |
||||||||||||||||||
| ACCK06003 | DIGI+ Test Cell |
||||||||||||||||||
| FG-K6-101-KW+ | DIGI+ water: Water in oil test kit |
||||||||||||||||||
| FG-K6-102-KW+ | DIGI+ water / viscosity kit: Water in oil + Viscostcik |
||||||||||||||||||
| FG-K6-103-KW+ | DIGI+ basic kit: Water in oil + Salt test + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-004-KW+ | DIGI+ BN test kit: TBN oil test kit |
||||||||||||||||||
| FG-K6-107-KW+ | DIGI+ industrial kit: Combined water in oil/BN cell + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-108-KW+ | DIGI+ field kit: Combined water in oil/BN cell + Insolubles test + Viscostick + AN test |
||||||||||||||||||
| FG-K6-110-KW+ | DIGI+ combined kit: Combined water in oil/BN cell + salt test + Insolubles test + Viscostick |
||||||||||||||||||
| FG-K6-971-KW+ | DIGI+ clean oil kit: Water in oil + Viscotube + AN test |
||||||||||||||||||
| Product Code | Function |
|---|---|
| FG-K1-101-KW | DIGI water: Water in oil test kit |
| FG-K1-102-KW | DIGI water / viscosity kit: Water in oil + Viscostcik |
| FG-K1-103-KW | DIGI basic kit: Water in oil + Salt test + Insolubles test + Viscostick |
| FG-K1-004-KW | DIGI BN test kit: TBN oil test kit |
| FG-K1-107-KW | DIGI industrial kit: Combined water in oil/BN cell + Insolubles test + Viscostick |
| FG-K1-108-KW | DIGI field kit: Combined water in oil/BN cell + Insolubles test + Viscostick + AN test |
| FG-K1-110-KW | DIGI combined kit: Combined water in oil/BN cell + salt test + Insolubles test + Viscostick |
| FG-K14971-KW | DIGI clean oil kit: Water in oil + Viscotube + AN test |
| FG-K16897-KW | DIGI biodiesel test kit: Water in oil + Viscometer + Hydrometer + AN etst + Cleanliness test |
| FG-K6-897-KW+ | DIGI+ biodiesel test kit: Water in oil + Viscometer + Hydrometer + AN etst + Cleanliness test |
The DIGI+ Cell, equipped with a color display, is designed to guide users through important test steps, including cell cleaning. After each oil calibration and test, cleaning is necessary. Follow these steps to ensure safety:
This cell is designed for lifetime use without calibration or servicing, with an expected lifespan of 25,000 tests or 5 years, whichever comes first.
Additionally, there are no user-serviceable parts inside. For service, contact us and we will help you!
DIGI+ is built with precision components to ensure long-term measurement accuracy, eliminating the need for periodic recalibration. However, if quality systems or risk assessments necessitate accuracy verification, DIGI+ can be sent to a service center for accuracy checks and recalibration if necessary.
Designed for use in industrial, marine, and offshore applications, the DIGI Cell Plus provides fast, accurate, and reliable condition monitoring to enhance machinery performance and reduce operational costs.
Whether deployed in heavy-duty manufacturing environments, onboard vessels, or offshore platforms, DIGI+ helps detect potential issues before they lead to costly downtime. Its advanced monitoring capabilities ensure equipment operates at peak efficiency, improving safety and extending the lifespan of critical systems.
Ideal for industries where precision and reliability are paramount, DIGI+ is a trusted solution for maintaining optimal operational performance in even the most demanding conditions.
The DIGI+ Cell is designed for on-site oil condition monitoring. It measures water content (H₂O) and Base Number (BN) in lubricating oils, helping users assess oil degradation and contamination for optimized machinery performance.
Yes, the DIGI+ Cell features a user-friendly interface with an improved menu structure and a backlit display. It provides quick, accurate results and allows storage of up to 50 test results, which can be easily downloaded to a PC via USB.
Absolutely. The DIGI+ is built with a rugged and marine-friendly design, making it ideal for industrial, marine, and offshore applications. It is compatible with mineral and synthetic oils, including lubricants, hydraulic fluids, and bio-based fuels.
No regular calibration is required. The device is built with precision components to ensure long-term accuracy. Routine cleaning after each test is recommended to maintain performance. If verification is needed, the DIGI+ can be sent to a service center for accuracy checks.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| The range of tests included | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Water in oil | 0,02%-20% |
||||||||||||||||||
| Viscocity | go / no go |
||||||||||||||||||
| TBN | 5-150 BN |
||||||||||||||||||
| Insolubles test | Qualitative |
||||||||||||||||||
| Acid test kit | 0-6 AN |
||||||||||||||||||
| Test Time | 120-180 seconds |
||||||||||||||||||
| Power (from USB) | Micro-USB: 5 V 100 mA minimum |
||||||||||||||||||
| Tests Per Charge | 50 tests or 5 hours |
||||||||||||||||||
| Minimum Battery Charge Cycles | 500 |
||||||||||||||||||
| Maximum Storage Time From Full Battery | 6 months (stored between -5 °C to 35 °C) |
||||||||||||||||||
| Operating Temperature* | 10 °C to 45 °C |
||||||||||||||||||
| Storage Temperature** | -20 °C to 60 °C |
||||||||||||||||||
| Material Compatibility | Mineral and synthetic fluids compatible with FKM (Viton(tm)) elastomer seals. Lubricant oils, hydraulic oils, |
||||||||||||||||||

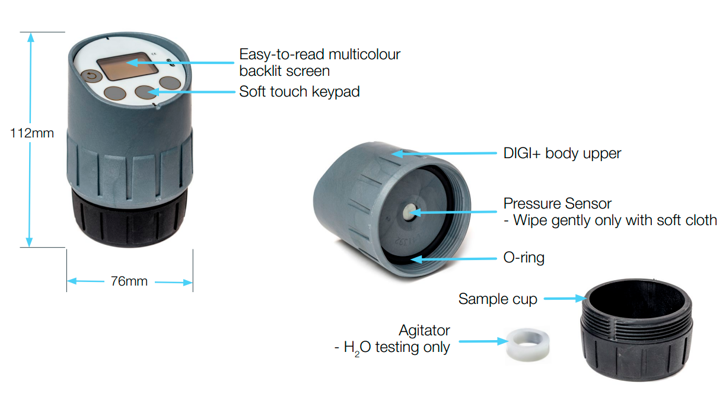

| Unit Dimensions | 112 mm maximum height x 76 mm diameter |
||||||||||||||||||
| Mass | 200 g |
||||||||||||||||||
