A range of On-Site tests for care of hydraulic systems with quick results. Customer specific branding options available.
For sales or commercial inquiries please contact us at marine@insatech.com.
Parker Kittiwake Test Parameters
DIGI Water in Oil test
Maintain and protect your equipment, whilst eliminating damage caused by water in your oil.
- DIGI El-Test cell /5 year battery life
- Ranges 0-1%, 0-10%, 0-20%, 200-10000ppm

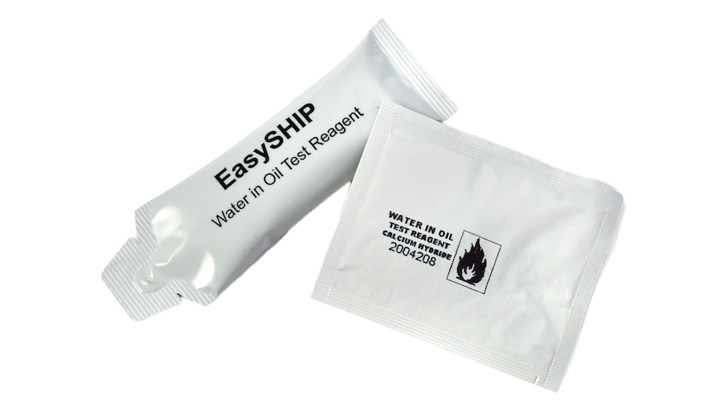

- EasySHIP reagent packs for 50 tests

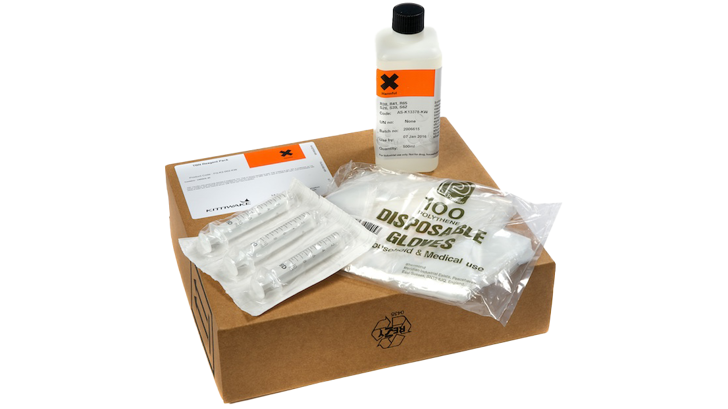

DIGI BN (Base Number, formerly Total Base Number) test
Measure your oil’s alkaline reserve and ability to neutralise acids from combustion.
- Range: 5 - 100 BN
- Appropriate for cilinder oils & system
- Simple, econimical monitoring of lubricants

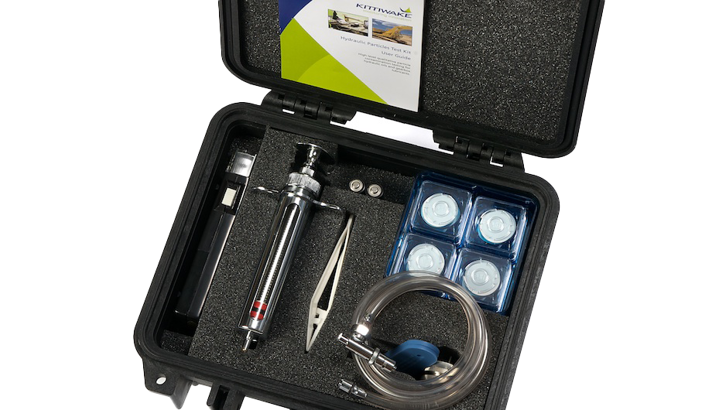

DIGI Hydraulic Test
Monitoring your hydraulic and gearbox oils is a necessary part of any preventative maintenance programme.
- visually test for hydraulic oil contamination
- Wear metals, silica and dust, fibres and water contamination
- Qualitative results
- 100 tests per replacement patch paper pack
Viscosity test
Viscosity is widely regarded as an oils most important characteristic. It is the viscosity that shows the oil’s resistance to flow and the strength of the oil film between surfaces.
- Make informed maintenance decisions and prevent costly machinery downtime
- Measuring oil viscosity provides early detection of contamination, fuel ingress and shear thinning
- Suitable for hydraulic oils, diesel engine oils, enclosed gears and fuel oils
- Simple, cost effective equipment requiring no consumables
2 Variants available:

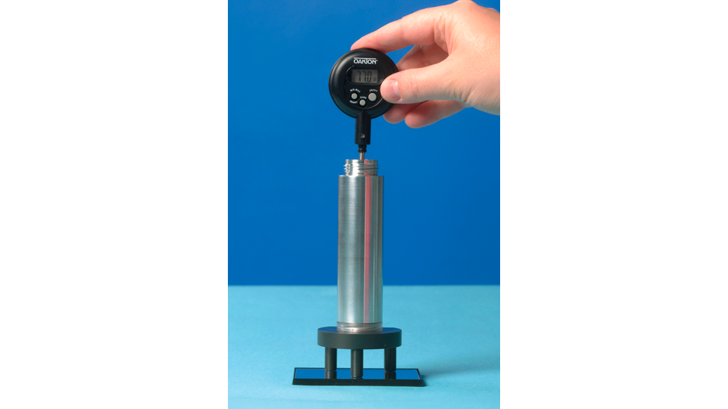

DIGI Viscotube
- Drop ball design for hydraulic or system oils
- Reporting diectly in cSt at 40oC, 20-600 cSt
Application: Lubricating oils, hydraulic oil, warm fuel oil
Test Time: 1...10 minutes
ECON Viscostick
- Simple entry level comparative viscosity stick
- Go/No Go indication of viscosity changes within 1 SAE grade
Application: Lubricating oils, viscous hydraulics
Test Time: 1 minute
ECON AN (Acid Number, formerly Total Acid Number) test
Testing for AN is essential to maintain and protect your equipment, preventing damage in advance.
- Simple entry level test for AN in Hydraulic and gear oils
- Provides quantitative results for AN (0-6 TAN range)
- Reagent pack (50 tests)
ECON Salt test
Eliminate rapid corrosion in lube oil, fuel or hydraulic systems by checking for the presence of salt.
- Simple entry level comparative test for go/no go
- Determines if water contamination is salt or fresh
- Also forms stand alone reagent pack for 25 tests
ECON Insolubles test
- Simple entry level comparative test for trending
- Detect insolubles loading and residual dispersant availability
- Also forms stand alone reagent pack for 25 tests
Brochure
-
Brochure - Oil Test Solutions - Parker Kittiwake
English | pdf
