Parkers Fuel Density Meter

Density Meter

The Parker Kittiwake Density Meter can be used for both distillate and residual fuel oils. This equipment use hydrometers to measure the density of fuel, thus, the Density Meter can be used to confirm the quantity as well as he grade of the fuel you get delivered for your vessel. So, you get a fast and reliable device to accurately confirm the exact bunker delivery.

The key features that will benefit you includes:

  • Accuracy like laboratory testing
  • Verification that it is the correct grate of fuel
  • Fast and accurate results.

We deliver directly and globally to end-users, agents, and resellers. Contact us at marine@insatech.com.

Contact us now

On-site fast and accurate testing

Along with viscosity, the density of marine fuels is one of the main parameters that can be used to identify and confirm quality of a fuel. Checking the density of a fuel prior to or at the beginning of a bunker operation, could therefor be a crucial aid in determining if the delivered fuel is according to the agreed quality and specifications.

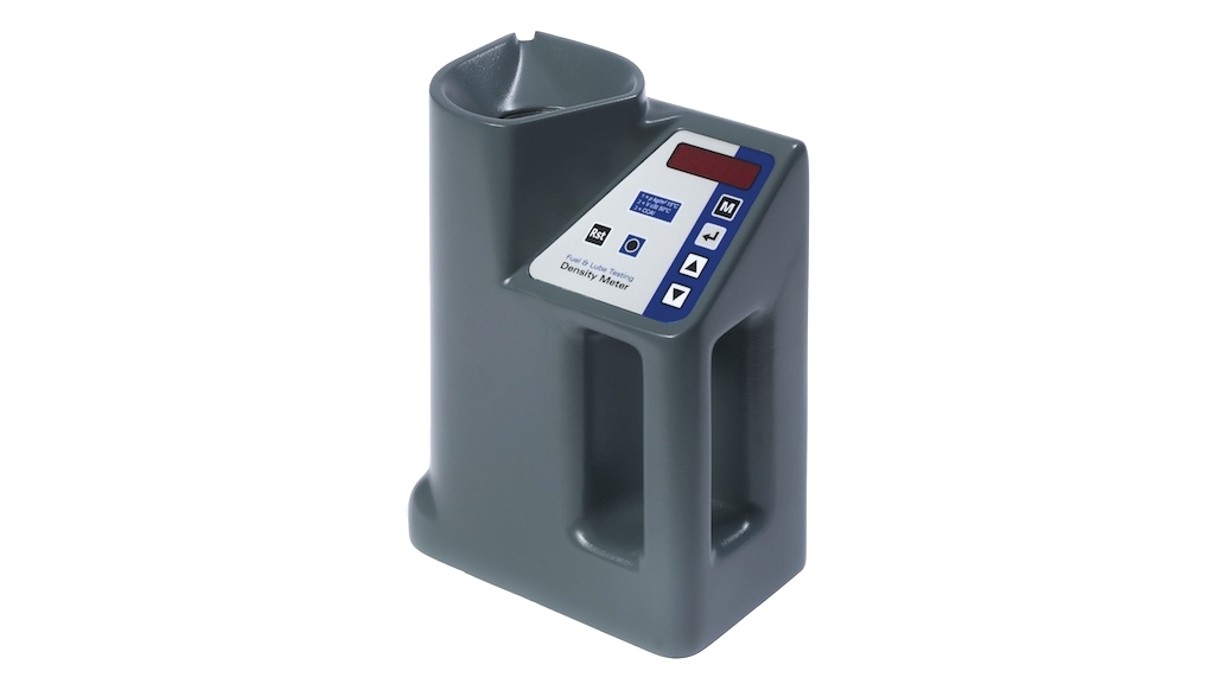

The Marine Fuel Density Meter FG-K1-300-KW from Parker Kittiwake is:

  • Compact
  • Cost effective
  • Efficient.

Thus, the perfect tool for measuring density of all conventional marine fuel types on board. By measuring the fuel oil density in kg/m3 at 50°C with its built-in heating feature, it provides a measurement with no further need for calculations or conversions.

Robust and reliable

The main advantages and benefits you wil get with the Density Meter from Parker Kittiwake includes:

  • Ensure the correct weight og fuel has been delivered
  • Fast, accurate results for multiple oil parameters
  • Make informed onsite maintenance decisions
  • Act before the onset of critical failure
  • Robust and reliable in harsh or remote environments.

Moreover, the density meter is as accurate as any laboratory testing, as well as it can fast and accurately verify that it is the correct grade of fuel that you got delivered.

Exactly what you need? Contact us now!

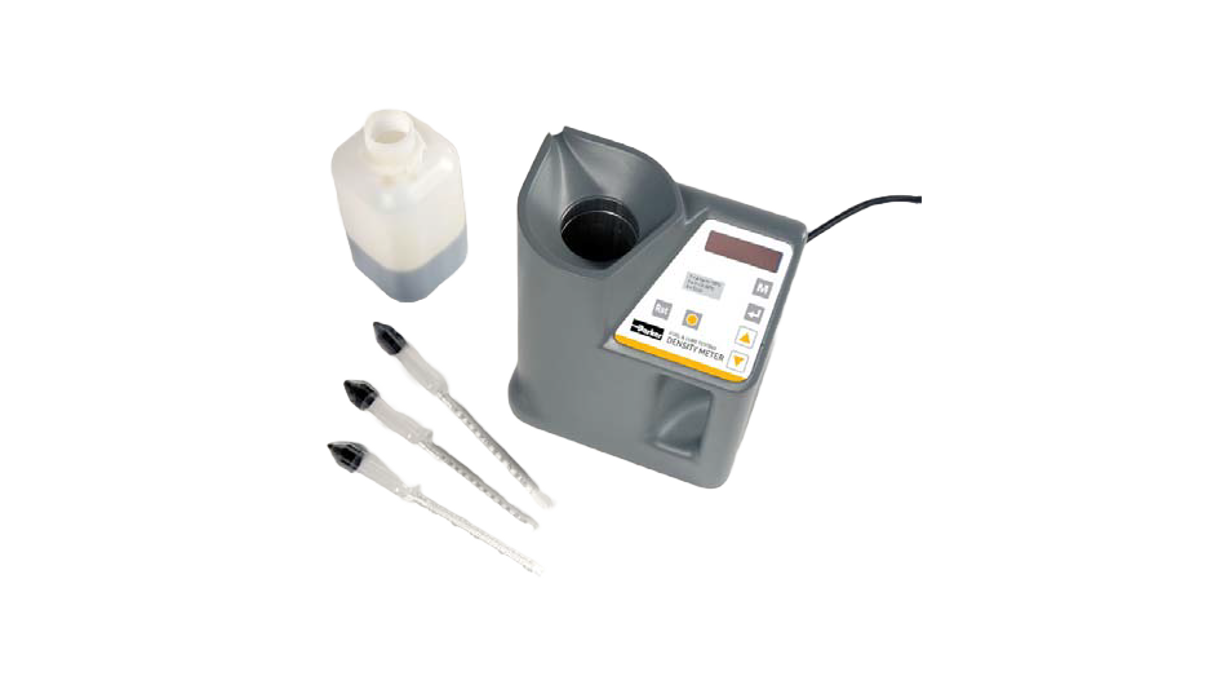

Ordering Information (FG-K1-300-KW), Spare hydrometers & consumables:
Product code

Range, Relative Density
AS-K3-014-KW

0.80 - 1.01 @ 15°C
AS-K3-015-KW

0.85 - 0.95 @ 15°C
AS-K3-016-KW

0.90 - 1.01 @ 15°C
Density Meter Parker 1 Kittiwake 1024X16x9

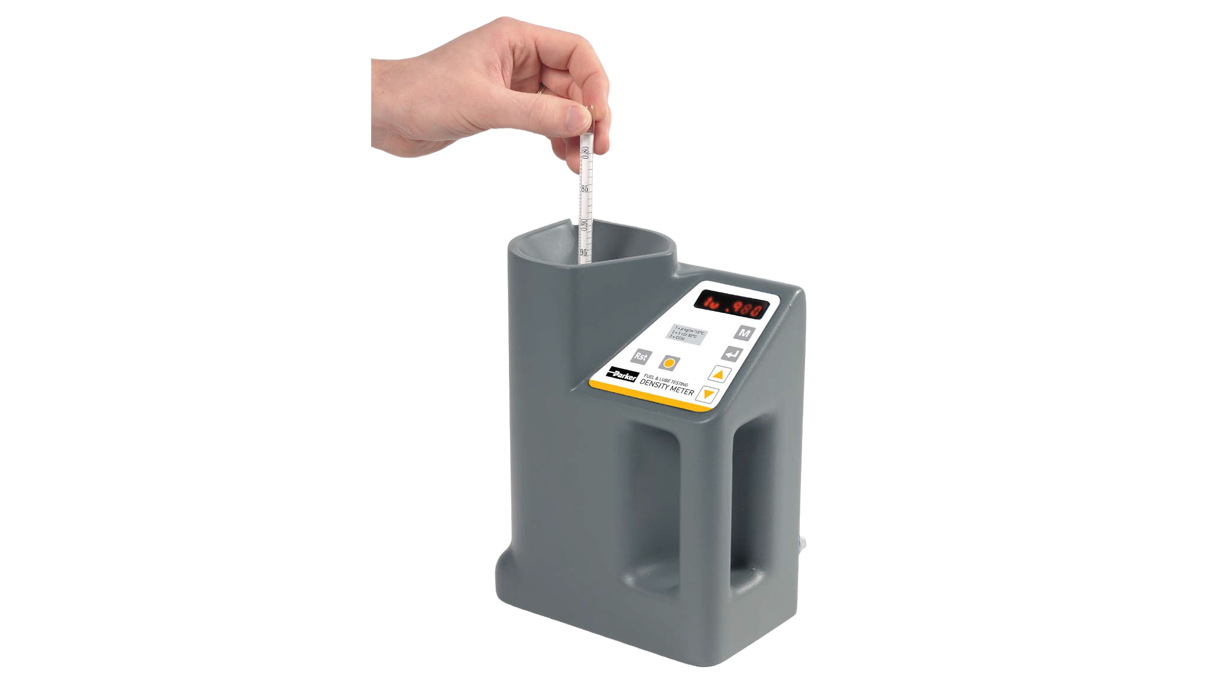

Easy to use - Get results within 10 minutes

The equipment is designed to be used by the crew on-board of the vessel, and the test itself is completed within 10 minutes1. An immediate re-test of an already heated sample for confirmation of results, will take no more than 30 seconds.

Furthermore, the FG-K1-300-KW performs according to ASTM D-1298 and IP160.

If it is required to measure the density of highly viscous fuels, a measurement at 70°C is also an option with this instrument. As standard, the FG-K1-300-KW also provides CCAI2, which is density in vacuum and viscosity conversions.

1Based on a fuel sample of 15°C
2Calculated Carbon Aromatic Index

Note: The Density meter is not suitable for use with any fuel with a low flash point temperature, and must not be used for heating any liquids other than diesel or residual fuel oils.

Contact us here and get more information

Detect out-of-spec fuels and lubricants

You can test on-site, at the point of use, which makes it possible for you, the engineers and the crew on-board of the vessel to conduct oil analysis quickly and easily. By detecting the out-of-spec fuels or lubricants you can identify potential problems before you damage any of your equipment.

This means that you can:

  • Secure the correct weight of fuel is delivered
  • Rapid and accurate results for multiple oil parameters
  • Make informed on-site maintenance decisions
  • Act before any onset of failure (even critical ones)
  • Vigorous and reliable in both harsh or remote environments.

Thus, you can protect your assets, while you improve your productivity and increase your uptime because you can use this regular on-board oil analysis.





Need our help? Contact us now.

Density Meter Parker Kittiwake 1024X16x9
Parker Fuel Density Meter
Density Meter Parker Kittiwake 1024X16x9
Density Meter Parker 1 Kittiwake 1024X16x9
Parker Fuel Density Meter
Density Meter Parker Kittiwake 1024X16x9
Density Meter Parker 1 Kittiwake 1024X16x9

FAQ

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Specifications
Accuracy

Typically within ± 0.1% (800-1010 kg/m³)
Calculations

Density in kg/m³at 15°C in vacuo, centiPoise to centiStokes, CCAI - Calculated Carbon Index
Correlation

ASTM D1298 IP160
Dimensions

18 cm x 23 cm x 10 cm
Power

110/240 VAC (auto selected)
Range

800 to 1010 kg/m³ @ 15°C
Temperature

50°C and 70°C
Test Time

Heating from 15°C 10 mins, Repeat test maximum 30 seconds
Weight

2.20 kg

Brochure

  • Data Sheet - Density Meter - Parker Kittiwake
    English | pdf
  • Brochure - Oil Analysis Solution - Parker Kittiwake
    English | pdf
