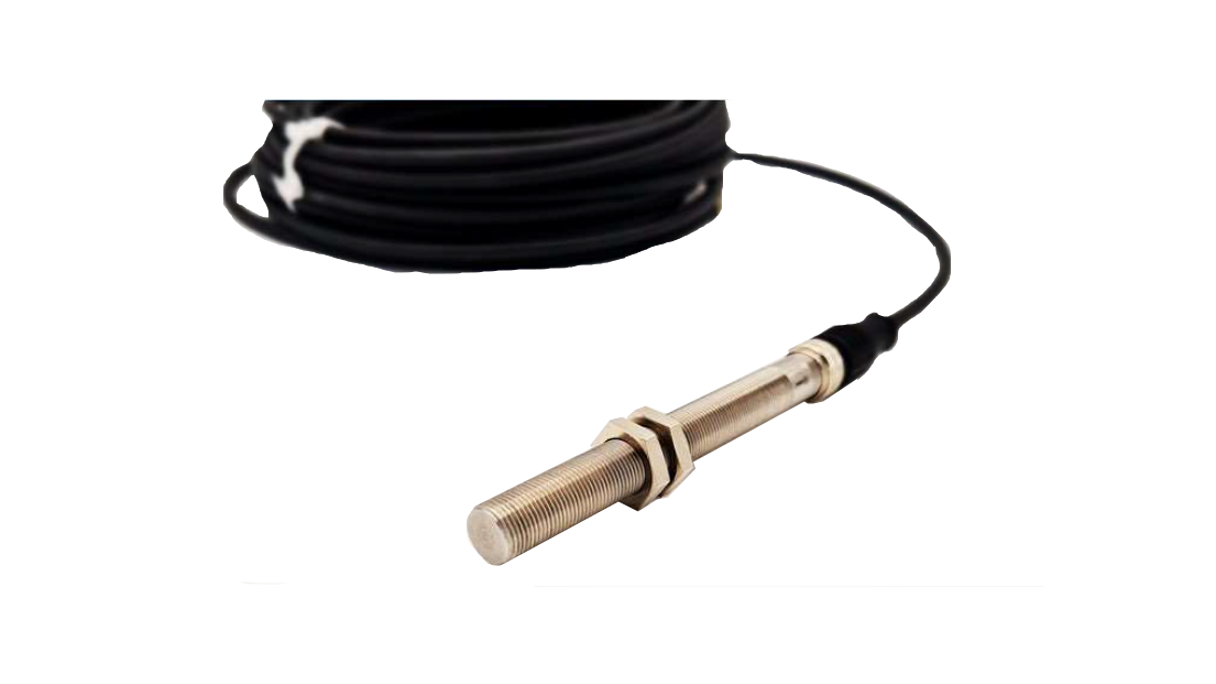

Speed sensor FGL 01620

The speed sensor FGL 01620 from Dr. E. Horn can be used both at extremely low speed, and almost full stop can be detected, and it is also applicable for highspeed rotations up to 20kHz frequency. It is a preferred sensor for offshore and marine purposes because of its vigorous stainless-steel design.

The FGL 01630 has the following benefits for you:

Wide speed sensing range
Robust design
Contactless, thus, wear-free
Large air gap viable
Multifunctional sensing options.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

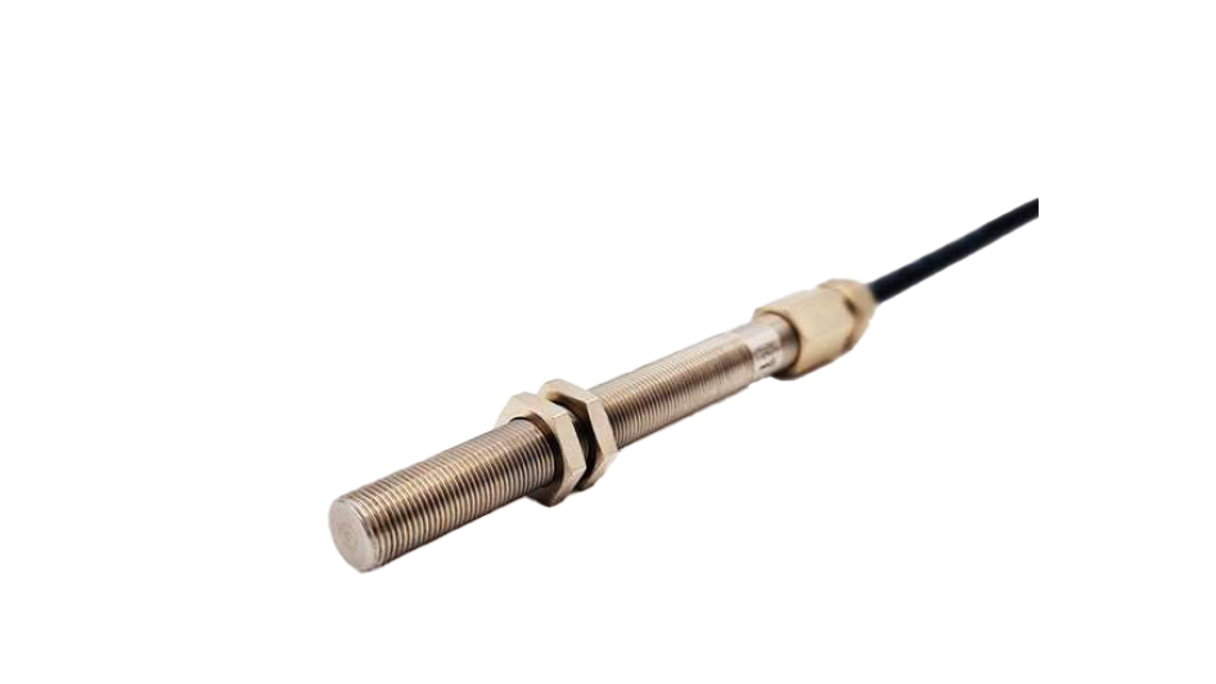

How does the speed sensor work?

The speed sensor FGL 01620 from HORN can be used both at extremely low speed, and almost full stop can be detected, and it is also applicable for highspeed rotations up to 20kHz frequency. It is a preferred sensor for offshore and marine purposes because of its vigorous stainless-steel design.

The sensor detects ferromagnetic materials such as gear wheels and can handle modules of one and up to six.

The permitted system distance between the sensor and the gearwheel (see the technical specifications here) is bigger than average for air gaps. Thus, in combination with the fine thread pitch of 1 mm. a simple installation is secured.

The sensor signal is highly stable because of the differential measurement principle, and the square-wave signal voltage is available through a push-pull output stage.

Additionally, there is a smart sensor option available because even though the FGL01620 has been designed as a basic measuring unit it offers optional functions to be integrated such as temperature and/ or vibration sensing.

Typical Applications

The wide range of speed the FGL01620 can measure allows the sensor to be applied in various applications such as:

Marine Engines
Wind Power generation
Large gear units
Water turbines
Safety systems.

Need our help? Contact us now.

The Attributes of the Output Signal

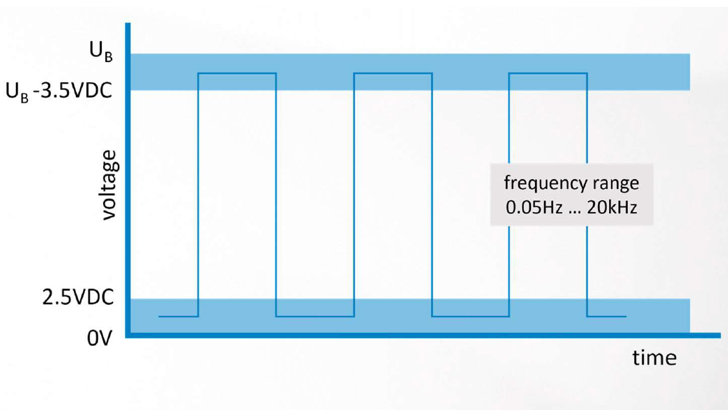

With the single channel sensor, the output shows the rotational speed as a single-track frequency signal.

This is visualized in the picture on the left.

Do you have any questions? Contact us

FGL01620 Attributes Output Signal 5 1024 16X9

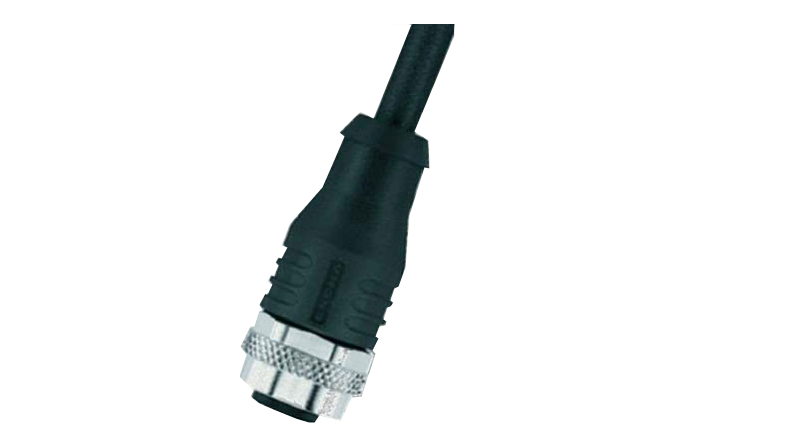

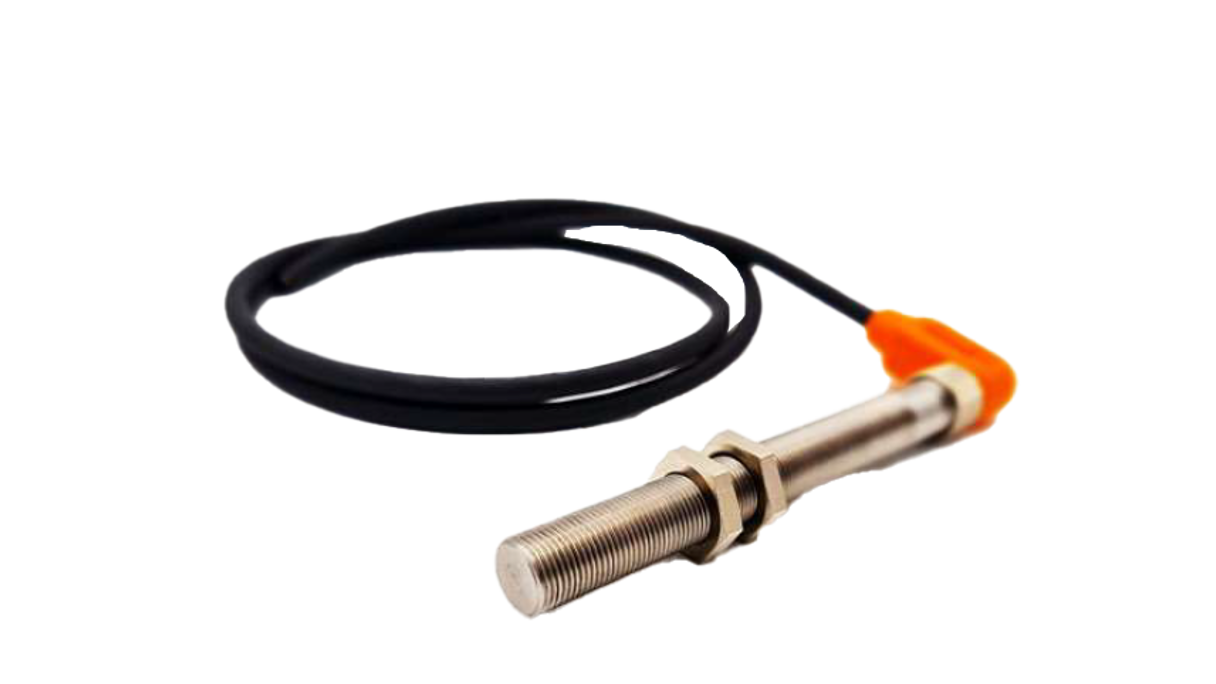

The Cable type KGS03252-xx

The cable, KGS03252-xx is a Flexible, silicone- and halogen-free control cable with high mechanical strength.

KGS03252-xx is highly resistant to chemicals, hydrolysis, oil, diesel oil, and microbes.

Moreover, it is possible to get great EMC properties because of the shielded version, which is available for this cable.

The KGS03252-xx also complies with the UL and CSA (UL 10493/20549; cULus) requirements.

The cable is available in the following lengths (xx):

5 m.
10 m.
15 m.
20 m.

Technical specifications for KGS03252-xx
Connector type	M12, female, straight
Number of pins	4
Pin assignment	1 BN, 2 WH, 3 BU, 4 BK
Coding of	A
Rated voltage/ current	250V / 4A
Resistance	≤ 5mΩ
Insulation resistance	>=10⁸Ω
Ambient temperature	-40°c. .. +90°c (Fixed mounting)
Shielding	with shielding
Degree of protection	IP 67 (mounted)
Standards	IEC 61076-2-101
Cable outer diameter	5.1mm
Cable-jacket material	PUR
Cable-jacket colour	BK, similar RAL9005
Wire cross-section	4 x 0.34mm²
Bending radius (fixed)	5x cable diameter
Wire colours	BN, WH, BU, BK
Shielding	Yes
Halogen-free	Yes
Special features	Flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain adapted, torsion-resistant, welding sparks resistant, halogen-free, silicone-free, oil resistant

Different Options and available products

The FGL 01620 sensor is first and foremost used in combination with engine control system – systems which HORN develops themselves, as well as all the corresponding indicating instruments.

All can be developed and produced according to your specific needs and wishes. So, if you need to use the FGL01620 in a safety-level environment (SIL-level required) this is also available.

Moreover, different applicable products are available with this sensor like portable tachometers, speed indicators, and programmable converters for limit and alert settings.

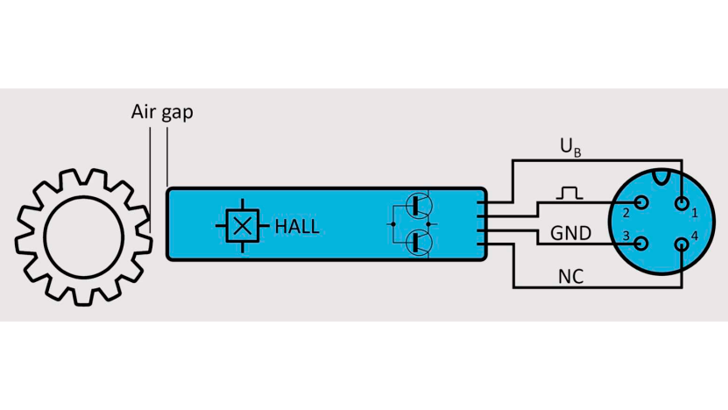

How the Hall Effect Works in the FGL 01620 Sensor

The Horn FGL 01620 Hall-effect speed sensor provides precise, contactless RPM measurement by detecting changes in the magnetic field of a rotating ferromagnetic object. With a stable square-wave output up to 20 kHz, it ensures accurate speed monitoring across various applications, including marine engines, wind turbines, and industrial gearboxes. Its robust stainless-steel housing and large air gap tolerance enable reliable operation in harsh environments.

Designed for durability and efficiency, the FGL 01620 supports engine safety, process optimization, and predictive maintenance with optional temperature and vibration sensing.

Order Directly from Us – Get in Touch

Smart Sensor Technology
– Decentralized Intelligence for Engine Safety

Horn sensors continuously measure critical parameters to ensure engine safety. They can be sold individually or integrated into our monitoring systems, providing customized solutions tailored to customer needs.

Ensuring Safety for Large Engines and Drives

Horn specialize in safety solutions for large 4-stroke and 2-stroke engines, whether used in marine vessels, power generation, or industrial applications on land.

Looking for something else? See our selection of sensors from HORN:

Sensors

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Brochure - Speed Sensor FGL 01620 - HORN
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Specifications
Power supply UB	18 ... 32VDC accord. DNV CG-0339 (min. voltage lOVDC)
Current consumption	8 ... 20mA (accord. Load)
Signal output characteristics	1_max = ±20mA; U_low < 2.5VDC; U_high > U_B - 3.5VDC
Frequency range	0.05Hz ... 20kHz
Operating temperature	-40°C ... + 125°C
Electrical insulation	S00V each wire against housing
Short circuit proof / inverse polarity	Yes
EMC / ESD	accord. DNV CG-0339
Pole wheel	Ferromagnetic tooth width >lOmm (gearwheel module M = 1...6)
Housing	Non-magnetic, stainless steel
Protection degree acc. to DIN40050	Sensor head IP68 Connector side IP67
Vibration	4G accord. DNV CG-0339
Connection terminals (M12x1)	1 = 24VDC 2 = signal OUT 3 = GND 4 = NC (sensor)
Certificates	Class approval DNV
