Dr. E. Horn Pressure Transmitter TGL014xxx

Pressure Transmitter TGL014xxx

The pressure transmitter TGL014xxx from Dr. E. Horn is designed for measuring the absolute and gauge pressure of various liquids including gas and vapors.

In general, the pressure sensor from HORN measures the pressure occurring in the engine compartment against the atmosphere. The piston defects can be detected by the means of this pressure measurement; thus, it is an essential variable in the assessment of the smooth operation of your engine.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Installation of the TGL014xxx

No matter the orientation of the pressure transmitter the function will be the same.

However, to protect the process connection, as well as the pressure diaphragm from damage you should remove the protective cap only right before you install the sensor.

Be aware, that the sensor has to be installed according to the applicable national guidelines for pressure components.

Moreover, we recommend using isolating valves, siphons, etc.

Also, during the installation, you should ensure that there is no water that enters the housing.

Safety considerations

Installing your pressure transmitter safely is important to us!

So, when the transmitter is being installed, connected, commissioned, operated, and maintained this has to be done only by qualified and authorized crew members.

Moreover, the installation should be done under strict observance of the operating instruction you can find here, as well as relevant national standards, legal requirements, and where it is relevant the product certification.

Smart Sensor Technology
– Decentralized Intelligence for Engine Safety

Horn sensors continuously measure critical parameters to ensure engine safety. They can be sold individually or integrated into our monitoring systems, providing customized solutions tailored to customer needs.

Ensuring Safety for Large Engines and Drives

Horn specialize in safety solutions for large 4-stroke and 2-stroke engines, whether used in marine vessels, power generation, or industrial applications on land.

Looking for something else? See our selection of sensors from HORN:

Sensors

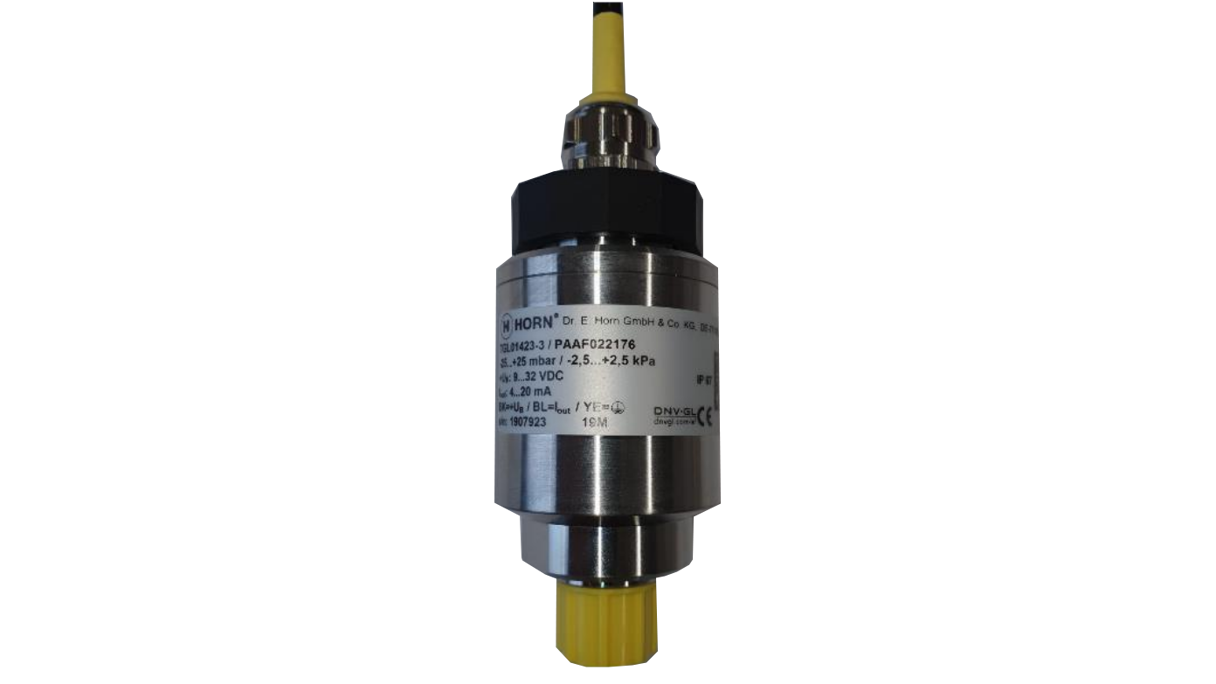

Pressure Transmitter TGL014 HORN 1024 16X9

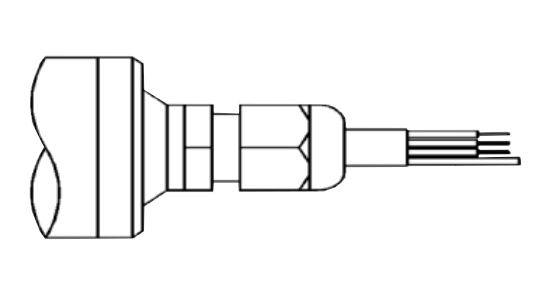

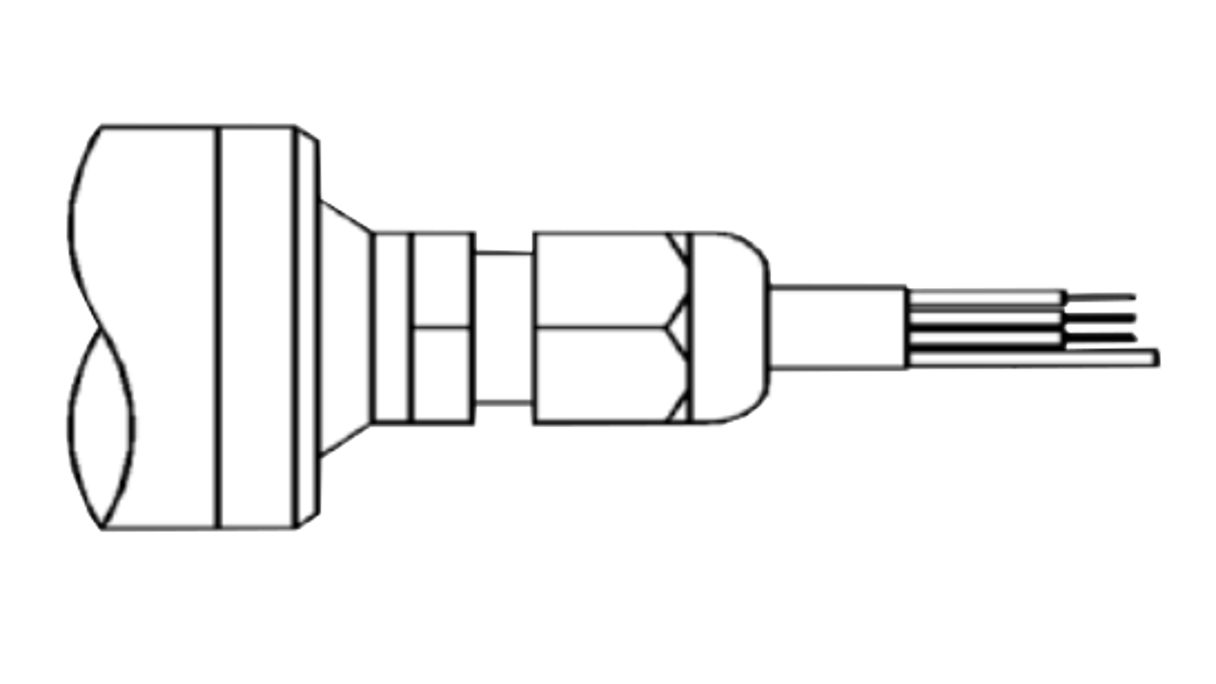

Vented Cable Pressure Transmitter TGL014 HORN 1024 16X9

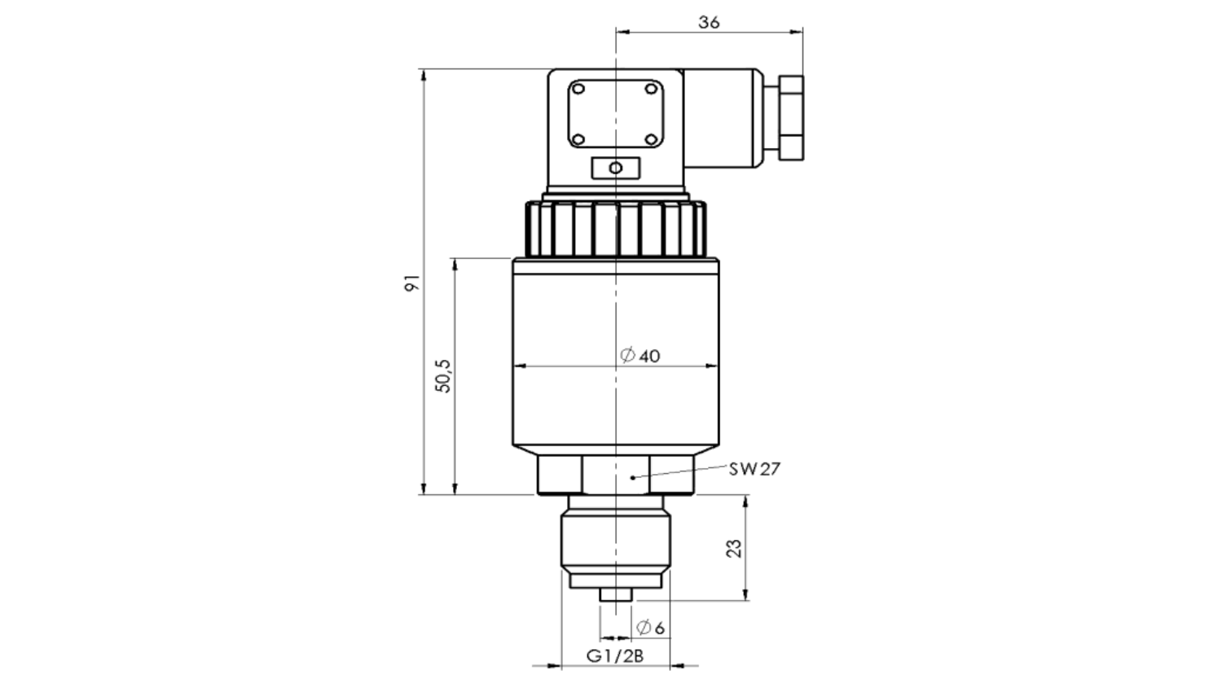

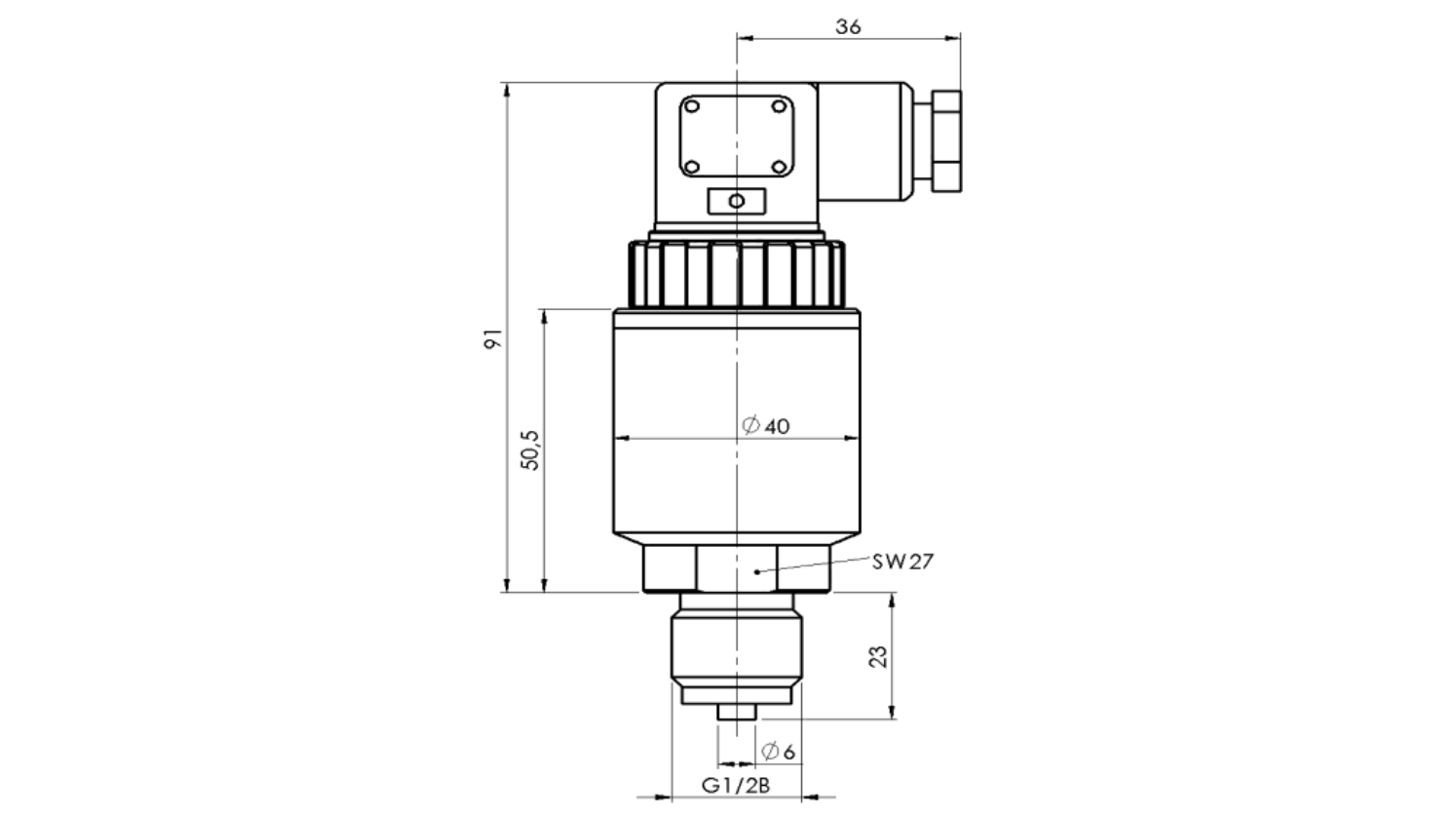

Pressure Transmitter TGL014 Meassures HORN 1024 16X9

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Data Sheet - Pressure transmitter - HORN
English | pdf

Download
Operation Manual - Pressure transmitter - HORN
English | pdf

Download
Article - Drawing - Pressure transmitter - HORN
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Specifications for TGL014xxx
Supply voltage	18 ... 32V DC
Current Consumption	< 30 mA
Output current	4-20mA, two wire system
Load resistor	> 500R
Wrong polarity protection	yes
Operating temperature	-25 ... 80 °C
Storage temperature	-25 ... +100 °C
Protection class	IP 67, acc. to EDN60529
Time constant	approx. 200ms for rising output signal 10% to 90%
Over pressure	-0.3 bar to +4 bar max
overall accuracy	0,5% f.s.
