Magnetic Field Sensor FGL01612
The FGL01612 from Dr. E. Horn is a sensor used for measuring magnetic fields. The sensor is used in combination with two other devices: the pulse amplifier (EV299013) and the magnet (MG003272).
Thus, the Magnetic sensor is consisting of the following three parts:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.
For proper operation, it is essential that the tube, tube clamps, and fastening screws are crafted from materials that are not magnetic. It is crucial to ensure that these materials do not acquire magnetism during the manufacturing process, such as during welding. If magnetization does occur, demagnetization should be performed afterward.
The pulse amplifier is specifically designed to be installed in the control cabinet using 35 mm DIN EN rails. It features a relay output, and the activation of the relay is indicated by a red LED when a seam is detected. The green LED serves as an indicator for the operating voltage.
To guarantee reliable functionality, a single sensor should be utilized for pipe diameters up to 300 mm, whereas larger pipe diameters require the use of two sensors. If two sensors are employed, they must be positioned diametrically and connected to the two inputs of the pulse amplifier accordingly.
If necessary, the sensor's sensitivity can be adjusted to match the installation conditions. To accomplish this, the sensor's cover needs to be taken off. The sensitivity can then be modified using the adjusting screw located on the potentiometer labeled as "Sensitivity".
The Magnetic Field Sensor set is packed in a foil bag consisting of:
In a separate packing, you find the pulse amplifier type EV299013.
The integration of the three devices: The sensor FGL01612, the pulse amplifier EV299013, and the magnet MG003272 can be used in the detection of seams on dyeing machines.
By securely attaching a magnet to the fabric web's seam, it becomes feasible to ascertain the fabric web's revolutions utilizing the aforementioned devices.
Band clamps are utilized to affix one or two sensors onto the flow tube of the dyeing machine.
However, the usage of the magnetic field sensor is not restricted to this use. The magnetic sensors can be used for different measuring tasks, like speed measurement, which is a large part of HORN sensors.
Furthermore, magnetic field sensors are used for motion detection in a very universal way.
Horn sensors continuously measure critical parameters to ensure engine safety. They can be sold individually or integrated into our monitoring systems, providing customized solutions tailored to customer needs.
Ensuring Safety for Large Engines and Drives
Horn specialize in safety solutions for large 4-stroke and 2-stroke engines, whether used in marine vessels, power generation, or industrial applications on land.
Looking for something else? See our selection of sensors from HORN:
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications for FGL01612 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mounting | Through holes |
||||||||||||||||||
| Housing material | Aluminium die casting |
||||||||||||||||||
| Housing paint | Textured paint RAL 5009 = Azure blue |
||||||||||||||||||
| Connection type | Cable HI-Flex-CK3x0,34 mm2 |
||||||||||||||||||

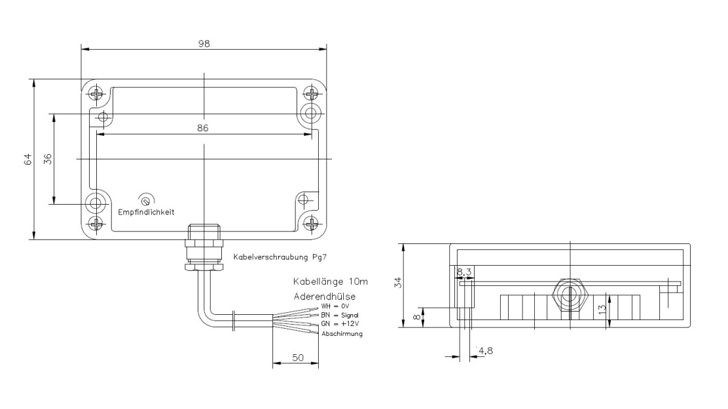

| Dimensions | 98 x 64 x 34 cm. |
||||||||||||||||||
| Max. operating temp. | -25....+110 °C |
||||||||||||||||||
| Protection class | IP 67 DIN 40 050 |
||||||||||||||||||
| Technical Specifications for EV299013 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating voltage | 24 V DC +/- 15 % |
||||||||||||||||||
| Current consumption | max. 80 mA |
||||||||||||||||||
| Number of inputs | 2 |
||||||||||||||||||
| Input signals | Output of sensor FGL01612 |
||||||||||||||||||
| Relay output |
|
||||||||||||||||||
| LED indicators |
|
||||||||||||||||||
| Housing material | Scre terminals |
||||||||||||||||||
| Connection type | 0,2-4 mm2 rigid / 0,2-2,5 |
||||||||||||||||||
| Connection cross-section | mm2 stranded |
||||||||||||||||||
| Mounting | snap-on to profile rail, TS 35 EN 50 022 |
||||||||||||||||||
| Dimensions | 100.5 x 25 x 79 cm. |
||||||||||||||||||
| max. operating temp. | -10...+85 °C (Minimum distance for |
||||||||||||||||||
| Protection class | Housing IP40 / terminals IP 20 DIN 40 050 |
||||||||||||||||||
| Technical specifications for MG003272 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stirring rod design | Cylindrical shape |
||||||||||||||||||
| Outer diameter | D = ~ 9 mm |
||||||||||||||||||
| Length / overall length | L = ~ 40 mm |
||||||||||||||||||
| Magnet material | AlNiCo 5 |
||||||||||||||||||
| Envelope | PTFE |
||||||||||||||||||
