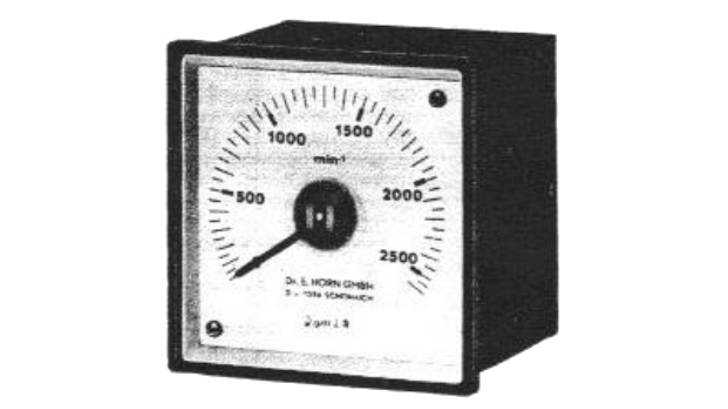

Dr. E. Horn tacho indicators of type EAF ... 5 offer a comprehensive solution for measuring and displaying pulse-frequency signals obtained from contactless sensors. These indicators incorporate a built-in measuring converter that directly converts the pulse-frequency signal into a driving direct current for the meter.

The flexibility of these indicators allows for the allocation of any frequency range to any indication range within the specified technical limits.

Features

  • Analog Display
  • Robust Construction
  • Versatile Mounting Options
  • Weatherproof and Seawater-Resistant

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Contact us now

Simple and Easy to Read

The analog displays from HORN is giving you a display that is easy and simple to read.

This inherent simplicity and ease to read is also the primary rationale behind the continued prevalence of analog display instruments, ranging from dial instruments to rotating symbols driven by stepper motors, to voltage-independent speed indicators with moving coil movements.

Did you not find what you were looking for?

Please, do not hesitate contacting us here.

Horn Tacho Indicator

Advantages of the EAF Tacho Indicator

One of the notable advantages of the EAF tacho indicators is their compatibility with a wide range of sensors due to various connection options.

HORNEL pulse sensors are highly recommended as they have defined frequency ranges that align well with the design of these indicators.



Exactly what you need? Contact us here

Customized to Your Needs

Upon special customer request, the indicators can be customized to include an additional current output of 0 to 20 mA, except for specific types.

To accommodate specific requirements, the response threshold for the input signal, display settings, and current output can be easily adjusted using a small 2 mm screwdriver, with plastic plugs conveniently located at the rear of the meter.

This level of adjustability ensures optimal functionality and performance for different measurement applications.

Why Analog Displays Are Still Widely Used

Simple and clear readability remains the key reason for the continued use of analog display instruments, ranging from dial gauges and rotating symbols (stepper motor-driven) to externally voltage-independent speed indicators with moving coil mechanisms.

Looking for something else? See our selection of analog displays from HORN:

Displays

Horn Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications Tacho Indicator EAF
Calibration

As required, in accordance with the parameter to be measured
Accuracy class

1.5/0.2 (VDE 0410)
Input

Matched to sensor, normal input sensitivity 400 mVpp, maximum input sensitivity 50 mVpp;
Pulse frequency range
  • Initial value: min. 20 Hz
  • full scale: min. 170 Hz,
  • max. 10 kHz
Supply voltage

230 VAC or 115 VAC ± 10 %/ 50 to 60 Hz or 24 VDC ± 20 %
Temperature range

0 ... + 45 °C
Protection degree
  • Rectangular units: Terminals IP 00 - case IP 52
  • Round units: terminals IP 00 - case IP 54
  • Type EAF 107. 5e IP 66
Mounting
  • Rectangular units: DIN 43835 Form B
  • Type EAF 144x72.5 s Form C
  • Type EAF….5 Q s K screw clamp
Current output

Special version 0…20 mA or 4 … 20 mA (max. burden voltage 10V)
