Dr. E. Horn Digital Indicator MDA

Digital Indicator MDA 26...

The MDA digital indicators from Dr. E. Horn are versatile and programmable instruments designed for various measurement applications. These digital touch panel can be customized to your needs and is available in two models: the Digital Indicator Programmable for U/I or Pt100 Input and the Digital Speed-Indicator with one Frequency Input.

Features

Versatile Input Compatibility
Programmable Frequency Range
High-Resolution Display
User-Friendly Operation

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Intuitive and reliable in harsh surroundings

In general, HORN’s selection of digital displays for status and measured values expands the sensor range, offering the capability to present information on the parameters captured by the sensors. These displays feature clear and easily understandable visuals, designed to be intuitive even in challenging environmental conditions.

Moreover, their robust construction ensures durability and reliability in harsh surroundings.

Did you not find what you were looking for?

Please, do not hesitate contacting us here.

Digital Indicator Programmable for U/I or Pt100 Input

The MDA 26 indicator functions as both a voltmeter and a temperature-measuring device. It is a member of a collection of digital panel instruments that provide direct process value display or programmable indirect indication.

This instrument was specifically designed to minimize stock costs and offers customers versatile programming options for use as a U-/I- or Pt100 measuring instrument. Calibration is initially performed at the factory but can also be conducted in the field.

Exactly what you need? Contact us here

Digital Speed-Indicator with one Frequency Input

The MDA 26 digital indicator, designed for speed and frequency measurement, is part of a series of digital panel instruments that provide direct process value display or programmable indirect indication.

The incorporated software enables intuitive menu-based programming and operation.

This instrument is versatile and can be used as either a frequency or speed-measuring device.

Depending on the selection, it supports the connection of various types of sensors, including single-line shaft encoders, non-contact three-wire pickups with PNP or NPN output, magnet-inductive two-wire pickups, NAMUR pickups following DIN 19234 standards, or AC-tacho-generators.

Supply voltages are available for the pickups. By utilizing the programming feature, the input frequency can be assigned to nearly any desired value for indirect indication.

Robust Digital Displays for Real-Time Monitoring

Digital status and measured value displays enhance our sensor range by providing real-time visualization of recorded parameters. Designed for harsh environments, these robust, intuitively readable displays uphold Horn’s tradition of quality and reliability.

Looking for something else? See our selection of digital displays from HORN:

Displays

FAQ

What types of sensors can be connected to the MDA 26?

The MDA 26 supports connections to single-channel shaft encoders, non-contact three-wire pickups with PNP or NPN outputs, magnet-inductive two-wire pickups, NAMUR pickups (DIN 19234), and AC tacho-generators.

How do I program the frequency range on the MDA 26?

The device allows programming of the input frequency in 1 Hz steps, up to a maximum of 50 kHz, through its menu-driven interface.

Can I adjust the number of decimal places displayed?

Yes, the MDA 26's 5-digit LED display can be configured to show zero, one, or two decimal places, depending on your preference.

What is the operating temperature range for the MDA 26?

The device operates effectively within a temperature range of 0°C to +60°C

How is the MDA 26 mounted?

The indicator is designed for panel mounting, fitting into a 96x48 mm cutout with a depth of 127 mm, compliant with DIN 43700 standards.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Digital Indicator Programmable for U/I or Pt100 Input
Display U/I	5- digits red 7- segment- LED display, for U/I 14.2 mm high, the device is able to either indicate no decimals, one decimal, two decimals or three decimals. Changeable at any given time
Display Pt100	same as U/I- display, but 3- digits
Input U/I	as U/I measuring unit alternatively 0 ... +10 V, 0 ... 20 mA or 4...20 mA
Input Pt100	connection of resistance thermometers in 2 step or 3 step controller technique display range: 0 ... +120°C
Resolution	10 bit A/D transformation
Failure U/I	< ±0.2 % from final value of measuring range ±1 digit
Failure Pt100	< ±1 °C ±1 digit
Operation	by three elastic push- buttons, which are inserted in the removable front glass or from the front side. Material EPDM, to a great extent insensitive against mineral oils, solvents and acids
Supply voltage	230 VAC (switchable to 115 VAC) +10 %...-20 % 50...60 Hz or 24 V DC +30 % … -25%
Power consumption	max. 5 VA respectively 5 W
Working temperature	0 ... +60°C
Storage temperature	-10 ... +80°C for relative humidity < 90 % non- condensing
Protection degree	IP 64 front plate against housing, IP 00 housing and terminals
Terminals	plug-in 15- poles screw-terminals 0.2 ... 2.5 mm2 according to IEC 947-7-1

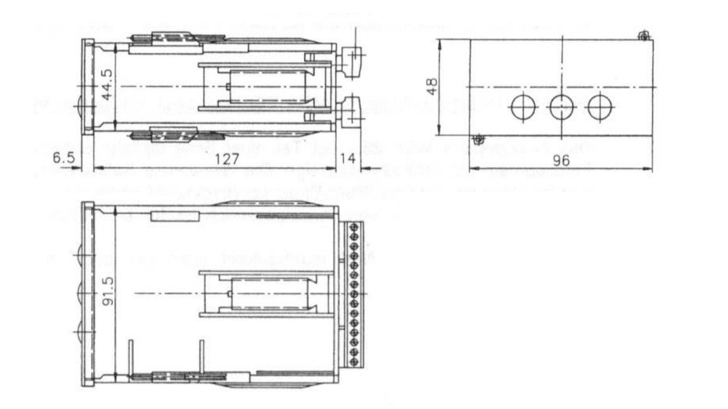

Mounting case	96x48 mm, l = 127 mm, according to DIN 43700, with fixed mounting elements and non-glare front glass, upon request with company logo, mounting with possibility of combination with other units, patent no. 3925633
Interference protection	The standards of the EMC for the industrial use are fulfilled. More information material upon request
Measuring range	in correspondence with option ‘operation' reversible to min./max. measuring value display
Switch-output	up to four relay contacts, switch mode normally open or normally closed and hysteresis programmable
Relay data	max. switch load 60W, 125VA max. switch voltage 220 VDC, 250 VAC max. switching current 2A DC/AC max. current 3A DC/AC max. cycles 10⁶ contact material gold plated silver switching time approx. 3 ms
Switch status	indicated by red Ø 3 mm LED
Analog output	0/4 ... 20 mA max. burden 500 Ω or 0 ... +10 V max. 20 mA load. Range programmable. Version with galvanic isolation from the measuring signal and the supply voltage upon request
Data memory	Memory of max. 150 events in the eprom with data conservation > 40 years, upon request together with internal buffered real time clock
Reset or Holdinput	by optocoupler, galvanic isolated
Material: Housing and back side	glass-reinforced bayblend T 88-2N with best mechanical characteristic features, colour black, UL-standard 94 V 1
Material: Front glass	red, transparent polycarbonate, dull, coated
Material: Fixing screw	V 2 A stainless

Digital Speed-Indicator with one Frequency Input
Display	5- digits red 7- segment- LED display, 14.2 mm high indication, the device is able to indicate no decimals, one decimal or two decimals. Changeable at any given time
Input	optionally either from single-channel shaft encoders, non-contact three- wirepickups with PNP or NPN output, magnet- inductive two- wire transmitters, Namur pickups according DIN 19234 or AC- tacho-generators
Frequency range	freely programmable in 1 Hz steps up to maximum 50 kHz
Failure	< ±0.5 % from final value of measuring range ±1 digit
Supply voltage for pickup	15 VDC max. 30 mA for three-wire pickup or 8 V / 1kΩ for Namur pickup
Operation	by three elastic push- buttons, which are inserted in the removable front glass or from the front side. Material EPDM, to a great extent insensitive against mineral oils, solvents and acids
Supply voltage	230 VAC (switchable to 115 VAC) +10 %/-20 % 50...60 Hz or 24 VDC +30 %/-25%
Power consumption	max. 5 VA respectively 5 W
Working temperature	0 ... +60°C
Storage temperature	-10 ... +80°C for relative humidity < 90 % non- condensing
Protection degree	IP 64 front plate against housing, IP 00 housing and terminals
Terminals	plug-in 15- poles screw-terminals 0.2 ... 2.5 mm2 according to IEC 947-7-1
Mounting case	96x48 mm, l = 127 mm, according to DIN 43700, with fixed mounting elements and non-glare front glass, upon request with company logo, mounting with possibility of combination with other units, patent no. 3925633
Interference protection	The standards of the EMC for the industrial use are fulfilled. More information material upon request
Switch-output	up to four relay contacts, switch mode normally open or normally closed and hysteresis programmable
Relay data	max. switch load 60W, 125VA max. switch voltage 220 VDC, 250 VAC max. switching current 2A DC/AC max. current 3A DC/AC max. cycles 10⁶ contact material gold plated silver switching time approx. 3 ms
Switch status	indicated by red Ø 3 mm LED
Analog output	0/4 ... 20 mA max. burden 500 Ω or 0 ... +10 V max. 20 mA load. Range programmable. Version with galvanic isolation from the measuring signal and the supply voltage upon request
Data memory	Memory of max. 150 events in the eprom with data conservation > 40 years, upon request together with internal buffered real time clock
Reset or Holdinput	by optocoupler, galvanic isolated
Material: Housing and back side	glass-reinforced bayblend T 88-2N with best mechanical characteristic features
Material: Front glass	red, transparent polycarbonate, dull, coated
Material: Fixing screw	V 2 A stainless
