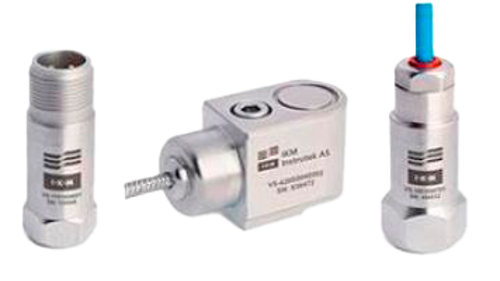

Group Vibration Sensor

IKM Instrutek produce high quality vibration sensors. The sensors are used worldwide in the field of offshore, maritime, hydropower and industrial sectors. There are solutions for both online and offline vibration measurement which we can help you with to find the solution that suits you best.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

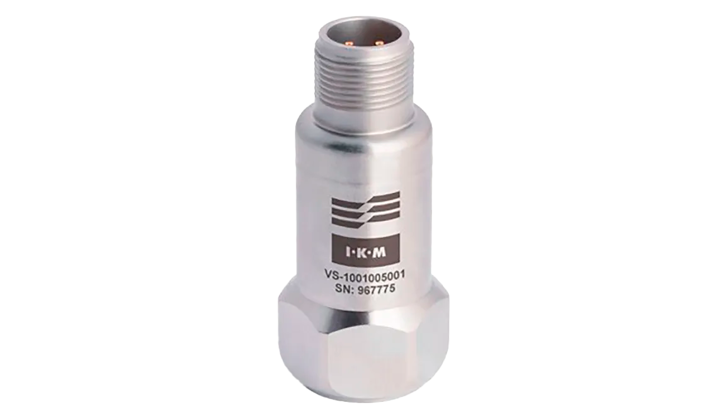

Insatech IKM VS100

IKM VS-100 Accelerometer, 100MV/G

VS-100 series is a 2-pin accelerometer of high quality. Available with or without integrated cable.

Technical information:

  • Sensitivity: 100 mV / g
  • Top exit connector
  • Lifetime warranty and calibration certificate
  • Assembly with metric thread
  • Measuring range: +/- 80g

Product Number: IKM-VS100X1005006

IKM VS-160S Piezo Velocity Sensor

The VS-160 Series is a premium 2-pin speed sensor. Available with or without integrated cable

Technical information:

  • Sensitivity: 25mV / mm / s
  • Side exit connector
  • Lifetime Warranty and Calibration Certificate
  • Mounting with metric bolt
  • Measuring range: 250 mm / s

Product Number: IKM-VS160S0255006

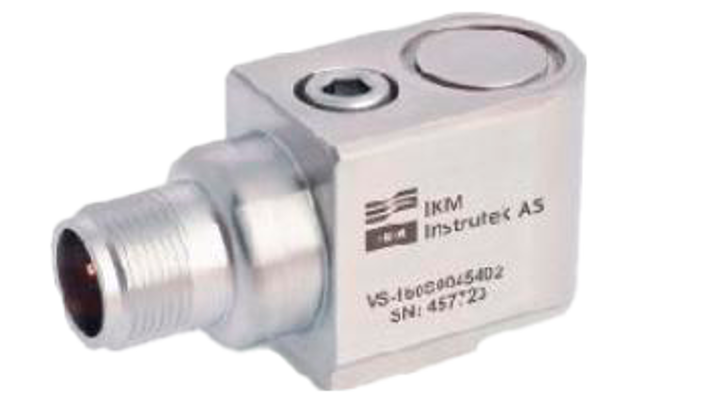

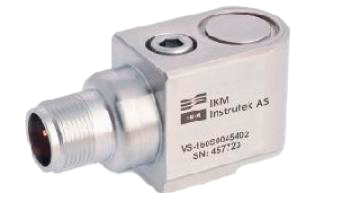

Insatech IKM VS 160S

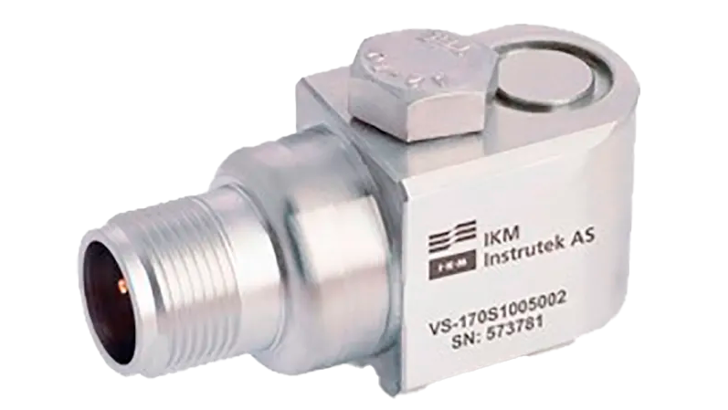

Insatech IKM VS 170S

IKM VS-170S Accelerometer 100 MV/G

The S-170 Series is a premium 2-pin accelerometer. Available with or without integrated cable. See data sheet for the possible frequency ranges and sensitivity. Ideal for use for industrial purposes.

Technical information:

  • Side exit connector
  • Lifetime Warranty and Calibration Certificate
  • Mounting with metric bolt
  • Measuring range: +/- 80g

Product Number:  IKM-VS170S1005006

IKM VS-420S Loop Power Sensor, 4-20MA

VS-420 Series is a 2-pin loop power accelerometer of high quality. Available with or without integrated cable.See data sheet for the possible frequency ranges and sensitivity. Provides 4-20mA signal directly to the PLC or control systems. Ideal for use for industrial purposes.

Technical information:

  • 4-20mA output signal
  • Side exit connector
  • Lifetime Warranty and Calibration Certificate
  • Mounting with metric bolt
  • Loop feeder with 15-30 VDC

Product Number:  IKM-VS420S0205006

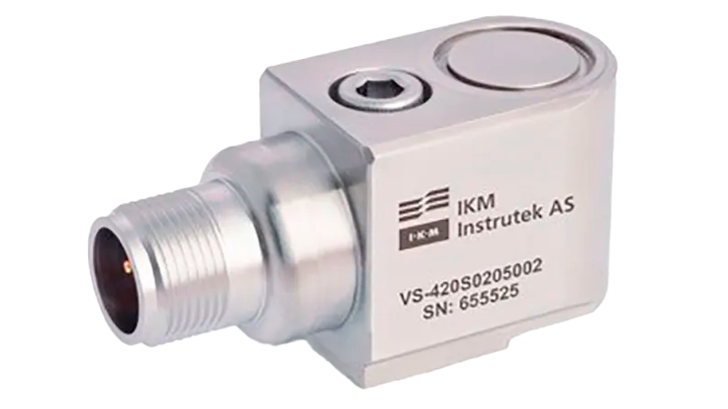

Insatech IKM VS 420S
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Specifications & Manuals

  • Datasheet - VS-100 Accelerometer- IKM
    English | pdf
  • Datasheet - VS-170S Premium accelerometer - IKM
    English | pdf
  • Datasheet - VS-420S Accelerometer - IKM
    English | pdf
