MHC-Memo Pro - the ultimate tool for condition monitoring, with full acoustic emission spectrum capture and analysis capability with the included software. Route logging facility for multiple plant routes.
For sales or commercial inquiries please contact us at marine@insatech.com.

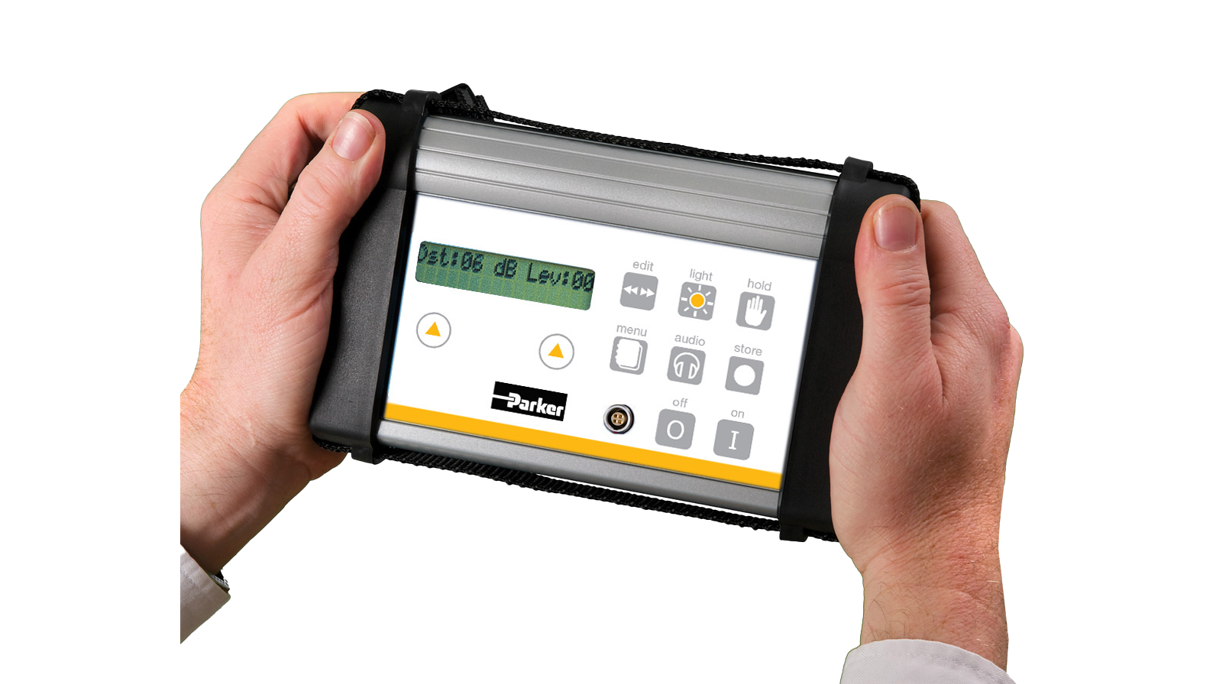

The MHC-Memo Pro is a top of the range hand-held device, featuring enhanced analysis capability, for those looking for an instrument to assist their condition monitoring program.
The MHC-Memo Pro provides information related to the mechanical condition of rotating machinery.
The MHC-Memo Pro can be applied to a wide variety of machine types including motors, pumps, fans, gearboxes and shaft support bearings. It can be useful in the detection of bearing faults (including faults on plain, ball and roller bearings) and pitting on gear teeth provided there is a good sound path to the gearbox casing.
Supplied in a rugged case for protection.
Memo Pro comes with noise protection headphones, communications leads, a standard and a 225 mm extension probe and a software CD. Additionally.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FG-H16111-KH | MHC Memo Pro Instrument |
||||||||||||||||||
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 205 (w) x 130 (h) x 40 (d) mm |
||||||||||||||||||
| Weight | 800g (main unit only with batteries) |
||||||||||||||||||
| Operating Temperature | 0 - 50°C |
||||||||||||||||||
| Measurement Std | Distress®, dB Level |
||||||||||||||||||
| Measurement Slo | Peak, Intensity, Extent®, dB Level |
||||||||||||||||||
| Dynamic Range | 92 dB (40,000:1) |
||||||||||||||||||
| Audio Out | Hi / Lo ranges |
||||||||||||||||||
| Earphone / defenders | Included |
||||||||||||||||||
| Display | Backlit LCD alphanumeric, 2 lines by 16 characters |
||||||||||||||||||
| Keypad | 10 keys, sealed membrane |
||||||||||||||||||
| Power Save | After 8 minutes |
||||||||||||||||||
| Battery info | 4 x AA (LR6) - 26 hours with backlight off (NiMH supplied), 34 hours alkaline |
||||||||||||||||||
