PM205 Digital Pressure Meter Screen on

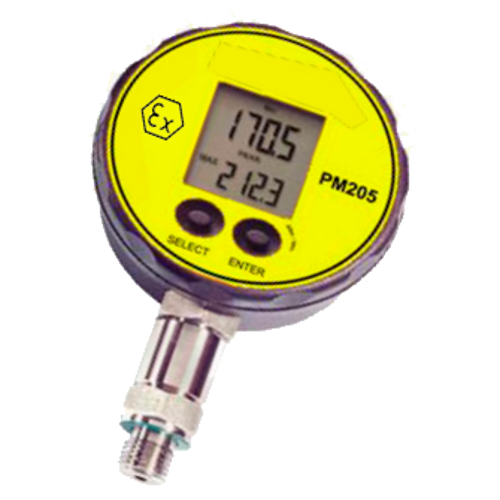

Digital Pressure Meter PM205 (EX)

The PM205 (EX) Series Digital Pressure Meter from IKM Instrutek is an excellent option for pressure testing, which is  ATEX approved. This digital pressure gauge finds its specific utilization in marine industry, onboard ships and mobile offshore units. Type approved by DNV-GL for use onboard ships.

Key advantages:

  • ATEX approved
  • High reliability
  • Type Approved by DNV-GL
  • 1000 hours operation.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

How do You Benefit?

The Digital Presure Meter PM205 (EX) has several advantages you can benefit from:

  • Versatile Range: Choose from a wide range spanning from -1 to 1000 bar, with the option to switch between bar and psi as needed.

  • Exceptional Accuracy: Achieve precision with an accuracy level of less than 0.1% FS.
  • Extended Battery Life: Enjoy up to 1000 hours of continuous operation, with an automatic power-off feature to conserve energy.

  • Built to Last: Built for reliability and resilience, this device is highly resistant to shocks.

  • Robust Protection: Designed with a robust IP65 protection class, ensuring durability in challenging environments.

  • Multi-Purpose Excellence: Ideal for both marine and industrial applications, offering versatility across various sectors.
  • ATEX Approval: Intrinsically safe version, 94/9/CE, which means the the EEx ia version of PM205 incorporates an additional protection switch.

  • DNV-GL Approval: Type approved by DNV-GL, making it compliant for use on board ships.
IKM PM205

Good Performance at Low Cost

Experience the PM205 (EX)'s exceptional ZERO function, empowering you to establish a new zero reference value, effectively compensating for barometric pressure fluctuations. This digital pressure meter boasts an internal battery, ensuring 1000 hours of uninterrupted operation in MANO-Mode, thanks to the AUTO SWITCHOFF feature that activates after 15 minutes of inactivity.

Need our help? Contact us now!

Unlocking Customer Benefits: PM205 Offers Two Modes

MANO-Mode:
The PM205 (EX) system performs pressure measurements at a rapid rate of twice per second, providing real-time feedback. The top display showcases the current pressure reading, while the lower display presents the maximum or minimum pressure recorded since the last RESET.

PEAK-Mode:
In this mode, pressure is meticulously measured a staggering 5,000 times per second, with the results displayed twice per second. This high-frequency precision ensures that you get accurate and timely pressure information at your fingertips.

Exactly what you need? Contact us here.

IKM Logo Overview

Enhancing Precision and Versatility for You

Designed for the marine industry, including ships and mobile offshore units, as well as a wide range of industrial applications, the PM205 (EX) is your trusted tool. With all relevant certifications included, it serves as your invaluable frontline instrument for precise pressure calibration and measurements. Elevate your precision with the PM205 (EX).

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Range

From -1 to 1000 bar

  • -1 .. 3 bar
  • -1 .. 30 bar
  • -1 .. 60 bar
  • 0 .. 300 bar
  • 0 .. 700 bar
  • 0 .. 1000 bar


Accuracy RT (room temperature)

< 0.1 % FS
Total Error Band (0 to 50 °C)

< 0,2 % FS
Storage-/ Operating Temperature

-20 to 70 °C / 0 to 50 °C
Compensated Temperature Range

0 to 50 °C
Power supply

3.0V type CR2430
Auto power off

15 min
Battery life

MANO-Mode: 1000 hours continous operation

PEAK-Mode: 150 hours of continous operation
Standard process coupling

¼” BSP MALE, Swivel
Dimensions

118mm (h) x 42mm (d), ø76mm (w)
Weight

0,21 kg
Display

LCD
Selectable read out

bar, mbar/hPa, kPa, MPa, PSI, kp/cm2
Peak function

Max. or Min.
Zero function

Yes
Readings per second

5000 (PEAK mode)
Protection class (CEI 529)

IP65
Intrinsically safe version, 94/9/CE

Classification: II 1 G EEx ia IIC T6 or T5
Certification File: LCIE 01 ATEX 6001 X
The EEx ia version of PM205 incorporates an additional protection switch. Functions, ranges and accuracy are identical to the standard version.
