Tanker FPSO Calibration Kit Intro

Tankers/ FPSO Calibration Kit

The Tankers/ FPSO Calibration Kit From IKM Instrutek has everything you need in one case. The test case comes with all the instruments you need, together with all the certificates required. A full management system, together with our rotation system makes sure your instruments are traceable, calibrated, and certified at all times.

Key benefits for you:

  • Everything in one case
  • Calibration onboard where you need it
  • Adjustable to your needs
  • Easy-to-use
  • SOLAS compliance.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Precision at Sea: Calibrated Instruments Where Your Vessel Needs Them

We bring the calibration service right to your vessel's location with this Calibration Kit that can be adjusted to your specific needs. This calibration makes it possible for you to ensure that the instruments used on your vessel are not only calibrated but also traceable and certified for accuracy.

To achieve this, we collaborate with IKM Instrutek who has a state-of-the-art calibration laboratory, equipped with the latest technology and staffed by experts who are dedicated to maintaining the highest standards. However, in specific cases, we can also arrange for calibration services to be conducted on-site, tailor-made to meet your vessel's unique requirements.

Calibration Service Meets SOLAS Requirements

One of the critical calibration services IKM Instrutek offers is the Basic test case MTS-500, which is specifically designed to cover E0 requirements outlined in SOLAS (Safety of Life at Sea) regulations.

This comprehensive testing procedure ensures that your vessel's instruments meet the stringent safety and accuracy standards necessary for maritime operations.

Our commitment is to provide you with peace of mind, knowing that the instruments on your vessel are in optimal condition, reliably calibrated, and ready to support safe and efficient operations throughout your voyages.

Contact Our Service Team Here

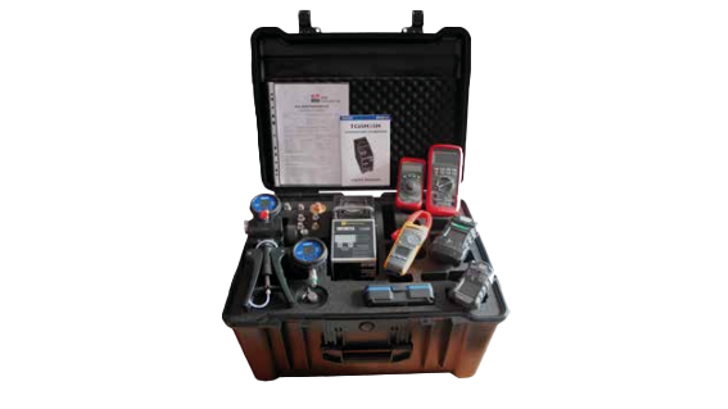

Tanker FPSO Calibration Kit

Contents of the Calibration Kit

The Tankers/ FPSO Calibration Kit from IKM Instrutek includes everything you need in one case.

Thus, the calibration kit contains:

  • 5TC6501-00: Temperature Calibrator TC65, 30 - 650°C
  • 5PM2050700EEX: Pressure Calibrator PM205, 700 bar Ex
  • 5PM2050060EEX: Pressure Calibrator PM205, 60 bar Ex
  • FL28IIEX: Intrinsically Safe True-RMS Multimeter
  • FL707Ex: Intrinsically Safe 707Ex Loop Calibrator
  • FL376: Current Clamp AC / DC True RMS. 0-1000A with iFlex
  • HIIR4056-20: Insulation tester 50 til 1000V
  • 5MTS68HP60H: Calibration Kit (68) for TC/PM, -0,95 to 700 bar
  • INADAPTERKIT3: M16x2 Female to 1/4”BSP Male for Danfoss test manifold
  • SK002: Test flange Ø 40mm

Need our help? Contact us now!

Additional Options

The Calibration Kit can also be extended to be used for personal gas detection, which entails that you add the following parts to your kit:

  • MSA10178570: AltAir 4XR, LEL(4.4%), O2, H2S, EUROPEAN power supply, ATEX
  • MSA10065833: Sampling line PU, Conductive 5m
  • MSAD6071039:
    • Floating probe w/o line
    • GT Gas-Tester 5140
    • Tubes, please specify (large selection available) :
    • DT Benzene-5 ETW, 10/pack.
    • DT Methanol ETW, 10/pack.

Exactly what you need? Contact us here.

IKM Logo Overview
Accessory Parts
5MTS61-CASE

Case type 61, black, including foam and lidpocket.

5MTS68-CASE

Case type 68, black, including foam and lidpocket.

5PM61-CASE

Case type 61, black, including foam and lidpocket.

TC-CASE

Case for TC65M/TC15M.

IN3PPM70150

Pressure pump, hydraulic 0 to 700 bar.

DRPV-411 & DRPV-411-115

DRPV-411: Pressure pump, pneumatic -0,95 to 60 bar

DRPV-411-115: Reservoir, 100cc hydraulic for 5PV-411 (hydraulic 700 bar).

IN3PPM60050

Pressure pump, pneumatic -0,95 to 60 bar.

IN3PPM02050

Pressure pump, pneumatic -0,9 to 3 bar.

INP00408

Hose, test kit, 1m M16x1,5mm, 700bar.

IN3SHD00112

Hose, test 1m M16x1,5mm, 700bar.

IN3DHD00211

Test connector M16x1,5-1/4" form CSMK 15-G.

IN3FHD04511

Fitting nipple, 1/4"-1/4" female.

INADAPTERKIT1

Adapter kit BSP-NPT, Carbon Steel:

  • ¼” BSP M to 1/8” NPT F
  • ¼” BSP M to 1/4” NPT F
  • ¼” BSP M to 3/8” NPT F
  • ¼” BSP M to 1/2” NPT F

INADAPTERKIT2

Adapter kit BSP-BSP, Carbon Steel:

  • ¼” BSP M to 1/8” BSP F
  • ¼” BSP M to 3/8” BSP F
  • ¼” BSP M to 1/2” BSP F

INADAPTERKIT4

Adapter kit BSP-BSP, Swivel, 3/8"M-1/4"M.

INADAPTERKIT4A

Adapter kit BSP-BSP, 3/8"M-1/4"F.'

Adapterkit4C

Adapter kit BSP-BSP, Swivel, 1/4"M-1/4"M.

P00484

Oil bottle 250ml, empty.
