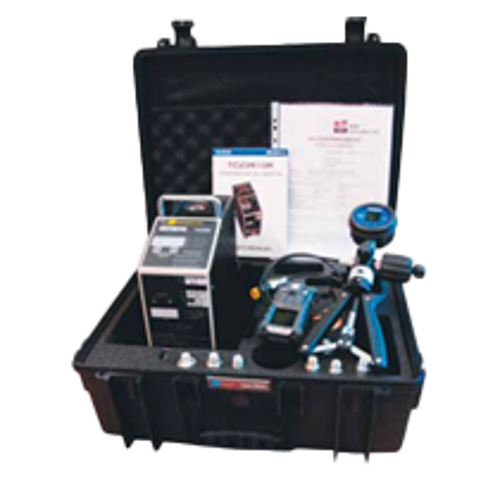

The Bulk / Cargo / Container Calibration Kit has everything you need in one case. The test case comes with all the instruments you need, together with all certificates required.
Key benefits for you:
All the instruments you need, together with all certificates required
Adjustable to your needs
Delivery within 1 week
3-year factory calibration – no recalibration needed
We deliver directly and globally to end-users, agents, and resellers. Contact us at quotes@insatech.com.
Precision at Sea: Calibrated Instruments Where Your Vessel Needs Them
We bring the calibration service right to your vessel's location with this Calibration Kit that can be adjusted to your specific needs. This calibration makes it possible for you to ensure that the instruments used on your vessel are not only calibrated but also traceable and certified for accuracy.
To achieve this, we collaborate with IKM Instrutek who has a state-of-the-art calibration laboratory, equipped with the latest technology and staffed by experts who are dedicated to maintaining the highest standards. However, in specific cases, we can also arrange for calibration services to be conducted on-site, tailor-made to meet your vessel's unique requirements.
Calibration Service Meets SOLAS Requirements

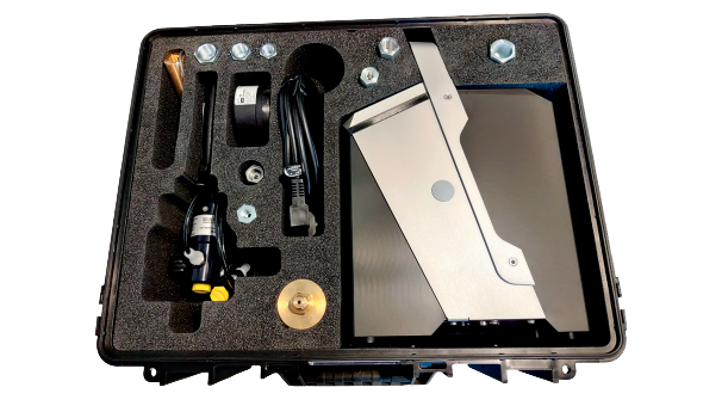

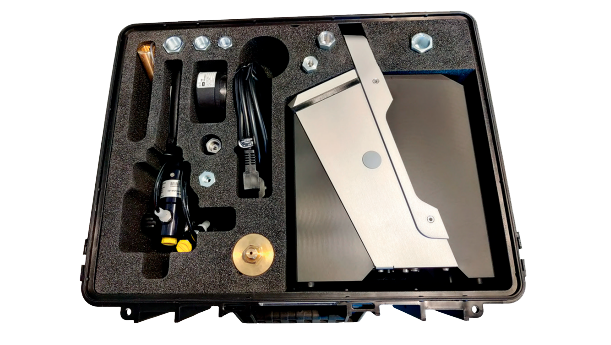

One of the critical calibration services IKM Instrutek offers is the Basic test case MTS-500, which is specifically designed to cover E0 requirements outlined in SOLAS (Safety of Life at Sea) regulations.
This comprehensive testing procedure ensures that your vessel's instruments meet the stringent safety and accuracy standards necessary for maritime operations.
Our commitment is to provide you with peace of mind, knowing that the instruments on your vessel are in optimal condition, reliably calibrated, and ready to support safe and efficient operations throughout your voyages.

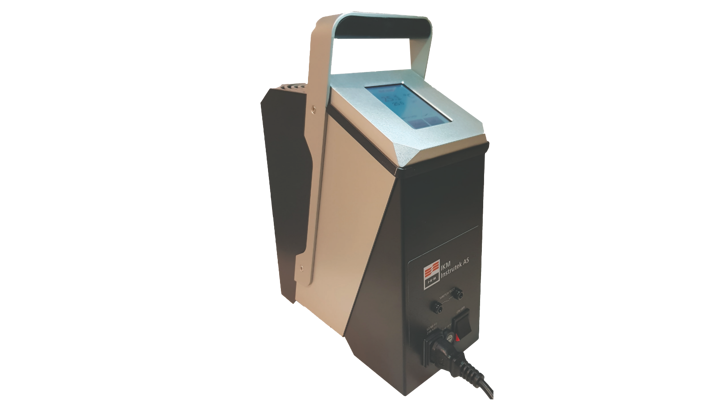

Environmental and regulatory requirements are important parts of QA-systems that has to be implemented on-board. Our portable temperature calibrators cover temperatures up to 650°C. Removable insert for increased flexibility.

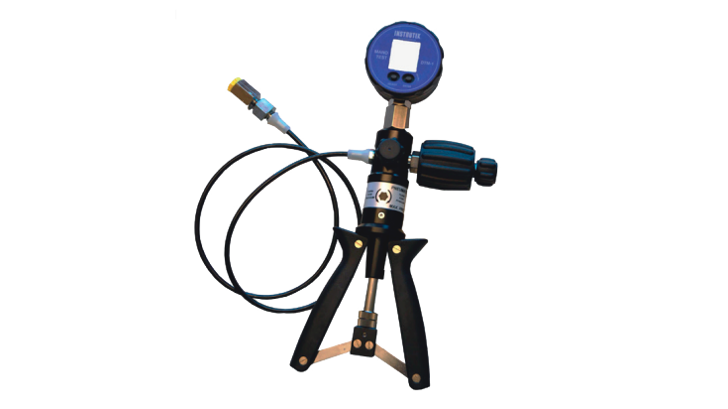

This Pressure calibrator has been introduced to complement an already extensive range of pressure calibration products and can be used for calibration checks on pressure transmitters, pressure switches, indicators, recorders and controllers.
Case type 61, black, including foam and lidpocket.
5MTS68-CASE
Case type 68, black, including foam and lidpocket.
5PM61-CASE
Case type 61, black, including foam and lidpocket.
TC-CASE
Case for TC65M/TC15M.
IN3PPM70150
Pressure pump, hydraulic 0 to 700 bar.
DRPV-411 & DRPV-411-115
DRPV-411: Pressure pump, pneumatic -0,95 to 60 bar
DRPV-411-115: Reservoir, 100cc hydraulic for 5PV-411 (hydraulic 700 bar).
IN3PPM60050
Pressure pump, pneumatic -0,95 to 60 bar.
IN3PPM02050
Pressure pump, pneumatic -0,9 to 3 bar.
INP00408
Hose, test kit, 1m M16x1,5mm, 700bar.
IN3SHD00112
Hose, test 1m M16x1,5mm, 700bar.
IN3DHD00211
Test connector M16x1,5-1/4" form CSMK 15-G.
IN3FHD04511
Fitting nipple, 1/4"-1/4" female.
INADAPTERKIT1
Adapter kit BSP-NPT, Carbon Steel:
¼” BSP M to 1/8” NPT F
¼” BSP M to 1/4” NPT F
¼” BSP M to 3/8” NPT F
¼” BSP M to 1/2” NPT F
INADAPTERKIT2
Adapter kit BSP-BSP, Carbon Steel:
¼” BSP M to 1/8” BSP F
¼” BSP M to 3/8” BSP F
¼” BSP M to 1/2” BSP F
INADAPTERKIT4
Adapter kit BSP-BSP, Swivel, 3/8"M-1/4"M.
INADAPTERKIT4A
Adapter kit BSP-BSP, 3/8"M-1/4"F.'
Adapterkit4C
Adapter kit BSP-BSP, Swivel, 1/4"M-1/4"M.
P00484
Oil bottle 250ml, empty.
Marine Calibration Kit FAQs
Why Is Calibration Important to Vessels in Operation?
The zero point, stability and the acccuracy of measuring devices degrade over time, from the fresh water temperature sensors to the engine and HVAC pressure transmitters. This is typically caused by wear and tear, but can also occur from electrical or mechanical shock. Depending on the type of sensor, environment and placement, it may drift rapidly or over a longer period of time. At the end of the day you have to perform your calibrations if you want to trust your instruments on board.
What Is a Calibration?
A calibration is a comparison between a known measurement (a more accurate standard) and the measurement using your instrument.
A general rule of thumb is that the standard should be ten times more accurate than your own instrument. However, accuracy ratio of 3:1 may also be used in some cases. The objective of a calibration is simply to determine the accuracy of your measuring device.
When Should You Calibrate?
Your instrument should be calibrated:
According to recommendation of the manufacturer.
According to class demands, IOPP certification etc.
After any electrical or mechanical shock.
Periodically (annually, quarterly, monthly).
Hidden costs and risks associated with un-calibrated devices could be much higher than the cost of the calibration.
What is the Marine Calibration Kit?
The Marine Calibration Kit is a portable, all-in-one solution developed for calibrating sensors and instruments onboard vessels. It includes equipment for temperature, pressure, and electrical signal calibration, allowing fast, accurate testing in compliance with ISO and class requirements.
Can I use the kit without special training?
Yes, the kit is designed to be user-friendly with intuitive equipment and documentation.
How is the calibration data documented?
The multifunction calibrator logs calibration results electronically. Data can be downloaded via USB, ensuring traceability and easy reporting for audits or compliance documentation.
Can I customize the calibration kit for specific needs?
Absolutely. We offer custom configurations depending on your calibration scope, including options for lower or higher temperature ranges, differential pressure, and specific vessel applications.
Is the kit suitable for harsh marine environments?
Yes, it comes in a robust, waterproof Peli™ case designed to withstand marine conditions, including vibrations, humidity, and salty air.
