Gearbox HW and AB from Ghibson
Ghibson gearbox is available in 2 different versions, model HW (Aluminium body) and model AB (Cast Iron body), and in standard sizes from DN 40 to DN 800. Other sizes on request.
Features:
For sales or commercial inquiries please contact us at marine@insatech.com.

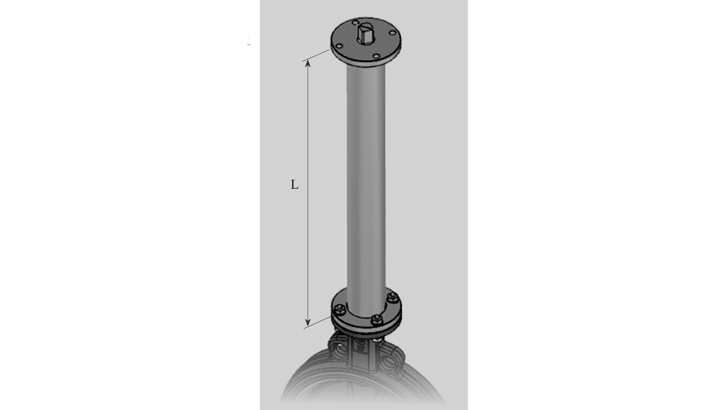

When needed, you have the option to lengthen the valve shaft as shown in the diagram.
Just remember to inform about "L" measure when ordering.
The construction is composed of carbon steel with a protective coating, and stainless steel is available upon request.
A waterproof valve shaft extension enables easy adjustment and extension of the valve shaft, which can be useful in the marine industry.
| Technical Specifications for model HW | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| House | Aluminum |
||||||||||||||||||
| Worm gear | Steel |
||||||||||||||||||
| Tooth segment | SG iron |
||||||||||||||||||
| Axle | Stainless steel |
||||||||||||||||||
| Handwheel | Steel |
||||||||||||||||||
| Protection class | IP65 |
||||||||||||||||||
| Temperature | -20 °C to -120 °C (Higher and lower temperature on request) |
||||||||||||||||||
| Technical Specifications for model AB | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| House | Cast iron GG25 |
||||||||||||||||||
| Worm gear | Steel |
||||||||||||||||||
| Tooth segment | SG iron |
||||||||||||||||||
| Axle | Stainless steel |
||||||||||||||||||
| Handwheel | Steel |
||||||||||||||||||
| Protection class | IP67 |
||||||||||||||||||
| Temperature | -20 °C to -120 °C (Higher and lower temperature on request) |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
