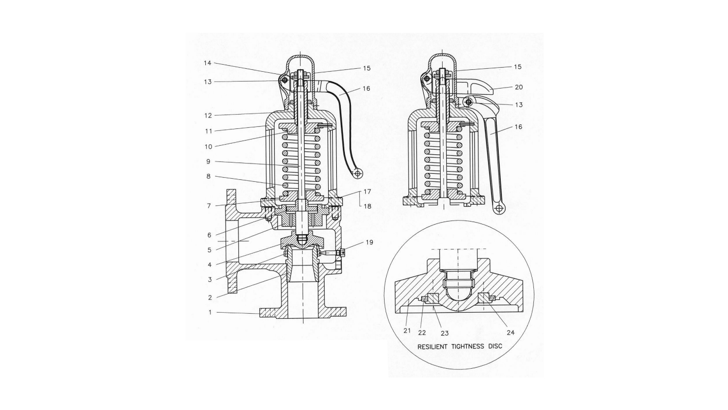

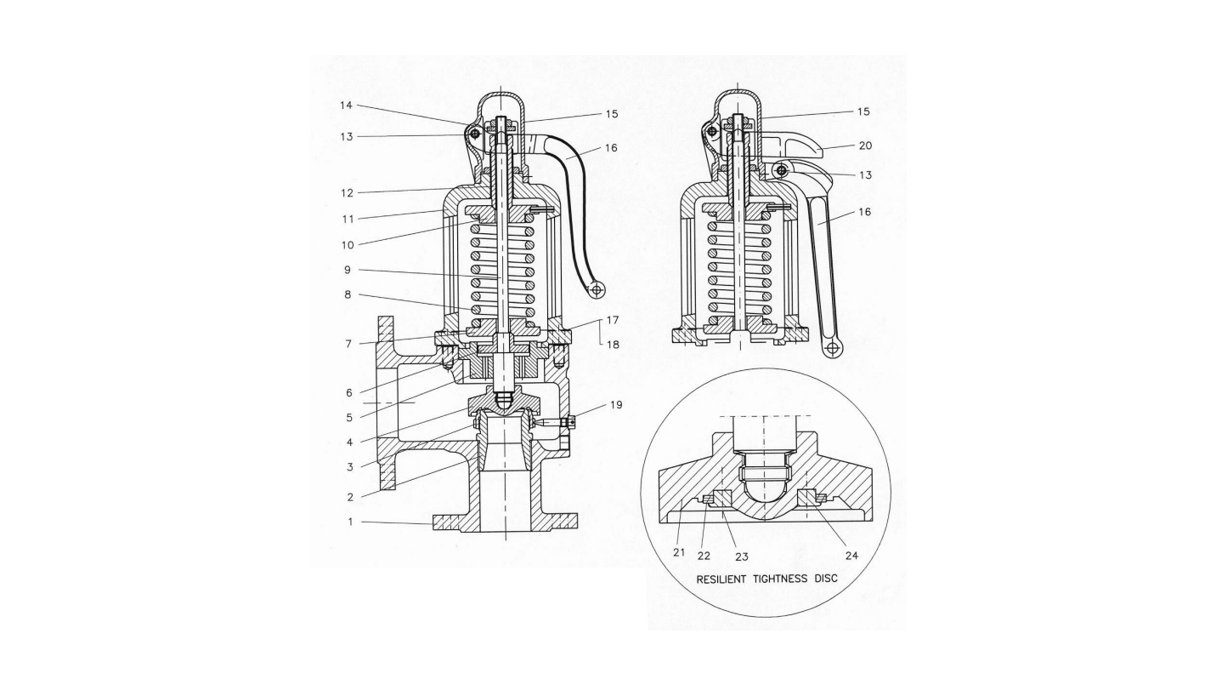

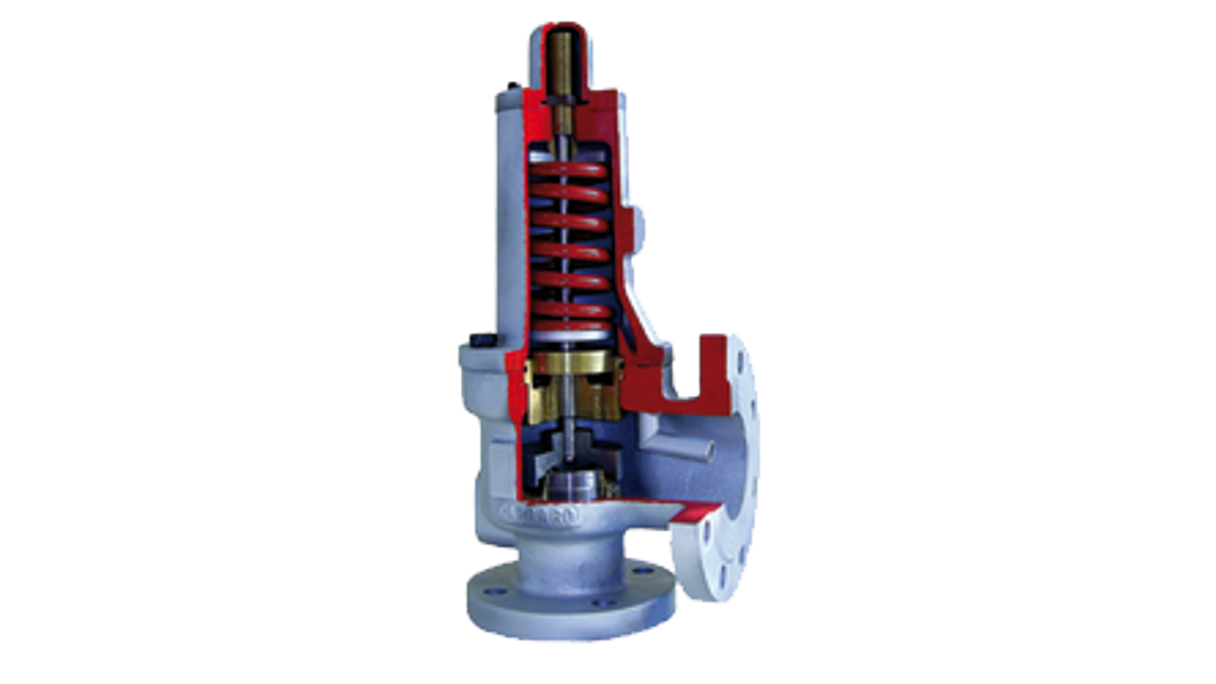

Carraro safety valve type CS 50/80/91 in compact design. Type CS 50 and CS 80 with open spring housing for air, steam and non-hazardous gases and type CS 91 with closed spring housing for liquids, hazardous vapors and gases. Can be supplied with cap / hood or handle.
For sales or commercial inquiries please contact us at marine@insatech.com.
The safety valves which are presented in this catalogue have been designed for high quality performance and precision during operaion. This ensures high safety level for marine installations.
The advantage of these valves is that they operate with a very small over pressure. This enables, in case of muliple valve installaion on the same boiler, to have a different set pressure for each valve, whilst remaining within the 10% over pressure permited by the boiler regulaions. Consequently, during operaion, only the valves strictly necessary will open.

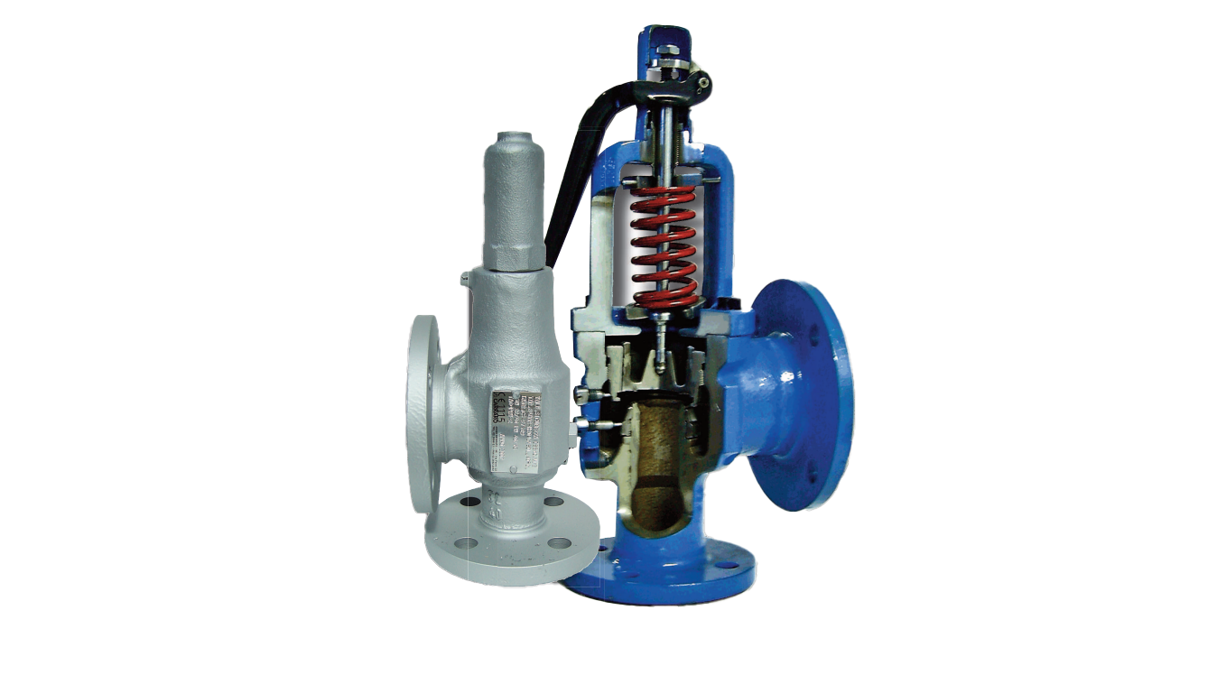

Both CS and CSV series are approved by the Italian standard insitute ISPESL.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Function | On / off (POP action) |
||||||||||||||||||
| Size |
|
||||||||||||||||||
| Connection | Flanges (ANSI or PN) |
||||||||||||||||||
| Pressure step | Max ANSI 900, PN 16 - 160 |
||||||||||||||||||
| Materials | Cast iron, steel, stainless steel, or alloy |
||||||||||||||||||
| Trim material | Stainless steel (standard) |
||||||||||||||||||
| Set pressure | From 1 to 130 bar(g) |
||||||||||||||||||
| Inlet pressure | Max. Depending on orifice (opening) |
||||||||||||||||||
| Temperature |
|
||||||||||||||||||
